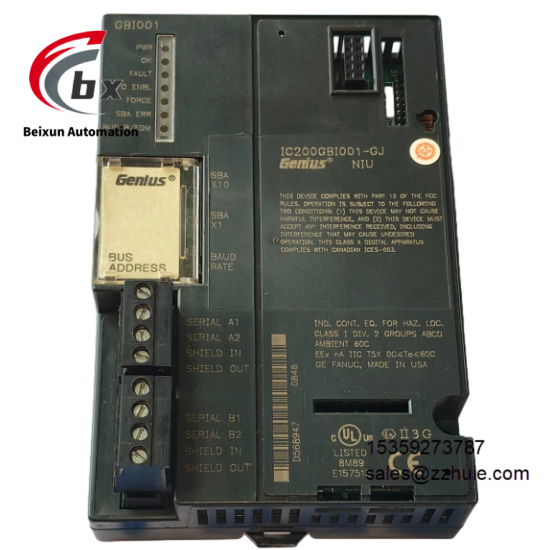

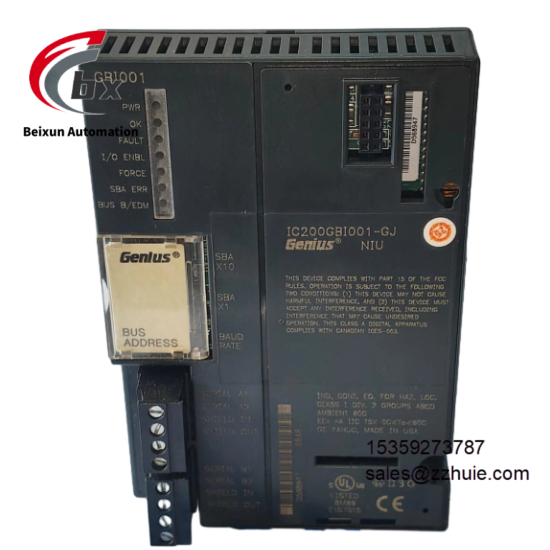

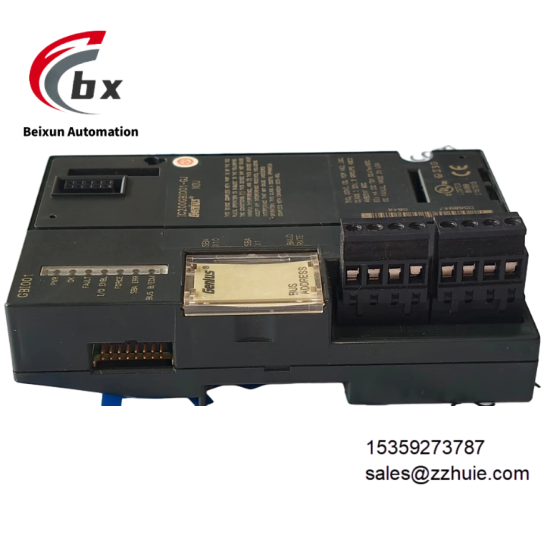

GE IC200GBI001 Bus interface unit module

GE IC200GBI001 Bus interface unit module

Specific Parameters

Bus Type Genius Industrial Bus

Bus Address Range 0-31

Communication Baud Rate 153.6Kbaud Extended, 153.6Kbaud Standard, 76.8Kbaud, 38.4Kbaud

Supported Racks Max 8 Remote I/O Racks

Modules per Rack Max 8 I/O Modules

Input Data per Scan 128 Bytes

Output Data per Scan 128 Bytes

Discrete I/O Capacity 1024 Inputs, 1024 Outputs

Analog I/O Capacity 128 Bytes Input, 128 Bytes Output

Operating Voltage 5V@250mA, 3.3V@10mA

Transmission Media Shielded Twisted Pair, Fiber Optic

Operating Temperature Range 0℃ to +60℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20

Installation Method Standard PLC Cabinet Rack Mounting

Product Performance

Bus Communication Performance: Supports standard Genius bus protocol, provides four optional communication baud rates, adapts to different transmission distances and equipment quantity requirements, with stable data transmission without packet loss, large-capacity data interaction per scan, fast response speed and strong real-time performance, meeting the needs of high-speed communication and real-time control in industrial sites.

Expansion Compatibility Performance: Supports cascade expansion of up to 8 remote I/O racks, each rack can carry 8 I/O modules, compatible with all GE VersaMax series I/O modules, and can seamlessly connect to Series 90-70, PACSystems RX7i, RX3i series PLC main control equipment, with flexible networking and adapting to various distributed control system expansion needs.

Redundancy Fault Tolerance Performance: Has dual redundancy capability of hardware and transmission media, supports fully automatic bumpless switching of active and standby links. Single link or single module failure does not affect the overall communication operation, with strong fault self-healing ability, completely eliminating system shutdown caused by communication interruption, and comprehensively improving the operation reliability of distributed systems.

Diagnosis and Operation Maintenance Performance: Built-in enhanced fault diagnosis mode, real-time monitoring of bus status, link communication, rack connection and module operation status, can accurately locate fault points and abnormal causes. With built-in status indicator to visually display operation information, supports remote diagnosis and parameter configuration, simplifying operation and maintenance process and reducing fault troubleshooting cost.

Media Adaptability Performance: Supports two transmission media: shielded twisted pair and fiber optic, which can be flexibly selected according to the industrial field environment. Fiber optic transmission adapts to long-distance and strong interference scenarios, shielded twisted pair adapts to short-distance conventional working conditions, with strong environmental adaptability and excellent anti-electromagnetic interference ability.

Environmental Adaptability Performance: Adopts industrial-grade high-durability components and standardized manufacturing process, adapts to conventional temperature and humidity environment in industrial field, resistant to dust, vibration and electromagnetic interference, can operate continuously and stably for a long time without frequent faults, meeting the all-weather working needs of industrial automation sites.
