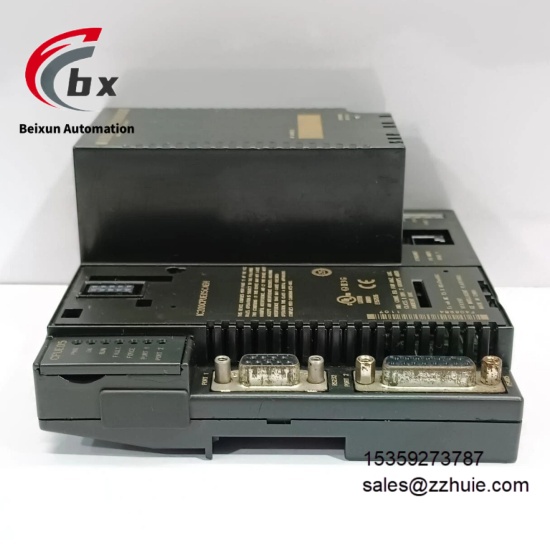

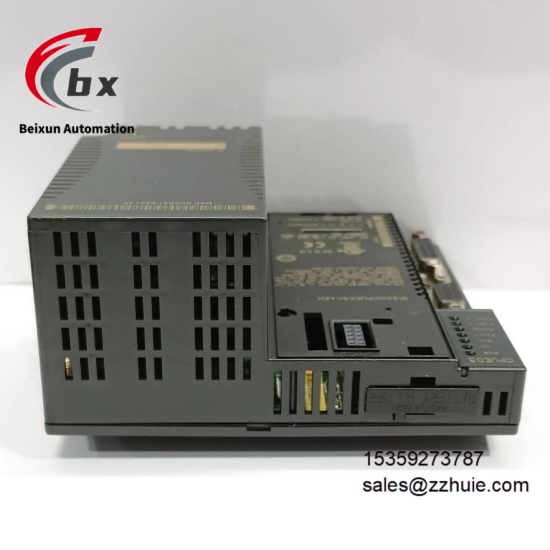

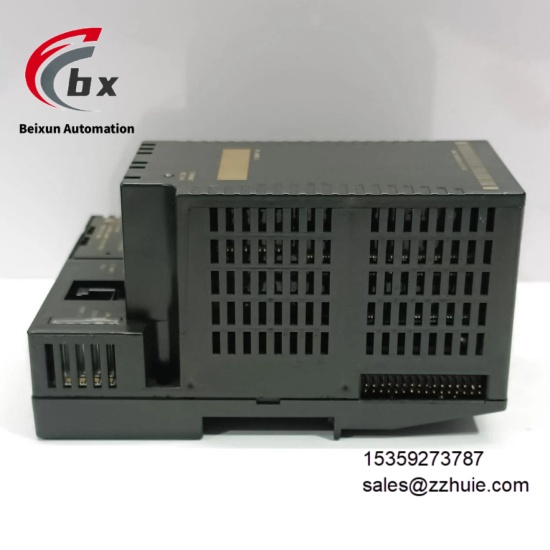

GE IC200CPUE05/IC200CPUE05CAEH Central Processing Unit Module

GE IC200CPUE05/IC200CPUE05CAEH Central Processing Unit Module

Specific Parameters

Operating Voltage 5V (220mA), 3.3V (570mA), requires dedicated power module

Operating Temperature Range 0℃ to 55℃

Storage Temperature Range -20℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Processor Type 32-bit RISC Processor

Configurable Memory 128KB

Boolean Execution Speed 0.8ms/K (typical)

Real-Time Clock Accuracy 100ppm (0.01%) or ±9 seconds/day

I/O Expansion Capacity Supports up to 64 modules, up to 2048 I/O points

Communication Interfaces Built-in RS-232, RS-485, Ethernet Interface (RJ-45, UTP)

Ethernet Data Rate 10Mbps (Half-Duplex/Full-Duplex)

Number of SRTP Server Connections Up to 8

Number of EGD Exchanges Up to 32 (Configuration-Based)

Overall Dimensions 126mm×128mm×69.1mm

Mounting Type Standard 35mm DIN Rail Mounting

Data Backup Supercapacitor (Maintains memory for 1 hour after power failure), Battery Backup (Up to 6 months)

Certification Standards Complies with CE Certification

Product Performance

High-Speed Computing Performance: Adopts 32-bit RISC processor, the boolean execution speed reaches 0.8ms/K (typical), supports floating-point data operations, can quickly complete complex logic operations and multi-task processing without delay or lag, meeting the real-time requirements of small and medium-sized industrial automation control.

High Expansion Performance: Supports up to 64 module expansions, can access up to 2048 I/O points, can flexibly adapt to automation control systems of different scales, and can expand system functions without replacing the CPU module, with a wide range of applicable scenarios.

Multi-Protocol Communication Performance: Built-in RS-232, RS-485 and Ethernet interfaces, supports multiple communication protocols such as SNP slave, RTU slave and EGD, can be seamlessly connected to SCADA, HMI and other industrial automation equipment, realizing real-time data interaction and centralized management and control.

Reliable Data Protection Performance: Equipped with dual backup mechanism of supercapacitor and battery, the supercapacitor can maintain memory data for 1 hour after power failure, the battery backup can protect data for up to 6 months, and the non-volatile flash memory stores programs to avoid data loss caused by unexpected power failure.

Convenient Operation Performance: Supports both automatic configuration and manual programming modes, compatible with programming languages such as Ladder Diagram and Instruction List, equipped with Run/Stop switch and LED status indicators, which can real-time feedback the equipment operation status, facilitating on-site operation and debugging.

Easy Maintenance Performance: Supports online maintenance and fault diagnosis, can quickly locate fault points through local or remote methods, and the modular design is easy to disassemble and replace, shortening maintenance time and reducing operation and maintenance costs.

Stable Operation Performance: Complies with industrial-grade standards and CE certification, has strong anti-interference ability, can operate stably in the operating temperature range of 0℃ to 55℃, adapts to various industrial on-site environments, and operates without faults for a long time.
