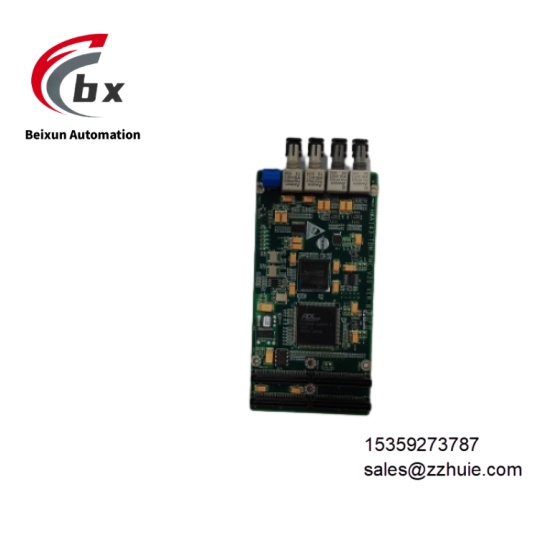

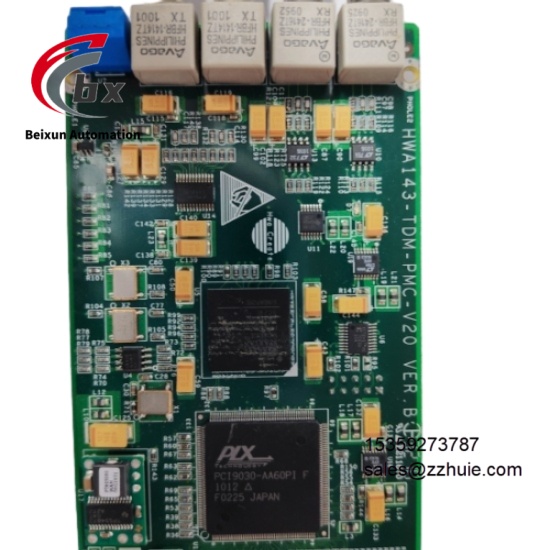

GE HWA143-TDM-PMC-V20 Data acquisition and control module
Specific Parameters
Electrical Parameters
Operating Voltage: 24VDCSampling Rate: 1MHzResolution: 16-bitAnalog Input Channels: 4 vibration input channels, 2 temperature acquisition channels, 1 rotational speed signal input channelAnalog Output Channels: 8 analog output channelsInput Signal Types: Compatible with IEPE accelerometers, piezoelectric vibration sensors, adapted to PT100/PT1000 platinum resistors, supporting encoder signalsInput Signal Range: 0-20mA DC current, 0-10VDC DC voltageSynchronization Accuracy: ±10nsCommunication Protocols: IEC 61850, DNP3.0, Modbus TCP/IPStorage Capacity: 8GB industrial-grade memory chipProtection Features: Overvoltage protection, short circuit protection, channel isolation protectionCertification Standards: Compliant with CE, UL, RoHS, ATEX Zone 2 standards
Mechanical Parameters
Overall Dimensions: Compatible with standard industrial racks, compact structureWeight: Approximately 0.7kgMounting Method: Rack-mounted installationHousing Material: Conformal coated circuit boards, ruggedized terminal blocks, anti-electromagnetic interferenceConnection Method: Plug-in terminal blocks, standard Ethernet interfacesProtection Rating: IP20Status Indication: Power (green), operation (yellow), communication (blue), fault (red) LED indicators
Environmental Parameters
Operating Temperature: -40℃ to 85℃, operation without derating over the entire temperature rangeStorage Temperature: -40℃ to 100℃, meeting extreme storage and transportation requirementsRelative Humidity: 5% to 95% (non-condensing), suitable for high-humidity industrial scenariosVibration Resistance: 3g acceleration at 3Hz-57Hz frequency range, 5g acceleration at 57Hz-500Hz frequency range (sine wave)Shock Resistance: 15g acceleration (half-sine wave, duration 11ms), withstanding installation and transportation shocksEMC Compliance: Meets industrial EMC standards, with strong resistance to external electromagnetic interference
Product Performance
High synchronization acquisition accuracy: ±10ns synchronization error ensures consistency of multi-parameter timestamps, data acquisition error ≤±0.1%Accurate fault identification: Built-in TDM and FFT algorithms, capable of identifying 12 types of rotating equipment faults, fault identification accuracy ≥95%Multi-protocol compatibility: Supports mainstream industrial communication protocols, seamlessly integrating GE’s own systems and third-party platformsStrong environmental adaptability: Wide temperature design combined with anti-corrosion coating, adapting to hazardous areas and harsh industrial environmentsComprehensive diagnostic functions: Equipped with channel-level fault detection, power supply monitoring and communication link checks, supporting three-level early warningOutstanding expansion capability: Provides over 400 local I/O points, up to 4,000 I/O points available after remote expansionHigh operational reliability: Industrial-grade component selection, Mean Time Between Failures (MTBF) exceeding 200,000 hours
