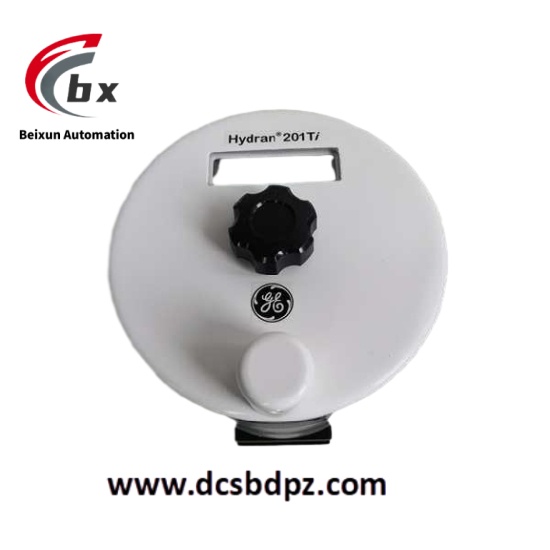

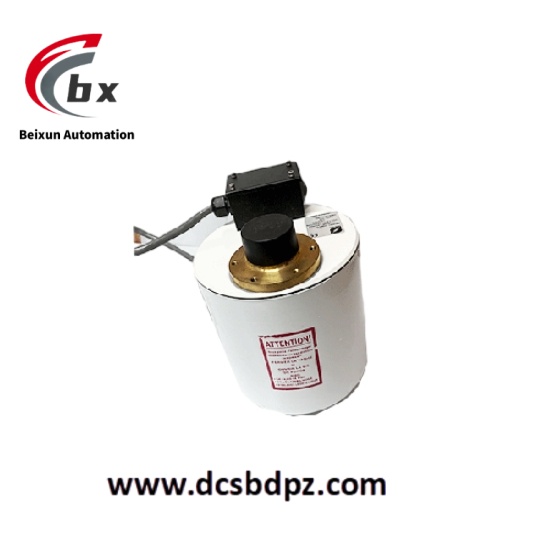

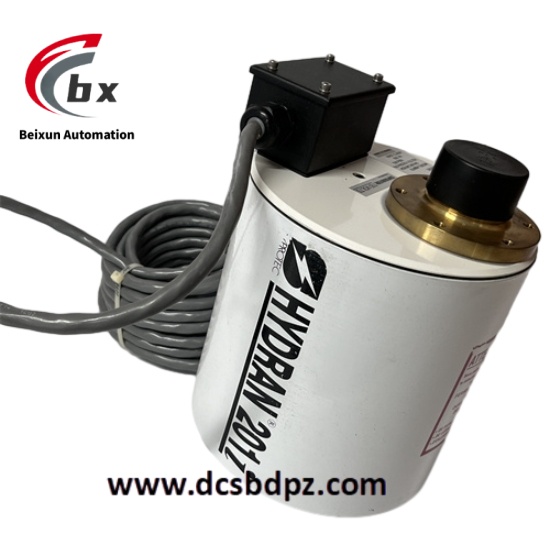

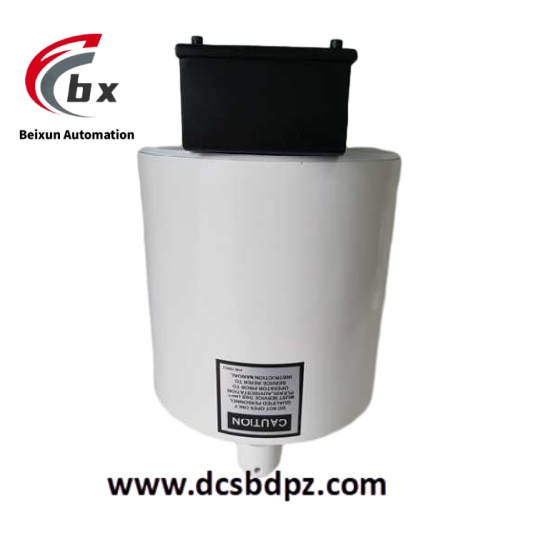

GE H201Ti-CE Gas analysis online monitoring equipment
The GE H201Ti - CE is an online monitoring device for Dissolved Gas Analysis (DGA) in transformer oil. It evaluates the insulation condition and operational health of transformers by continuously monitoring the concentrations of key fault gases such as hydrogen (H₂), carbon monoxide (CO), acetylene (C₂H₂), and ethylene (C₂H₄) in the transformer oil. This device adopts advanced fuel cell sensor technology and has a compact design. It can be directly installed at the upper valve of the transformer without the need for additional piping or pumps, greatly simplifying the installation process.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
GE H201Ti-CE Gas analysis online monitoring equipment
Specific Parameters
- Input Voltage: 100 – 240V AC, 50/60Hz
- Output Voltage: 24V DC
- Output Power: 200W
- Operating Temperature Range: -20°C to +50°C
- Storage Temperature Range: -40°C to +85°C
- Dimensions: 200mm x 100mm x 50mm
- Accuracy: ±0.5%
- Measurement Range: ±20 A, ±50 A, ±100 A, ±200 A, ±500 A, ±1000 A, ±2000 A
- Communication Interface: RS – 485 connection standard, supporting Modbus or Hydran protocol
- Sampling Method: Dynamic oil sampling system
- Alarm Function: Supports alarms for power failure, low oil pressure, sensor failure, etc.
- Display: Backlit LCD, 2 lines x 16 characters
- Other Interface: USB port (Type B connector) for local connection to a laptop for system configuration
Product Performance
- High – Precision Monitoring: Utilizes fuel cell sensor technology to accurately measure fault gases such as hydrogen, carbon monoxide, acetylene, and ethylene, with a measurement accuracy of up to ±0.5%. It can detect early potential faults inside transformers in a timely manner.
- Easy Installation: Features a compact structure and simple installation. It directly connects to the upper valve of the transformer without complex piping or pumps, reducing installation costs and difficulties.
- Remote Monitoring: Supports the RS – 485 communication interface, enabling data exchange and control with other devices or systems, and realizing remote real – time monitoring of transformer operating status.
- Automatic Calibration: Automatically conducts self – checks every 15 days to ensure the accuracy and reliability of measurement data and reduce manual calibration work.
- Data Logging: Has a local data logging function for up to one year and a major event logging function, which helps analyze fault causes and trends and provides data support for equipment maintenance.
