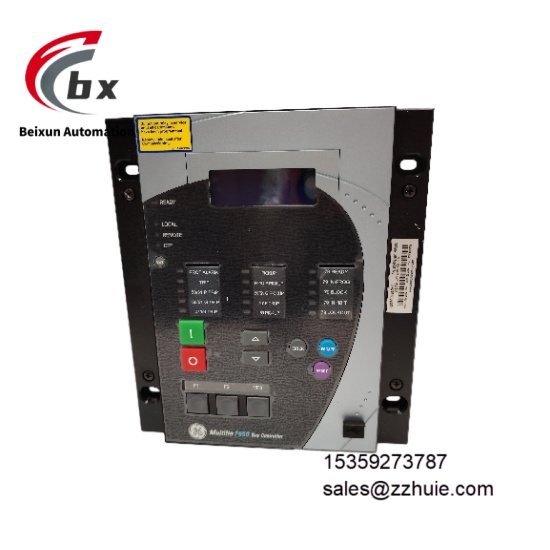

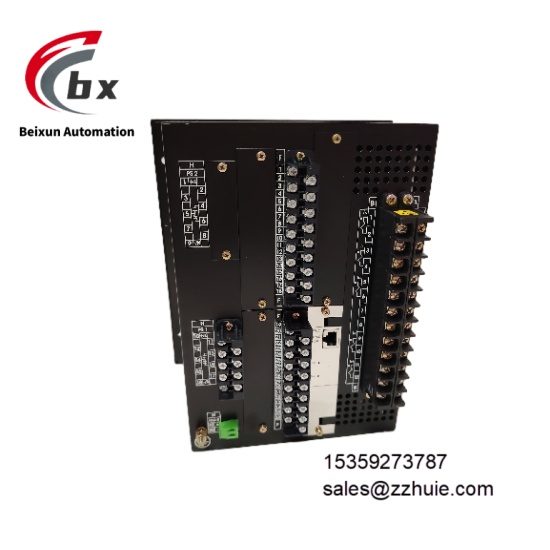

GE F650 F650BFBF2G0HIE Programmable Automation Controller (PAC)

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC ±10%, supporting dual-channel redundant power supply
Processor: Intel Atom dual-core processor, 1.8GHz clock speed
Memory Configuration: 4GB DDR3 RAM (working memory), 32GB SSD (program/data storage)
Communication Interfaces: 4×10/100/1000 Base-T Ethernet (PROFINET/EtherNet/IP supported), 2×RS485 (Modbus RTU), 1×USB 3.0 (maintenance port)
Redundancy Functions: Controller redundancy, power redundancy, communication link redundancy, switching time ≤1ms
Isolation Level: 2.5kV AC between power and signal (1 minute), 2kV AC between communication port and system (1 minute)
Protection Functions: Overvoltage protection, short circuit protection, reverse polarity protection, overheating protection (alarm triggered at 75°C)
Power Consumption: ≤45W under normal operation, ≤80W in redundant mode
Environmental Parameters
Operating Temperature: -40°C to 70°C
Storage Temperature: -45°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61326-1 industrial grade standard, common mode rejection ratio ≥130dB
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Protection Class: IP20 (module itself)
Mechanical Parameters
Dimensions: 160mm (W) × 175mm (H) × 300mm (D)
Weight: Approximately 3.2kg
Mounting Method: F650 series standard rack mounting (compatible with 19-inch cabinets)
Housing Material: Die-cast aluminum alloy (powder-coated surface, UL 94 V-0 grade)
Terminal Type: Phoenix terminals (power/communication), backplane high-speed bus connector (I/O interaction)

Product Performance

F650BFBF2G0HIE is equipped with a dual-core processor, supporting parallel processing of more than 1000 control loops, with a logic operation cycle ≤1ms and PID control accuracy ±0.05% FS, which can quickly respond to dynamic changes in industrial processes. It integrates motion control functions, supporting 8-axis pulse output and position closed-loop control, with positioning accuracy ≤0.1mm.

The redundant architecture adopts a “hot-standby synchronization” mode, with data synchronization delay between active and standby controllers ≤50μs, enabling non-disturbance switching in case of failure to ensure continuous control process. The high-speed Ethernet port has a data transmission rate of 1Gbps, with interaction delay ≤100μs with I/O modules, supporting multi-protocol conversion such as Modbus and IEC 61850, adapting to heterogeneous industrial networks.

Built-in comprehensive self-diagnostic system, it real-time monitors processor, memory, communication links and power status, with fault diagnosis coverage ≥99.9%, supporting 10,000 time-stamped event records for easy fault tracing. Fully compatible with GE VersaMax I/O modules and Proficy Machine Edition configuration software, supporting online programming and firmware upgrade, enabling maintenance without shutdown. The mean time between failures (MTBF) is ≥500,000 hours, meeting high-reliability production needs.
