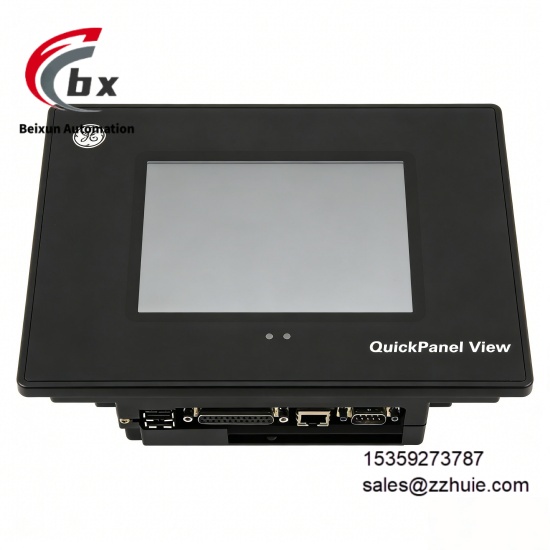

GE ES0622 IC754VGL06CTD Touchscreen Human Machine Interface (HMI) devices

GE ES0622 IC754VGL06CTD Touchscreen Human Machine Interface (HMI) devices

Specific Parameters

Device Type Color Touch Screen Human-Machine Interface (HMI)

Display Size 6-inch Color Display Screen

Display Color 65536 Colors

Resolution 320×240 Pixels

Processor Type Intel XScale PXA300 Processor

Processor Frequency 255MHz

Memory Configuration 64MB Flash Memory, 512KB SRAM, 64MB DRAM, 512KB Bootloader

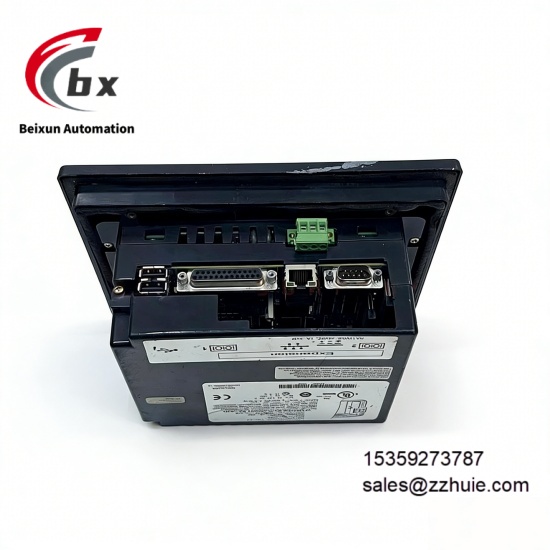

Communication Interfaces 2 Ethernet Interfaces, 1 Serial Combination Port (Supports EIA232C/EIA485), 2 USB Interfaces

Operating System Windows Compact Embedded (CE) Operating System

Operation Mode Multi-Touch

Operating Voltage 240VDC

Operating Current 1A

Power Dissipation 24W

Operating Temperature Range 0℃ to 50℃

Storage Temperature Range -20℃ to 70℃

Relative Humidity 5% to 95%, Non-Condensing

Mounting Type Panel Embedded Mounting

Protection Level Front Panel NEMA 4/4X/12

Adaptable Software Proficy Machine Edition Software

Display Function Supports Graphics, Curves, Tables Display

Product Performance

High-Definition Display Performance: Adopts 6-inch color display screen, 65536 colors with 320×240 pixel resolution, can clearly display graphics, curves, tables and equipment operation status, with intuitive visual effect, facilitating on-site personnel to quickly read information.

High-Speed Computing Performance: Equipped with 255MHz Intel XScale PXA300 processor, combined with multi-type memory combination, runs smoothly without lag, can quickly respond to touch operations, data refresh and command transmission, meeting the real-time interaction needs of industrial sites.

Flexible Interaction Performance: Supports multi-touch operation, easy and flexible to operate, adapts to glove operation scenarios in industrial sites, the screen surface is covered with wear-resistant coating, extending service life and reducing operation loss.

Multi-Protocol Communication Performance: Equipped with multiple communication interfaces, supports mainstream industrial communication protocols, can seamlessly connect to GE series PLC and other industrial control equipment, realizing real-time data interaction, remote monitoring and parameter issuance, no additional protocol conversion module is required.

Stable Operation Performance: Complies with industrial-grade design standards, has good anti-interference ability, the front panel reaches NEMA 4/4X/12 protection level, dustproof and waterproof, can operate stably in a wide temperature range of 0℃ to 50℃ and harsh industrial environments.

Easy Maintenance Performance: Supports online debugging and fault self-diagnosis, can quickly locate fault points, panel embedded installation fits the control cabinet, does not occupy additional space, modular design is easy to disassemble and maintain, reducing operation and maintenance costs.

Software Adaptability Performance: Pre-installed Windows Compact Embedded (CE) operating system, loaded with Proficy Machine Edition software, supports graphical configuration, data recording, alarm management and other functions, can quickly develop monitoring interfaces adapted to different scenarios.

Data Security Performance: Equipped with multi-type memory combination, can stably store configuration projects, operation parameters and alarm records, supports data backup, avoids loss of key data, and ensures production continuity.
