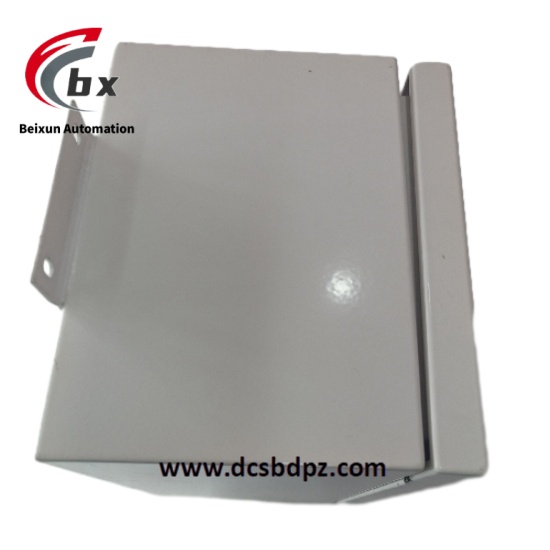

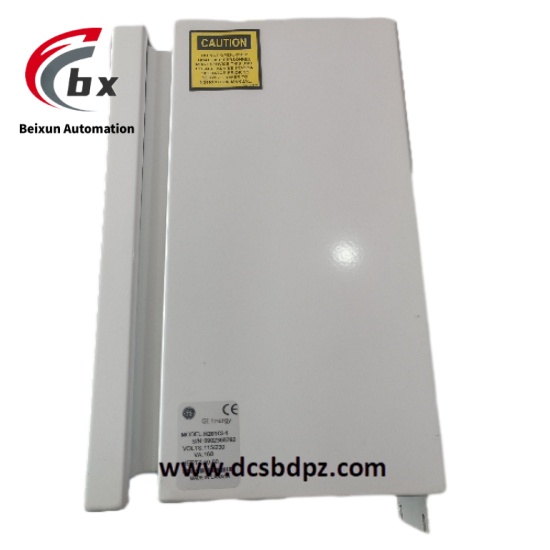

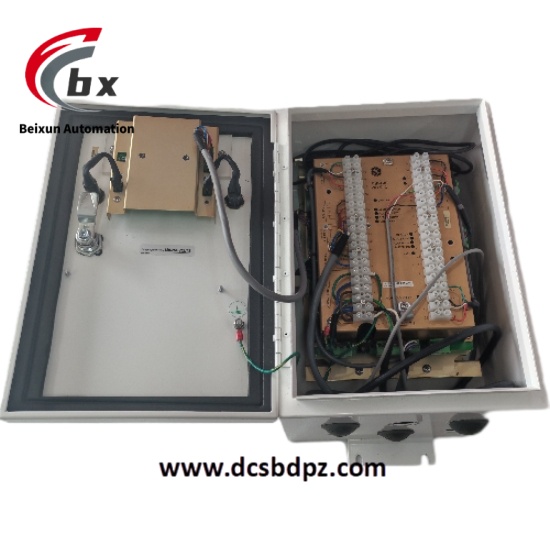

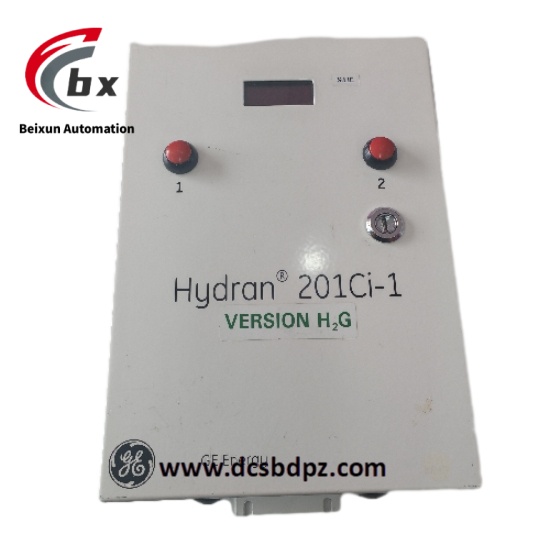

GE Energy HYDRAN H201Ci-1 on-line monitoring device

Specific Parameters

Power Supply Parameters

Supply Voltage: AC 100-240V (±10%)

Operating Frequency: 50/60Hz (auto-adaptive)

Rated Power Consumption: ≤30W (normal operation status)

Backup Power Duration: ≥4 hours (when AC power is off, with built-in lithium battery)

Detection Parameters

Detected Gas Types: Hydrogen (H₂), Carbon Monoxide (CO), Carbon Dioxide (CO₂), Methane (CH₄), Acetylene (C₂H₂), Ethylene (C₂H₄), Ethane (C₂H₆)

Hydrogen (H₂) Detection Range: 0-2000μL/L, Accuracy: ±5% reading or ±2μL/L (whichever is larger)

Acetylene (C₂H₂) Detection Range: 0-100μL/L, Accuracy: ±5% reading or ±0.5μL/L (whichever is larger)

Detection Cycle: ≤1 hour (configurable via software as 15 minutes-24 hours)

Response Time: ≤30 minutes (when gas concentration changes reach 50% of rated value)

Environmental Parameters

Operating Temperature Range: -30°C to +60°C

Storage Temperature Range: -40°C to +70°C

Relative Humidity: 5% to 95% (non-condensing, when temperature ≤40°C)

Protection Class: IP54 (outdoor installation unit), IP20 (indoor analysis unit)

EMC Immunity: Complies with IEC 61000-6-2 industrial environment EMC standard

Communication Parameters

Supported Protocols: Modbus TCP, Modbus RTU (RS485), IEC 61850

Communication Interfaces: 1 RJ45 Ethernet port (10/100Mbps auto-adaptive), 1 RS485 port (half-duplex)

Data Upload Interval: ≤1 minute (configurable, default 5 minutes)

Physical Parameters

Mounting Type: Wall-mounted/bracket-mounted (outdoor column mounting optional)

Dimensions (L×W×H): 450mm×350mm×200mm (main unit)

Weight: Approximately 12kg (including sampling unit and analysis unit)

Sampling Method: Oil circulation sampling (built-in micro pump, flow rate 50mL/min)

Product Performance

Multi-Gas High-Precision Detection: Simultaneously monitors 7 types of characteristic gases dissolved in transformer oil. The detection accuracy of core fault gases (H₂, C₂H₂) reaches ±5% reading, which can accurately capture the gas concentration changes of early internal equipment faults and avoid missed or misjudgments.
Real-Time Monitoring and Rapid Alarm: The shortest detection cycle can be set to 15 minutes, with response time ≤30 minutes. When the gas concentration exceeds the preset threshold, it immediately triggers local sound-light alarm (red LED + buzzer) and remote system alarm (SMS/platform notification), gaining disposal time for operation and maintenance.
Wide Environmental Adaptability: The operating temperature range of -30°C to +60°C covers high-latitude cold regions and high-temperature outdoor environments. The IP54 protection class can resist rain, snow and dust, and can be installed outdoors without additional protective boxes.
Strong EMC Immunity: The main unit adopts an electromagnetic shielding shell, and the sampling line is equipped with surge protection (10kV/5kA). The data transmission bit error rate is ≤10⁻⁹ in the strong electromagnetic environment of the substation, ensuring stable and reliable monitoring data.
Intelligent Fault Diagnosis: Built-in GE’s patented “DGA Trend Analysis Algorithm”, which can automatically identify typical fault types such as partial discharge, low-temperature overheating (150-300°C) and high-temperature overheating (>300°C), generate monthly/quarterly fault trend reports, and assist operation and maintenance personnel in formulating maintenance plans.
