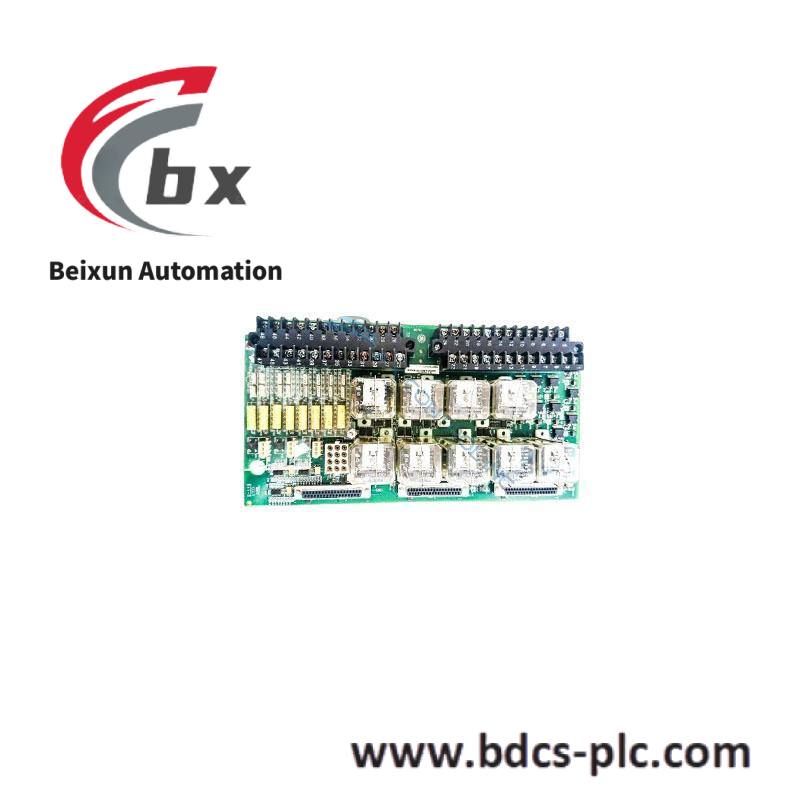

GE DS3800NSWA1A1C Control System Module – Reliable Gas/Turbine Management Component
The GE DS3800NSWA1A1C is a high-performance control system module designed for gas/steam turbine management. Built with triple redundant back-ups on all critical parameters, it minimizes downtime due to electronic failures. Compatible with optional auxiliary board DS3800DSWA for extended functionality.
Manufacturer:General Electric
Model:DS3800NSWA1A1C
Series:Mark IV
Type:Control Systems Module
Circuit Components:Includes quad differential comparators and octal buffers with 3-state outputs.
Redundancy Features:Triple redundant back-ups on all critical parameters.
Compatibility:Compatible with DS3800DSWA auxiliary board.
LED Indicators:Over thirty-five red LEDs for status monitoring.
Mounting Options:Twelve screw mount positions.
The GE DS3800NSWA1A1C Control System Module is meticulously engineered for efficient operation within the Mark IV series, particularly in applications involving gas/steam turbines.
Its design incorporates quad differential comparators and octal buffers with 3-state outputs, providing reliable performance even under demanding conditions.
With triple redundant back-ups on all critical parameters, this module ensures minimal downtime due to electronic failures.
Moreover, it supports an optional auxiliary board (DS3800DSWA) that further enhances functionality with twelve jumpers and twelve rotary potentiometers.
The board’s connectivity is facilitated through a ribbon cable connection, ensuring seamless integration with other components.
