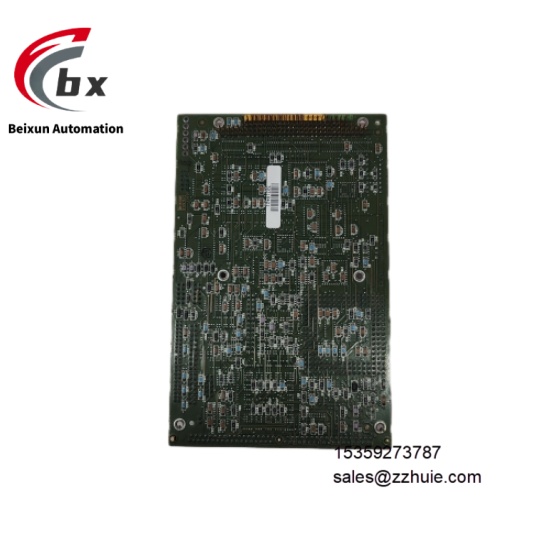

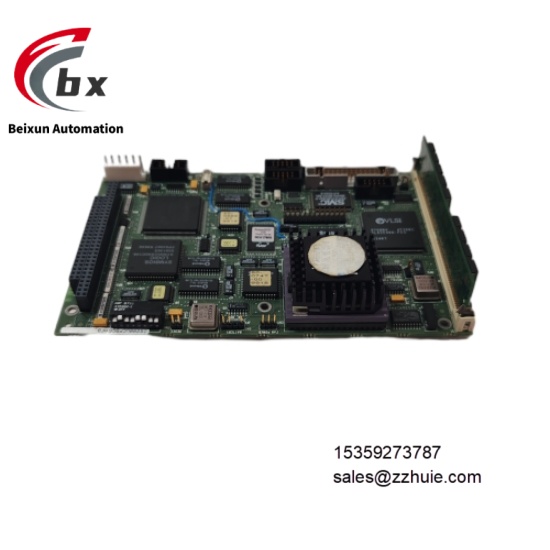

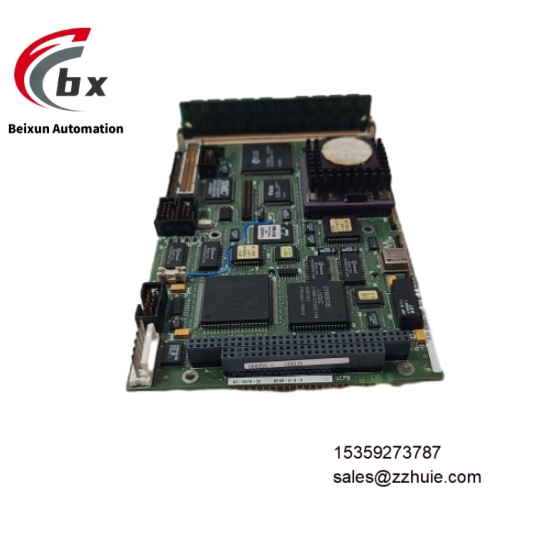

GE DS200UCPBG6AFB Engine CPU board

Specific Parameters

Core Configuration Parameters
Processor: 80486DX processor, providing stable control computing capability
Memory Configuration: 1 DIMM slot, supporting expandable memory
Communication Interfaces: 2 RS-232 serial ports, 1 ARCNET driver
Configuration Component: 1 switch block for I/O engine address configuration
Bus Standard: Compatible with ARCNET industrial network protocol
Electrical Parameters
Power Requirement: Compliant with industrial-grade DC power supply standards
Isolation Method: Photoelectric isolation for signal and power channels
Safety Standard: Conforms to IEC 60947-5-1 requirements
Signal Transmission Rate: ARCNET interface supports 1.5Mbps data transmission
Environmental Parameters
Operating Temperature: -40°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMI Immunity: Compliant with industrial-grade EMC standards
Vibration Resistance: Meets IEC 60068-2-6 standard requirements
Mechanical Parameters
Mounting Method: System backplane rail mounting
Housing Material: Industrial-grade flame-retardant plastic enclosure
Interface Type: Plug-in connector supporting hot-swap maintenance

Product Performance

The CPU board adopts 80486DX processor to build the control core, which can realize millisecond-level control logic calculation, meeting the real-time adjustment needs of rotating machinery. The combined design of dual RS-232 serial ports and ARCNET network supports simultaneous connection of local devices and distributed control systems, with data transmission response time ≤10ms.

The modular architecture supports flexible system expansion, realizing multi-module address allocation through switch block configuration, and a single system can support up to 32 expansion modules to work collaboratively. The circuit design compliant with IEC safety standards has overvoltage protection and signal isolation functions, maintaining stable operation when the power grid fluctuates by ±15%.

The -40°C to 70°C wide temperature design ensures reliable operation in extreme environments, with mean time between failures (MTBF) ≥100,000 hours. Vibration resistance and electromagnetic compatibility meet the installation requirements of industrial heavy equipment, supporting online diagnosis and fault self-recovery.
