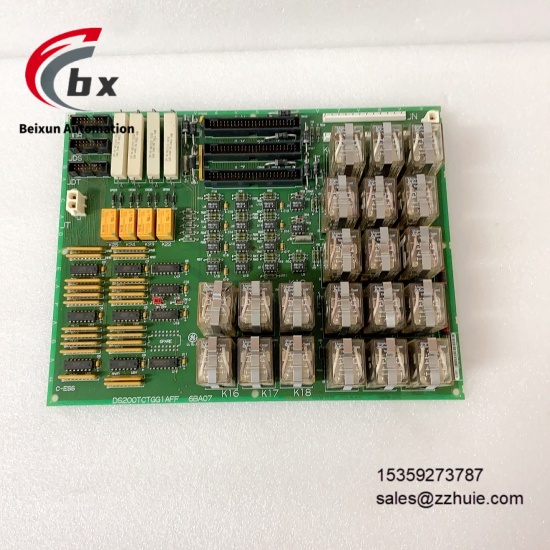

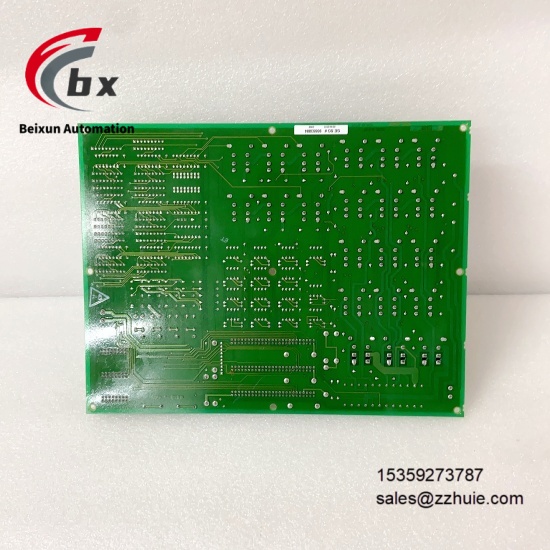

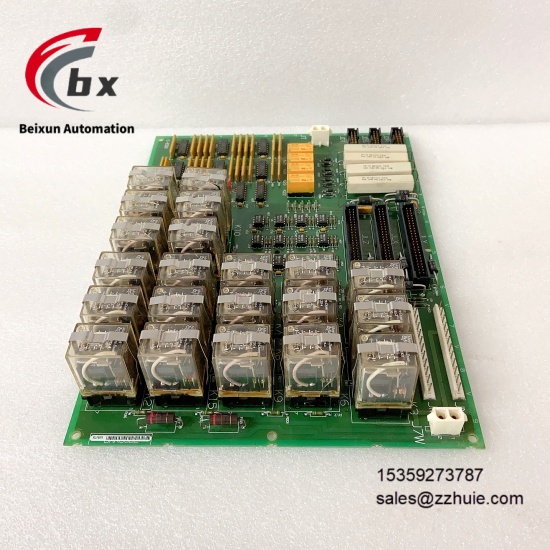

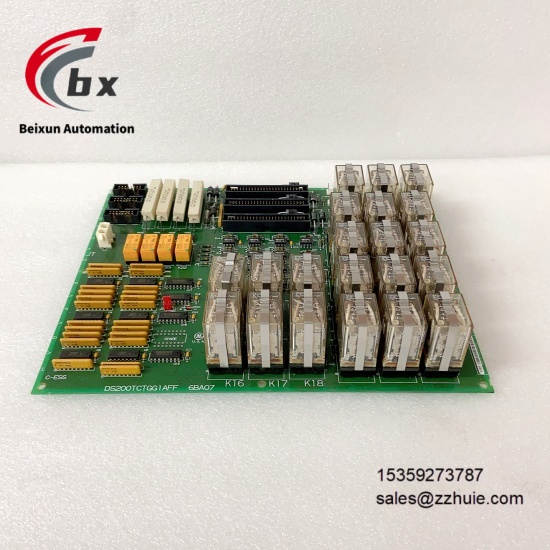

GE DS200TCTGG1AFF Single pole trip board module
Specific Parameters
Brand GE (American Brand)
Product Series GE Speedtronic Mark V Series Turbine Control Module
Product Type Industrial-Grade Simplex Trip Board
Model DS200TCTGG1AFF
Compatible System GE Mark V Gas/Steam/Wind Turbine Control System
Supply Voltage 24VDC, compatible with 90-132VAC/180-264VAC input
Power Consumption Approximately 25W
Relay Configuration 21 plug-in relays, contact type AgSnO2
Connector Specification 3 50-pin connectors (JLY, JLX, JLZ), 2 12-pin connectors (JN, JM)
Contact Rating 3A@125/250VAC (resistive), 3A@30VDC (resistive)
Operating Temperature Range -40℃ to +75℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 0% to 95%, no condensation
Protection Level IP65, vibration and impact resistance, compliant with IEC 61508-2 safety standard
Physical Dimensions 180mm×130mm×50mm
Physical Weight 1.34kg (2.95lb)
PCB Coating Standard coating, functional revision 1A/2F, artwork revision F
Installation Method Wall-mounted, fixed with metal straps, compatible with turbine control cabinet
Origin United States
Product Performance
The solid-state design combined with dedicated plug-in relays has fast tripping response capability, which can quickly trigger shutdown protection when abnormal working conditions occur, effectively avoiding equipment overload and damage risks, and ensuring the safe operation of turbines.
Integrated multi-dimensional abnormal monitoring and self-test functions, supporting custom trip strategies, combined with clear LED status indicators, can quickly judge the module operation status and fault points, simplifying diagnosis and maintenance processes.
IP65 protection level and wide temperature tolerance can resist high temperature, low temperature, dust, humidity, vibration and impact, adapting to harsh industrial environments such as outdoor power stations and industrial plants, with excellent long-term operation stability.
Standardized connector and fixed structure design can be seamlessly integrated into the GE Mark V series control system, completing installation without additional adaptation. The metal strap fixing method prevents relays from falling off due to vibration, improving operation reliability.
The contacts are made of AgSnO2 material, which has excellent conductivity and mechanical life, with a mechanical cycle of up to 5 million times and an electrical cycle of 50,000 times, adapting to high-frequency protection action requirements and extending product service life.
It has 1500VAC RMS high isolation performance, effectively isolating external circuit interference and abnormal voltage impact, avoiding false triggering of protection logic, and ensuring accurate and controllable tripping action.
The modular structure facilitates separate replacement of relays and module maintenance, without shutting down and disassembling the entire control system, reducing operation and maintenance costs and equipment downtime.
Compatible with analog and digital signal interaction, supporting 0-10V/4-20mA analog signal access, and can be linked with upper computer or SCADA system to realize remote monitoring and protection logic debugging.
