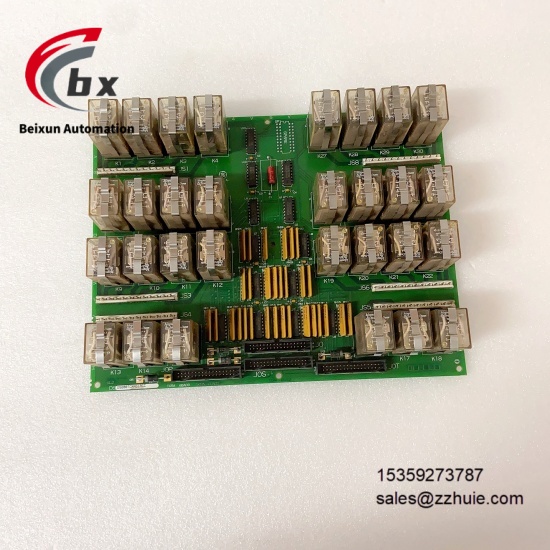

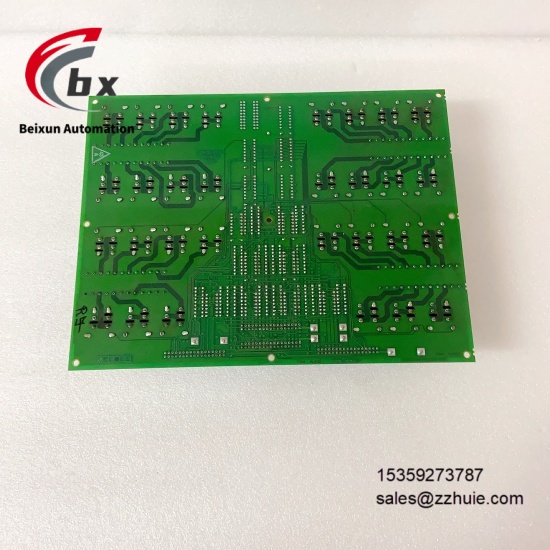

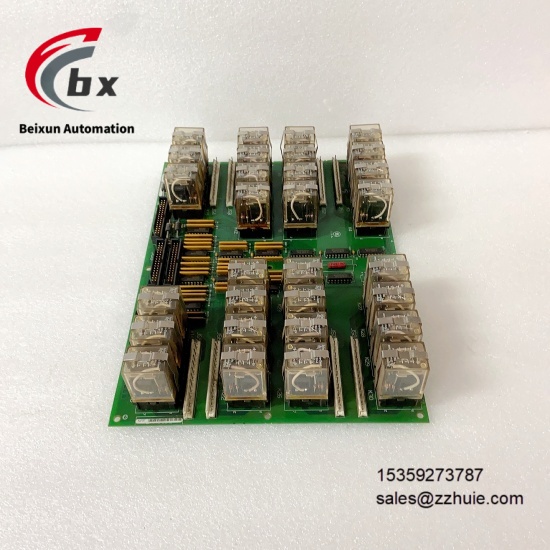

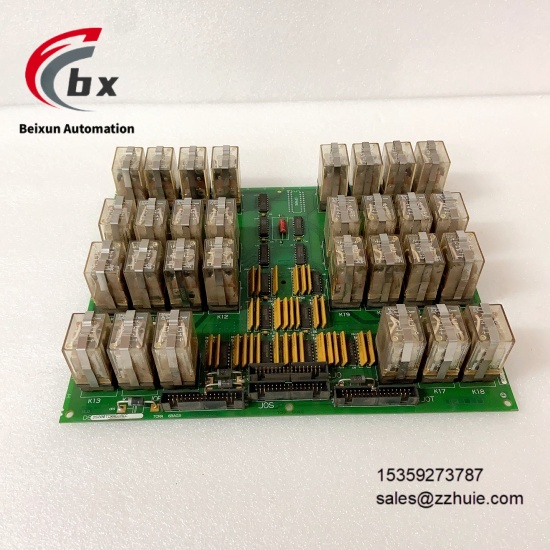

GE DS200TCRAG1ACC Relay output board module
Specific Parameters
Brand GE (American Brand)
Product Series GE Speedtronic Mark V Series Turbine Control Module
Product Type Industrial-Grade Relay Output Board
Model DS200TCRAG1ACC
Compatible System GE Mark V Turbine Control System, Industrial Automation Control Equipment
Relay Configuration 30 plug-in relays
Relay Contact Rating 6A@250VDC, 10A@125VAC
Supply Voltage 24VDC, Input Current 200mA
Connector Specification 4 34-pin connectors (JOR, JOS, JOT, JO), 4 12-pin connectors (JS3, JS4, JS5, JS6)
Isolation Voltage 2500V
Operating Temperature Range -40℃ to +85℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 10% to 95%, no condensation
Physical Dimensions 360.7mm×284.5mm×132.1mm (Length×Width×Height)
Physical Weight 1.36kg
PCB Coating Standard coating, conventional assembly process
Protection Functions Overload Protection, Short-Circuit Protection
Origin United States
Product Performance
30 plug-in relays for independent control, combined with clear contact ratings, can accurately drive external electrical equipment of different load types, realize reliable switching of load on-off, and meet the control needs of turbine auxiliary systems.
The combined design of multi-specification connectors can seamlessly connect with input/output modules and control processors in the system, realize bidirectional transmission of digital signals, and ensure efficient interaction between control commands and status feedback.
2500V high isolation voltage and complete overload, short-circuit protection functions effectively isolate external circuit interference and abnormal current impact, avoid damage to modules and backend equipment, and improve system operation safety.
Wide temperature tolerance of -40℃ to +85℃ can adapt to harsh industrial environments such as high and low temperatures, suitable for multi-scenario turbine control applications such as outdoor power stations and industrial plants, with outstanding stability.
Plug-in structure design facilitates separate replacement of relays and module maintenance. Standardized PCB coating improves moisture and corrosion resistance, extends product service life, and reduces operation and maintenance costs.
It is strictly compatible with the GE Mark V series turbine control core, and can be integrated without additional adaptation, ensuring the consistency of control logic and the accuracy of action timing.
It has excellent anti-electromagnetic interference capability, can resist the influence of complex electromagnetic environments in industrial fields, ensure accurate relay action response, and avoid equipment failures caused by false triggering.
Lightweight design and standardized mounting holes are suitable for installation in turbine control system cabinets, occupying small space, easy to install, and can be quickly deployed and commissioned.
