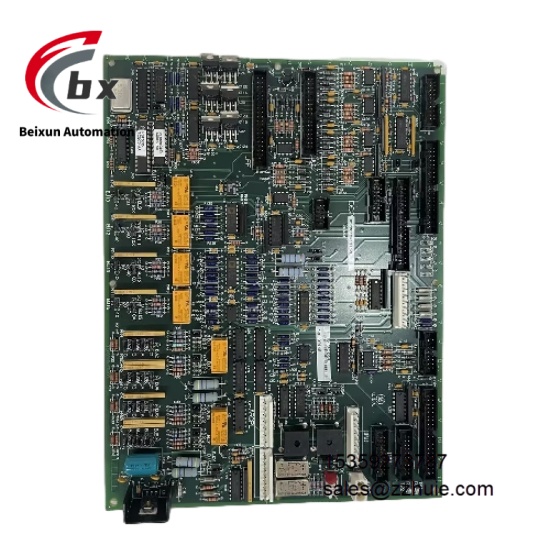

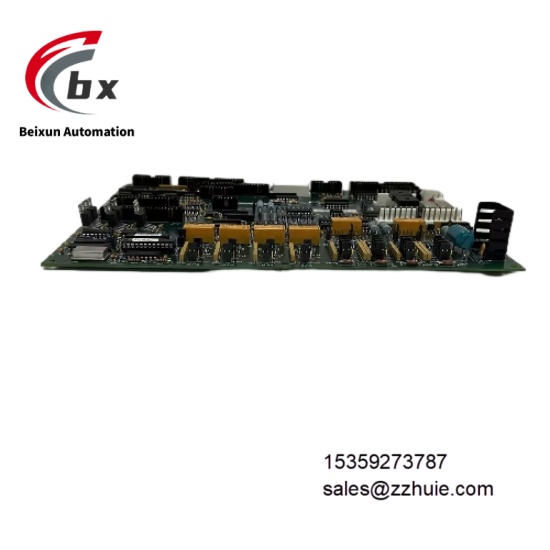

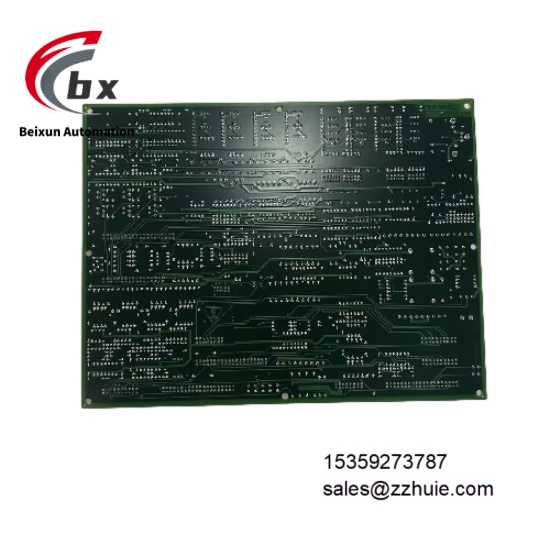

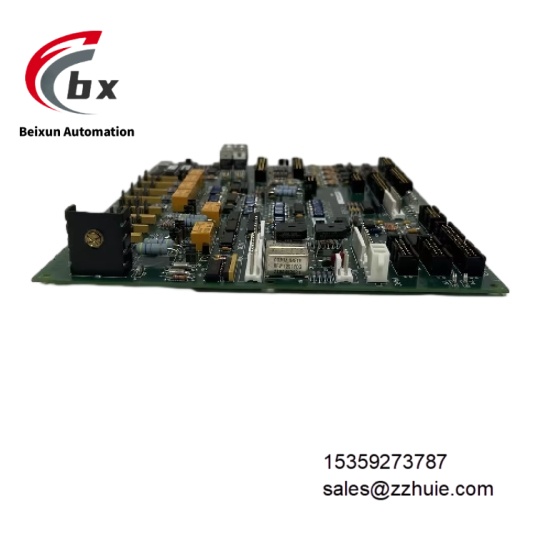

GE DS200TCQCG1AJD Integrated driver control and analog I/O expansion board

Specific Parameters

Electrical Parameters
Rated Voltage: 460V AC
Rated Power: 200 HP
Frequency Range: 0.5 Hz to 120 Hz
Control Method: Pulse Width Modulation (PWM)
Communication Interfaces: RS232, RS485, Modbus TCP
Isolation Level: 2.5kV AC between signal channels and system (1 minute)
Protection Functions: Overload protection, short circuit protection, overvoltage protection, undervoltage protection
Diagnostic Functions: Event recording, fault indication
Power Consumption: ≤15W under normal operation
Environmental Parameters
Operating Temperature: -40°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61326-1 industrial grade standard
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Protection Class: IP20 (module itself)
Mechanical Parameters
Dimensions: 160mm×100mm×30mm
Weight: Approximately 500g
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
Housing Material: Flame-retardant epoxy resin (UL 94 V-0 grade)
Terminal Type: Pin connectors, right-angle connectors, compatible with 14-22 AWG wires
Jumper Configuration: 24 3-pin jumpers, supporting pin 1-2 or 2-3 gear configuration

Product Performance

DS200TCQCG1AJD is equipped with an advanced Digital Signal Processor (DSP) with powerful computing capabilities, supporting vector control and V/F control modes, which can adapt to different motor loads and control requirements, with motor control accuracy reaching 0.1Hz frequency adjustment resolution. It integrates analog I/O expansion channels, with measurement and control accuracy ≤0.25% full scale, meeting high-precision process regulation needs.

Adopting industrial-grade components and anti-interference circuit design, the common mode rejection ratio is ≥120dB, which can resist electromagnetic interference in industrial sites and maintain stable operation in harsh environments. Built-in comprehensive protection and diagnostic system, the fault diagnosis coverage rate is ≥99%, triggering indication and protection actions within 10ms after a fault occurs, and tracing the fault cause through the event recording function.

Fully compatible with GE Mark V series equipment and DC2000 drive systems, it supports function expansion through jumper configuration and software, enabling parameter adjustment and function upgrade without shutdown. The mean time between failures (MTBF) is ≥300,000 hours, which can operate stably for a long time in continuous production scenarios.
