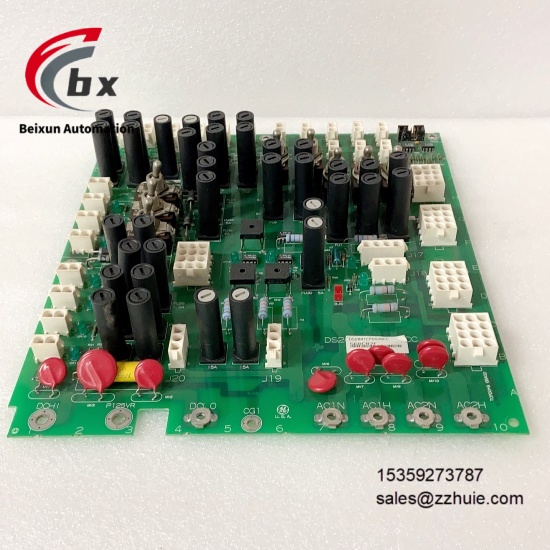

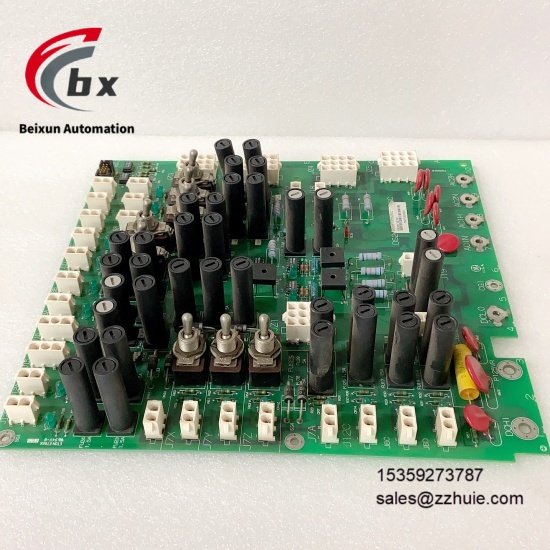

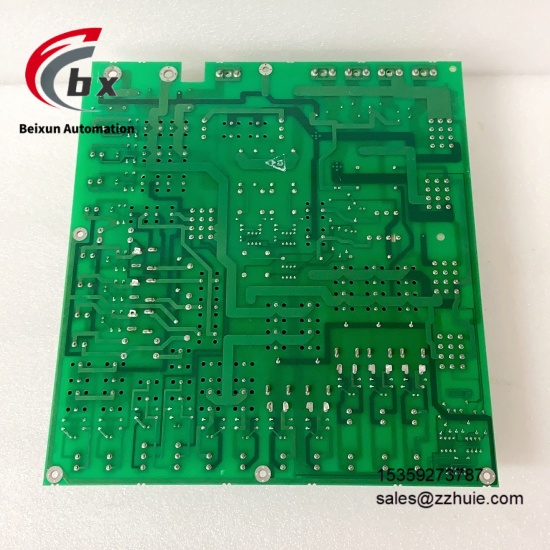

GE DS200TCPDG2BEC Power distribution board
Specific Parameters
Brand General Electric (GE, American Brand, GE Fanuc)
Product Series Mark V Series
Product Type Industrial-Grade Power Distribution Board (PDB)
Model DS200TCPDG2BEC
Input Voltage 24VDC or 48VDC
Output Voltage 5VDC, 12VDC, 24VDC (selectable)
Output Current Maximum 10A
Number of Channels 8 Channels
Output Type Relay Contact
Input Type Digital Input
Power Consumption Distributed on Demand, Adapted to Output Load
Physical Dimensions 230mm×170mm×45mm (Width×Height×Depth)
Physical Weight 2.0kg (4.4lb)
Operating Temperature Range -40℃ to 70℃
Storage Temperature Range -40℃ to 85℃
Relative Humidity 5% to 95%, No Condensation
Protection Level IP20
Certification Standards CE, UL, CSA Certification
Built-in Functions Redundant Components, Built-in Self-Test Function
Structural Design Modular Structure
Applicable System GE Mark V Turbine Control System
Installation Method Rack-Mounted, Adapted to Mark V System Standard Rack
Product Performance
Manufactured with high-quality industrial-grade components and advanced manufacturing processes, it has strong environmental adaptability and anti-interference ability, and can operate stably for a long time in a wide temperature range of -40℃ to 70℃ and high humidity environment without fault hazards.
Supports multi-voltage output selection and 8-channel power distribution, with a maximum output current of 10A, which can accurately match the power supply needs of different components in the Mark V system, realizing efficient and balanced power distribution.
Integrated with redundant components and built-in self-test function, it can real-time monitor its own operating status, timely detect power distribution abnormalities, ensure the integrity and reliability of system power supply, and avoid shutdown of the entire control system due to power failure.
The modular design simplifies the installation, maintenance and replacement process, and the module can be inspected and repaired without interrupting the operation of the entire Mark V control system, greatly reducing operation and maintenance costs and shutdown losses.
It has excellent power stability, which can effectively suppress the impact of voltage fluctuations and electromagnetic interference on power supply quality, provide stable power support for core components such as processors and I/O modules in the system, and ensure the accurate operation of the control system.
Fully compatible with the GE Mark V turbine control system, it can be seamlessly integrated into the existing system without additional modification and adaptation, with strong compatibility, ensuring the coordination and stability of the overall operation of the system.
Complies with CE, UL, CSA international safety certification standards, has a complete safety protection mechanism, can effectively protect the module itself and other components in the system, and eliminate power safety hazards.
