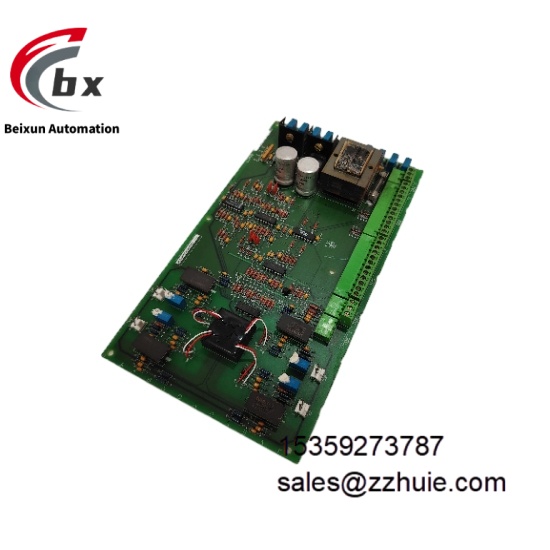

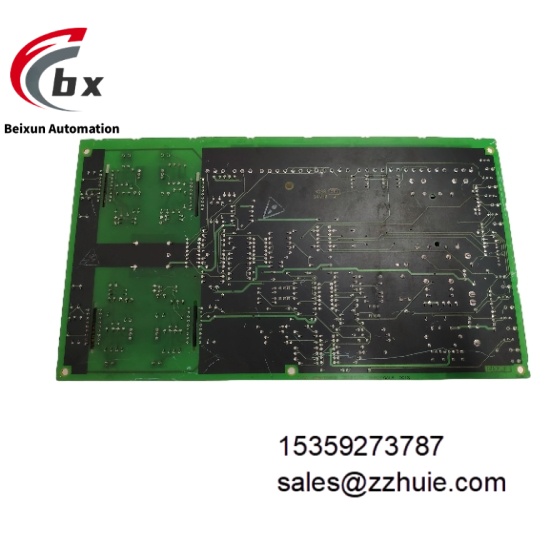

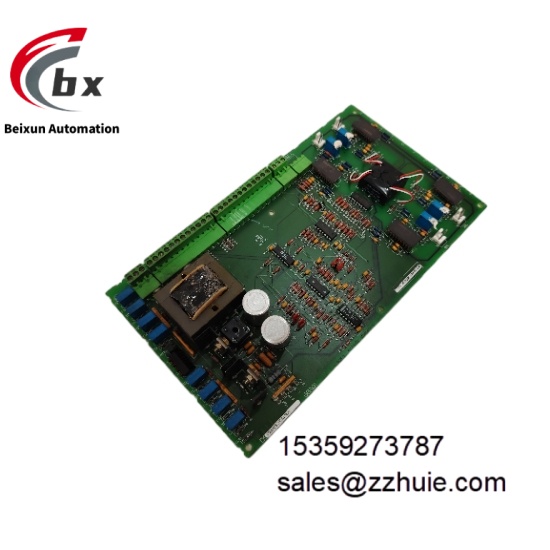

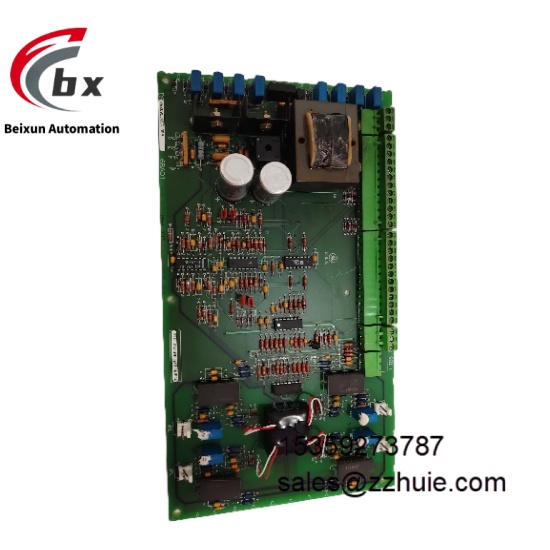

GE DS200SIOCG1AEA Integrated I/O control module

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC ±10% (provided by Mark VIe backplane)
Signal Configuration:
Digital Input: 16 channels dry contact/active signal (24V DC excitation, input current ≤10mA)
Digital Output: 8 channels relay contacts (250V AC/30V DC, 5A resistive load)
Analog Input: 8 channels 4-20mA/0-10V DC (accuracy ±0.1% full scale)
Analog Output: 4 channels 4-20mA/0-10V DC (accuracy ±0.2% full scale)
Resolution: 16-bit (analog signal conversion)
Response Time: Digital ≤1ms, Analog ≤5ms
Isolation Level: 2.5kVAC between channels and between channels and backplane (1 minute)
Communication Interfaces: Mark VIe high-speed backplane bus (100Mbps), 1×RS485 (Modbus RTU)
Protection Functions: Overcurrent protection, overvoltage protection, output short-circuit protection, reverse polarity protection
Environmental Parameters
Operating Temperature: -25°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61000-6-2 industrial standard
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Dimensions: 36mm (W) × 130mm (H) × 180mm (D)
Weight: Approximately 420g
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant ABS plastic (UL 94 V-0 grade)
Terminal Type: Spring-loaded crimp terminals (compatible with 14-22 AWG wires)

Product Performance

DS200SIOCG1AEA adopts a 32-bit high-performance microprocessor with an operation speed of 100 MIPS and a minimum control cycle of 5ms, enabling rapid response to on-site signal changes and precise logic control and parameter adjustment. The 16-bit high-precision A/D conversion chip combined with digital filtering algorithm results in analog signal acquisition error ≤0.1%, ensuring the accuracy of temperature, pressure and other parameter monitoring.

The channel-level 2.5kVAC electrical isolation design combined with EMC filtering circuit provides common mode rejection ratio ≥90dB, effectively resisting electromagnetic interference and ground loops in industrial sites. Supporting hot-swap function, the system remains in normal operation during module replacement, reducing maintenance downtime by more than 90%.

Integrated with comprehensive self-diagnosis functions, it can real-time detect channel open circuit, short circuit, chip faults and power abnormalities, with fault response time ≤5ms, feeding back to the main controller via the backplane bus and triggering alarms. Fully compatible with Mark VIe series control systems, data update delay ≤20ms, mean time between failures (MTBF) ≥150,000 hours, meeting industrial-grade continuous operation requirements.
