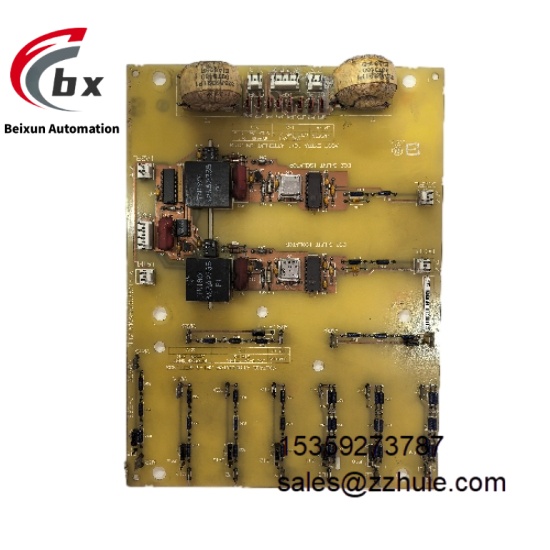

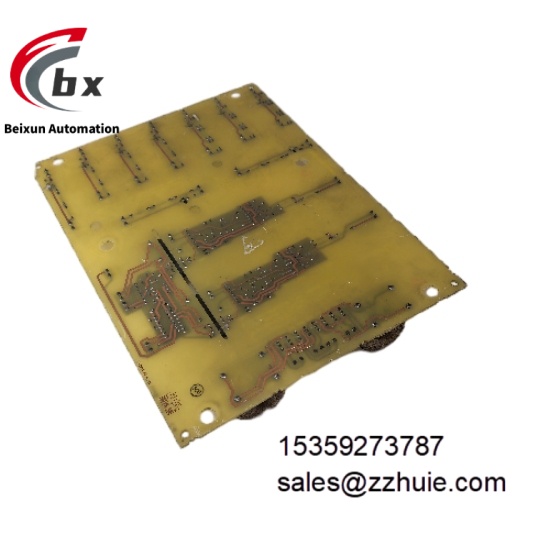

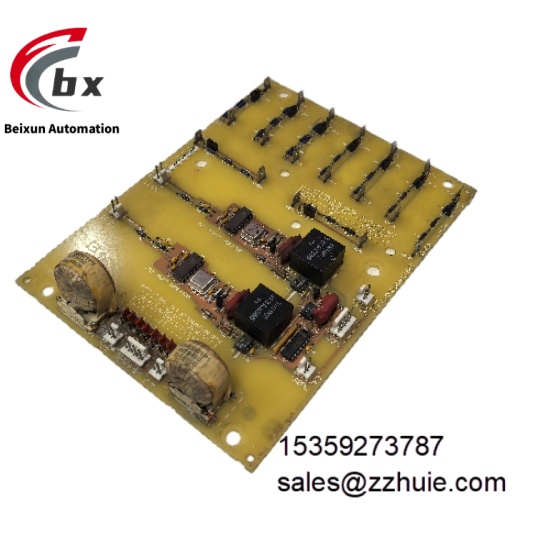

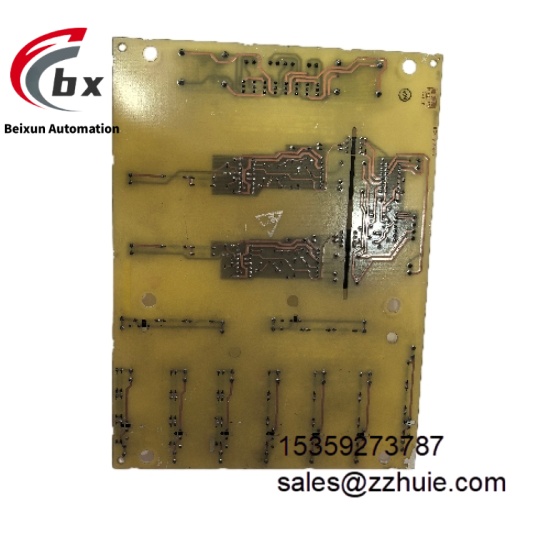

GE DS200SHVMG1AFE Signal monitoring and conditioning module

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC ±10% (provided by Mark VIe backplane)
Signal Configuration:
Analog Input: 4-channel differential high-voltage signals (0-1000V DC/0-690V AC)
Analog Output: 2-channel standard signals (4-20mA/0-10V DC, accuracy ±0.1% full scale)
Resolution: 16-bit A/D conversion
Measurement Accuracy: ±0.05% full scale (25°C); ±0.2% full scale (0-60°C)
Response Time: ≤1ms (signal conversion delay)
Isolation Level: 2.5kVAC between input and output/power supply (1 minute)
Communication Interfaces: Mark VIe backplane bus (100Mbps), 1×RS485 (Modbus RTU)
Protection Functions: Overvoltage protection (≤1200V DC), overcurrent protection, reverse polarity protection
Environmental Parameters
Operating Temperature: -25°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61000-6-2 industrial standard
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Dimensions: 36mm (W) × 130mm (H) × 180mm (D)
Weight: Approximately 420g
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant ABS plastic (UL 94 V-0 grade)
Terminal Type: High-voltage dedicated spring-loaded crimp terminals (compatible with 12-22 AWG wires)

Product Performance

DS200SHVMG1AFE adopts high-precision 16-bit A/D conversion chip and temperature compensation algorithm, with measurement error ≤0.2% over the full temperature range, ensuring accuracy and repeatability of high-voltage signal acquisition. Built-in high-voltage voltage divider circuit and isolation amplifier enable direct access to kilovolt-level voltage signals without external signal transmitters, simplifying system integration.

Channel-level 2.5kVAC electrical isolation design combined with multi-stage EMC filtering circuit provides common mode rejection ratio ≥100dB, effectively resisting electromagnetic interference and ground loops in industrial sites. Supporting hot-swap function, the system remains in normal operation during module replacement, reducing maintenance downtime by more than 90%.

Integrated with comprehensive self-diagnosis functions, it can real-time detect high-voltage channel overload, chip faults and power abnormalities, with fault response time ≤5ms, feeding back to the main controller via the backplane bus and triggering alarms. Seamlessly compatible with Mark VIe control system, data update delay ≤20ms, mean time between failures (MTBF) ≥150,000 hours, meeting continuous operation requirements in high-voltage scenarios.
