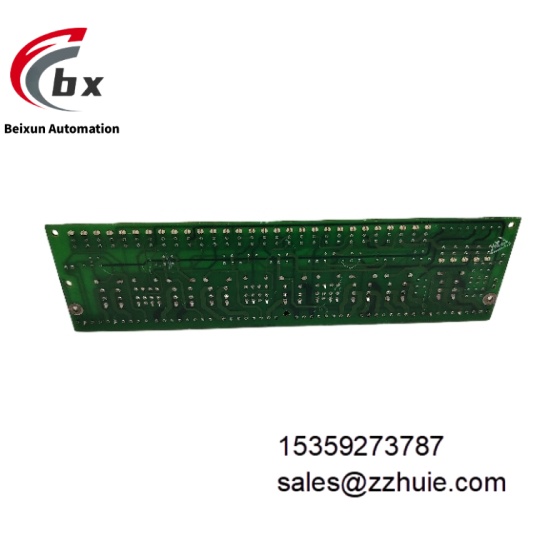

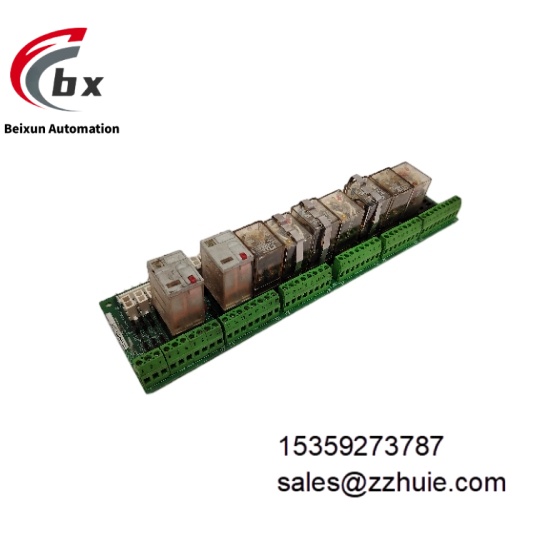

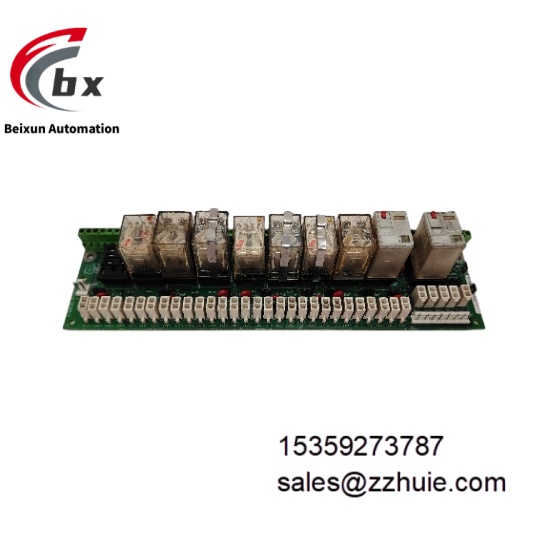

GE DS200RTBAG3AHC Relay terminal board module

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC ±10% (provided by system backplane)
Relay Configuration: 16-channel Form-C relays (NO/NC contacts)
Relay Load Capacity: 250V AC/30V DC, 5A resistive load
Signal Type: Digital input/output (compatible with dry contact/active signal)
Response Time: Input ≤1ms, Output ≤3ms
Isolation Level: 2.5kVAC between channels and between channels and backplane (1 minute)
Communication Interface: Mark VIe high-speed backplane bus (100Mbps)
Protection Functions: Overcurrent protection, output short-circuit protection, reverse polarity protection
Environmental Parameters
Operating Temperature: -25°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61000-6-2 industrial standard
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Dimensions: 36mm (W) × 130mm (H) × 180mm (D)
Weight: Approximately 400g
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant ABS plastic (UL 94 V-0 grade)
Terminal Type: Spring-loaded crimp terminals (compatible with 14-22 AWG wires)

Product Performance

DS200RTBAG3AHC adopts dual isolation design of relay contacts and signal circuits, with common mode rejection ratio ≥90dB, effectively resisting electromagnetic interference and ground loops in industrial sites. 16 relays support independent control and status feedback, with mechanical contact life ≥1,000,000 cycles and electrical life ≥100,000 cycles, meeting long-term high-frequency operation requirements.

Supporting hot-swap function, the system remains in normal operation during module replacement, reducing maintenance downtime by more than 90%. Integrated with channel-level self-diagnosis functions, it can real-time detect relay sticking, coil faults and power abnormalities, with fault response time ≤5ms, feeding back to the main controller via the backplane bus and triggering alarms.

Fully compatible with Mark VIe series control systems, data update delay ≤20ms, mean time between failures (MTBF) ≥150,000 hours, adapting to continuous operation requirements in industrial scenarios.
