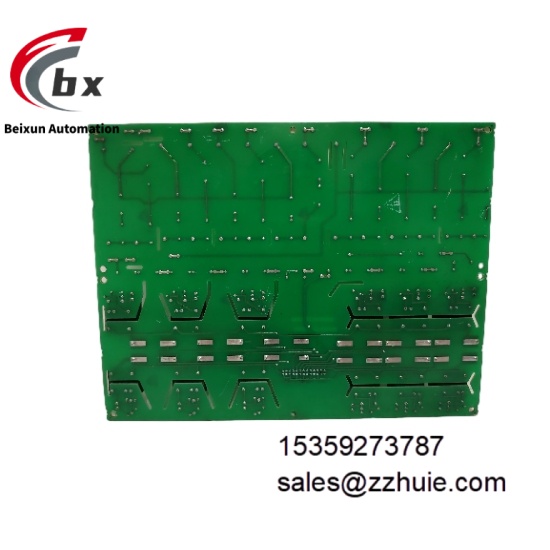

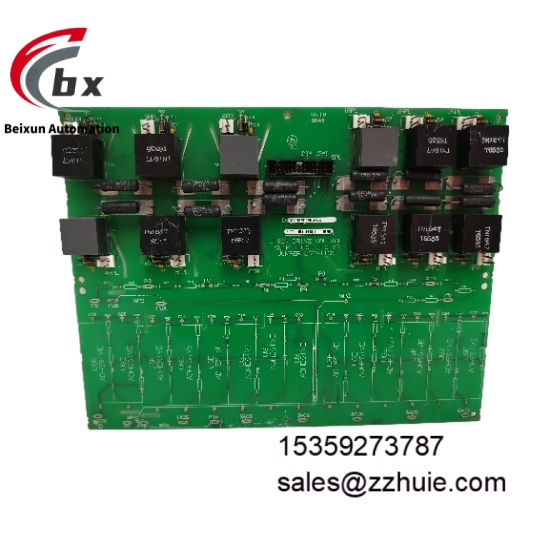

GE DS200PCCAG5ACB Power connection card

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC
System Input Voltage: 100-240V AC
Output Voltage: 0-10V DC
Maximum Output Current: 5A
Communication Interfaces: Modbus, Ethernet (100Mbps full-duplex)
Signal Isolation: Pulse transformer isolation
Protection Functions: Overcurrent protection, overvoltage protection, solid-state circuit breaker
Power Consumption: Maximum 18W
Environmental Parameters
Operating Temperature: -40°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with industrial-grade electromagnetic compatibility standards
Vibration Resistance: Compliant with IEC 60068-2-6 standard
Shock Resistance: Compliant with IEC 60068-2-27 standard
Mechanical Parameters
Dimensions: 160mm×160mm×120mm
Weight: Approximately 0.8kg
Mounting Method: Cabinet rail mounting (compatible with standard industrial brackets)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant epoxy copper-clad laminate (UL 94 V-0 grade)
Connector Type: 12 plug connectors (forward/reverse gate pulse transmission)

Product Performance

DS200PCCAG5ACB adopts snubberless design to optimize power transmission efficiency, achieving electrical isolation between control signals and power circuits through pulse transformers with common mode rejection ratio ≥95dB, effectively eliminating electromagnetic interference in industrial sites. Modular architecture supports online replacement without system shutdown during maintenance, with replacement time ≤8 minutes.

Dual 100Mbps Ethernet ports support redundant communication with data transmission delay ≤8ms, ensuring real-time response of control commands. Built-in temperature sensor (accuracy ±2°C) continuously monitors module status, automatically triggering diagnostic alarms and uploading signals to control system when overheating occurs. Fully compatible with Mark V series DCFB-type power boards, supporting automatic reconfiguration.

Wide temperature design ensures stable operation within -40°C to 70°C, with output signal drift ≤0.3%/°C in high-temperature environments. Mean time between failures (MTBF) ≥120,000 hours, meeting continuous operation requirements of high-horsepower drives.
