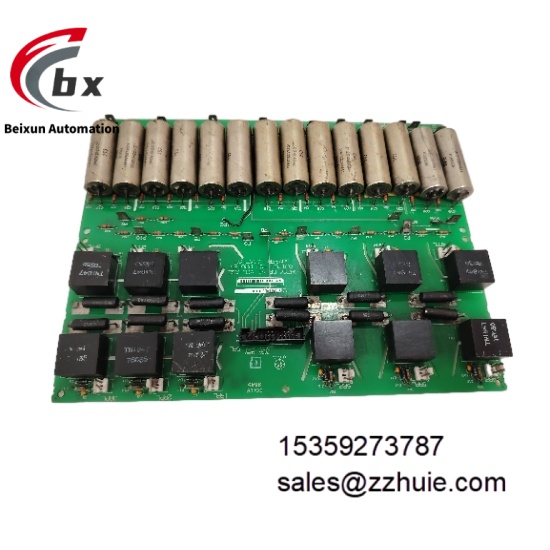

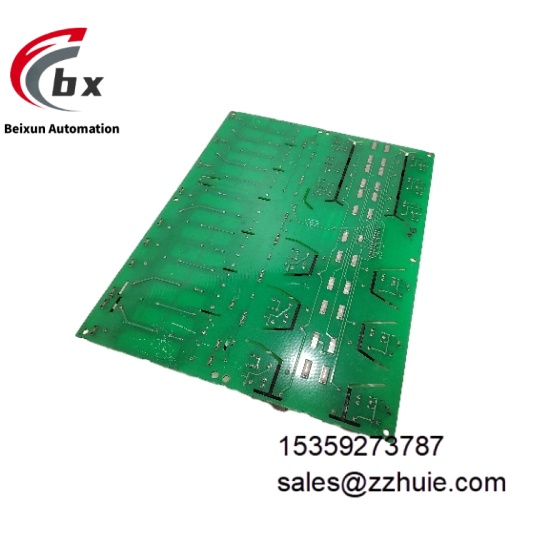

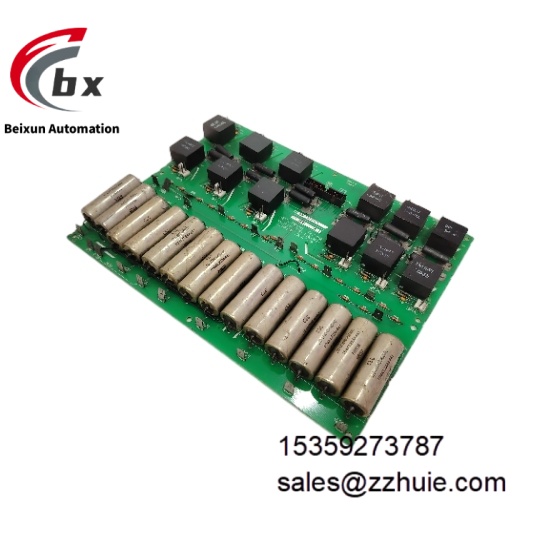

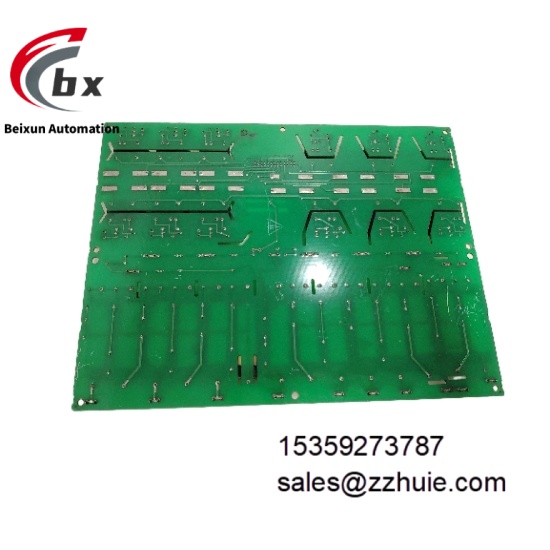

GE DS200PCCAG1ACB Power connection and signal transmission module

Specific Parameters

Electrical Parameters
Input Voltage: 24V DC
Output Current: 10A
Armature Voltage: 240-630V AC (regenerative voltage supported)
Communication Interfaces: Ethernet, RS485 (Modbus protocol compatible)
Protection Functions: Built-in overcurrent protection fuse, short circuit protection
Signal Transmission Type: Mixed analog and digital transmission
Power Consumption: Maximum 15W
Environmental Parameters
Operating Temperature: -40°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with industrial-grade electromagnetic compatibility standards
Vibration Resistance: Compliant with IEC 60068-2-6 standard
Shock Resistance: Compliant with IEC 60068-2-27 standard
Mechanical Parameters
Dimensions: 120mm×80mm×40mm
Weight: Approximately 350g
Mounting Method: Standard cabinet rail mounting (35mm DIN rail compatible)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant ABS plastic (UL 94 V-0 grade)
Terminal Type: Spring-loaded crimp input/output terminals (compatible with 18-24 AWG wires)

Product Performance

DS200PCCAG1ACB adopts isolated circuit design to achieve electrical isolation between control signals and power circuits, with common mode rejection ratio ≥90dB, effectively resisting electromagnetic interference in industrial sites. Modular structure supports quick replacement without system shutdown during maintenance, with replacement time ≤5 minutes.

Built-in LED status indicators and jumper configuration functions can real-time display power status and communication link health. Fault codes can be read through dedicated diagnostic tools, with fault location accuracy up to channel level. Fully compatible with Mark V series SDCI power boards, data transmission delay ≤10ms to ensure real-time execution of control commands.

Wide temperature design ensures stable operation within -40°C to 70°C, with output drift ≤0.5%/°C in high-temperature environments. Mean time between failures (MTBF) ≥150,000 hours, meeting continuous industrial operation requirements.
