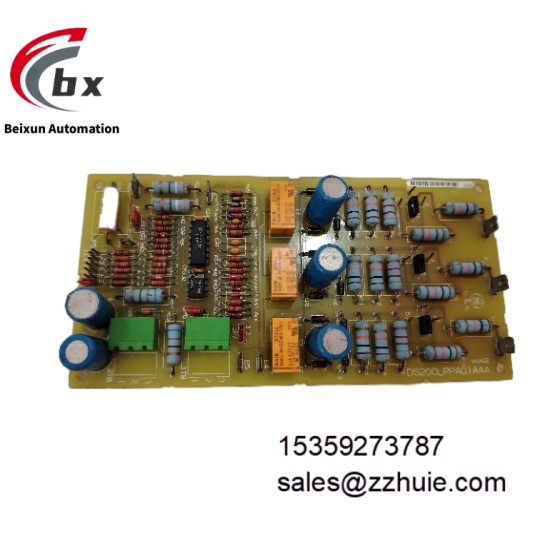

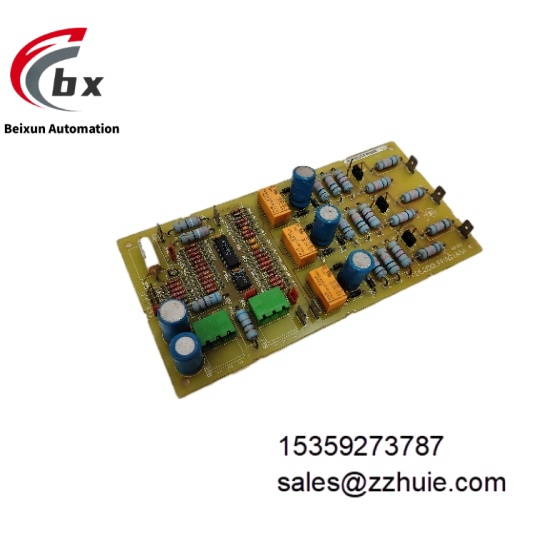

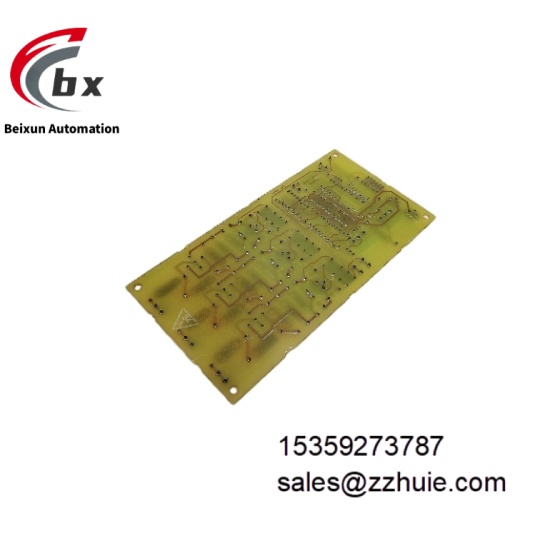

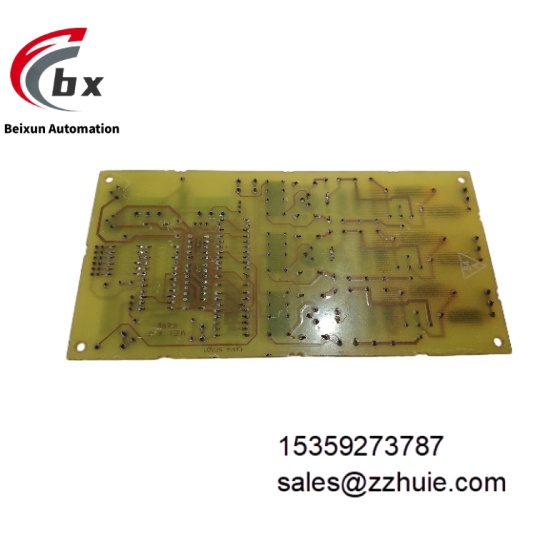

GE DS200LPPAG1AAA Line protection panel

Specific Parameters

Electrical Parameters
System Input Voltage: 200-600V AC
Supply Voltage: 5V DC (provided by rack backplane), supporting 24V system power redundancy
Voltage Input Range: 57-276V AC (three-phase differential input)
Current Input Range: 0-5A CT (per phase)
Resolution: 16-bit A/D conversion
Response Time: ≤2ms
Relay Output: 4 Form-C relays (NO/NC), AC 250V/5A
Communication Interface: GE dedicated backplane high-speed bus
Protection Functions: Overcurrent protection, overvoltage protection, undervoltage protection, short circuit protection, ground fault protection
Power Consumption: Maximum 6W
Environmental Parameters
Operating Temperature: -25℃～+70℃
Storage Temperature: -40℃～+85℃
Relative Humidity: 5%～95% RH (non-condensing)
EMC Immunity: Compliant with industrial-grade electromagnetic compatibility standards
Vibration Resistance: Compliant with IEC 60068-2-6 standard
Shock Resistance: Compliant with IEC 60068-2-27 standard
Mechanical Parameters
Dimensions: 160mm×100mm×30mm
Weight: Approximately 0.35kg
Mounting Method: Drive component bracket mounting, compatible with standard guide rails
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant material (UL 94 V-0 grade)
Terminal Configuration: Seven functional jumpers (JP1-JP7), two terminal blocks (three terminals each)

Product Performance

DS200LPPAG1AAA adopts high-precision 16-bit A/D conversion and high-speed digital signal processing circuits to realize real-time monitoring of three-phase voltage and current, with a sampling rate of 10kHz, ensuring fault response time ≤2ms. Protection logic can be flexibly configured through on-site software, supporting customized protection thresholds and action sequence settings.

Channel-level electrical isolation design effectively resists electromagnetic interference in industrial sites with high common mode rejection ratio, maintaining stable operation within the wide temperature range of -25℃ to 70℃. Modular structure supports quick plug-in replacement without system shutdown during maintenance.

Integrated with comprehensive self-diagnostic functions and LED status indicators, it can real-time monitor module operating status, generate component health reports through diagnostic tools, and support data comparison analysis before and after faults. Mean time between failures (MTBF) meets industrial-grade long-term operation requirements.
