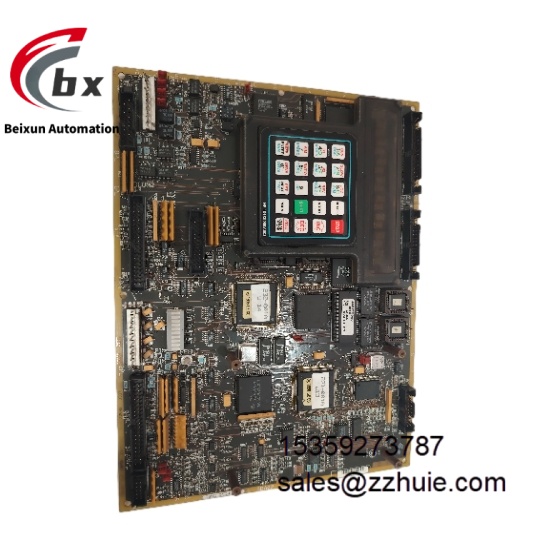

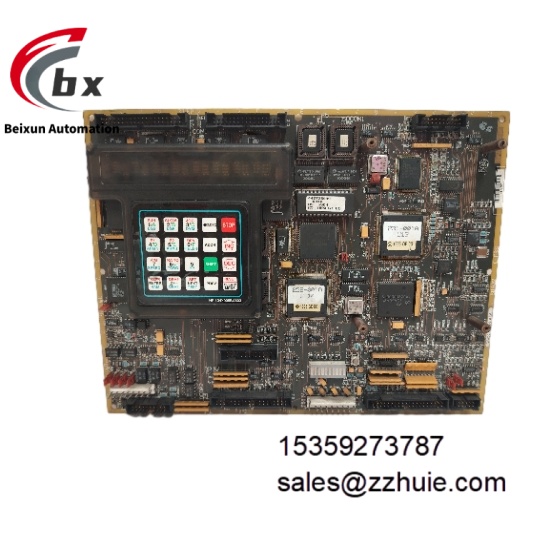

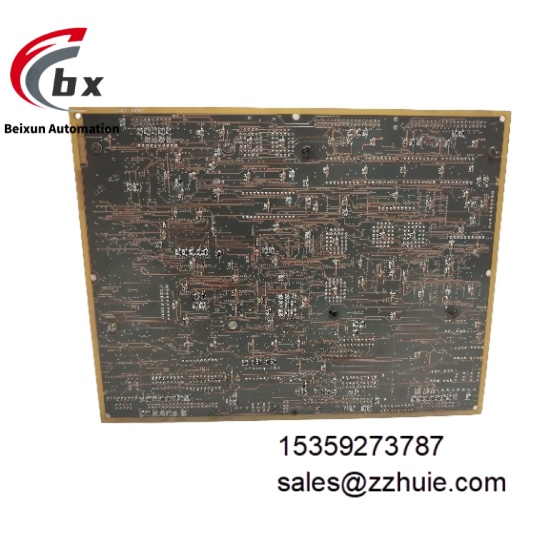

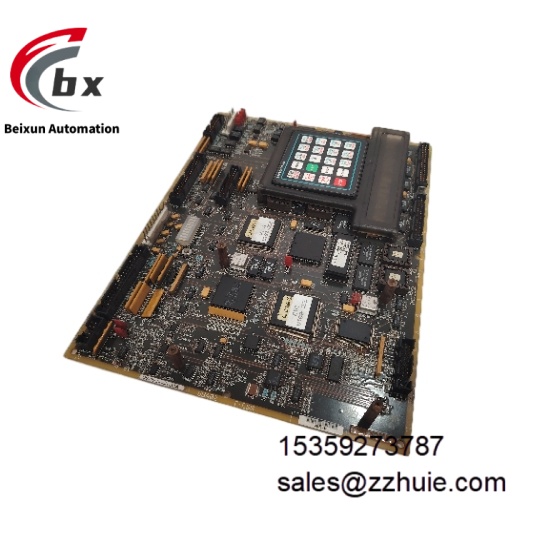

GE DS200LDCCH1AKA Drive control and communication module

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC ±10%
Signal Configuration:
Digital Input: 16 channels (dry contact/active signal, input current ≤10mA)
Digital Output: 16 channels (relay contacts, 250V AC/30V DC, 5A resistive load)
Analog Input: 8 channels (4-20mA/0-10V DC, accuracy ±0.1% full scale)
Analog Output: 4 channels (4-20mA/0-10V DC, accuracy ±0.2% full scale)
Communication Interfaces: Ethernet (10/100Mbps), RS-232, RS-485 (Modbus RTU)
Storage Capacity: 512KB RAM, 1MB Flash
Isolation Level: 2.5kVAC between signal channels (1-minute withstand voltage)
Protection Functions: Overcurrent protection, overvoltage protection, short circuit protection, reverse polarity protection
Environmental Parameters
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with IEC 61000 industrial standard
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Dimensions: 120mm × 80mm × 40mm
Weight: Approximately 300g
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant ABS plastic (UL 94 V-0 grade)
Interface Type: RJ45 Ethernet interface, spring-loaded crimp terminals (compatible with 18-24 AWG wires)

Product Performance

DS200LDCCH1AKA adopts high-performance microprocessor, supporting multiple control methods including PID control, sequence control and logic control. With control accuracy up to ±0.1% and response time ≤10ms, it enables precise regulation of execution devices. Multi-protocol communication interfaces support ProfiNet, EtherNet/IP and Modbus with maximum data transmission rate of 100Mbps, meeting real-time communication requirements in industrial sites.

Channel-level electrical isolation design combined with EMC filtering circuit provides common mode rejection ratio ≥90dB, effectively resisting electromagnetic interference and ground loops. Modular structure supports online hot-swap, keeping the system operational during maintenance and reducing downtime by over 90%. Integrated with comprehensive self-diagnosis functions, it real-time monitors channel faults and communication abnormalities, feeding back fault status via indicators and bus with fault response time ≤5ms.

Fully compatible with Mark VI series control systems, it features mean time between failures (MTBF) ≥150,000 hours and supports redundant configuration, ensuring continuous operation in critical industrial scenarios.
