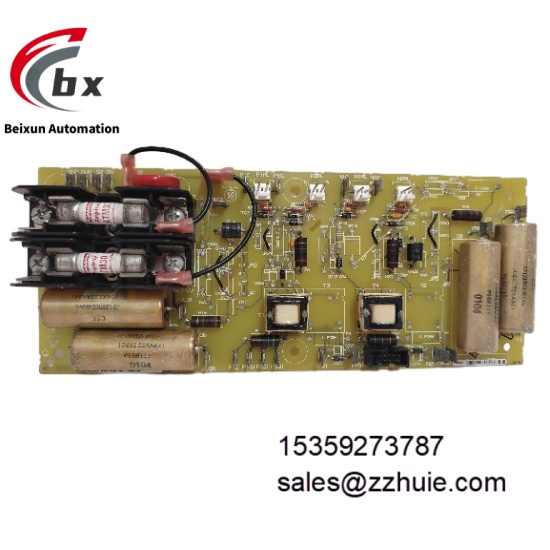

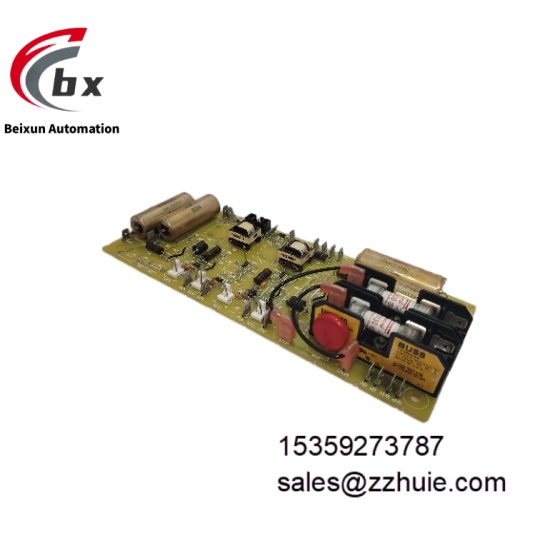

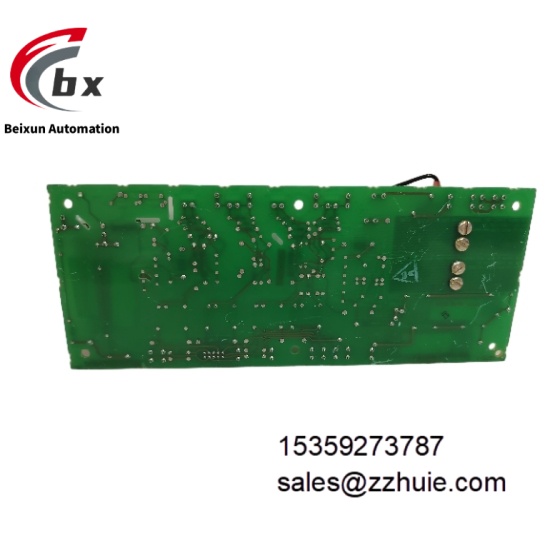

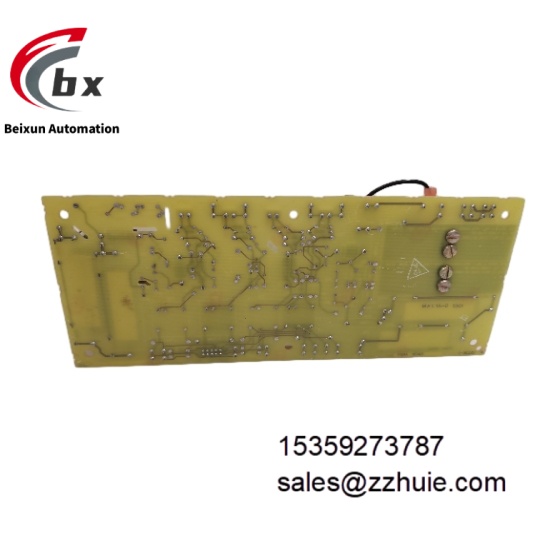

GE DS200FSAAG2ABA On site power amplifier board

Specific Parameters

Electrical Parameters
Supply Voltage: Dual input of 5V DC ±5% and 12V DC ±5%
Fuse Specification: 2 sets of replaceable fuses (600V AC/DC, 30A rated current)
Signal Amplification Range: 0-10V DC input amplified to 0-24V DC/4-20mA
Amplification Accuracy: ±0.1% full scale (at 25°C ambient temperature)
Isolation Level: 2.5kVAC between input and output (1-minute withstand voltage)
Output Drive Capacity: Maximum continuous output current 2A (resistive load)
Protection Functions: Overcurrent protection, overvoltage protection, short circuit protection
Environmental Parameters
Operating Temperature: -25°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61000-6-2 industrial standard
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Dimensions: 160mm (W) × 100mm (H) × 30mm (D)
Weight: Approximately 420g
Mounting Method: 35mm standard DIN rail (with anti-loose clips)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant epoxy copper-clad laminate (UL 94 V-0 grade)
Connector Type: 10-pin gold-plated connector (compatible with 18-24 AWG wires)

Product Performance

DS200FSAAG2ABA adopts high-precision operational amplifiers and linear voltage regulator circuits to achieve 0.1% level signal amplification accuracy, ensuring actuator control deviation ≤±0.5% of rated value. Dual-channel independent isolation design provides common mode rejection ratio ≥100dB, effectively eliminating ground loop interference in industrial sites with signal transmission delay ≤50μs.

Onboard self-recovery fuses and overvoltage clamping circuits form a dual protection mechanism. When output is short-circuited or overcurrent, drive signals can be 切断 within 10ms and maintain fault status, automatically recovering after fault elimination. Wide temperature design ensures stable performance within -25°C to 70°C, with output drift ≤0.3%/°C in high-temperature environments.

Verified compatibility with Mark V series control systems, data refresh cycle ≤10ms, mean time between failures (MTBF) ≥150,000 hours, supporting online hot-swap maintenance without system shutdown during module replacement.
