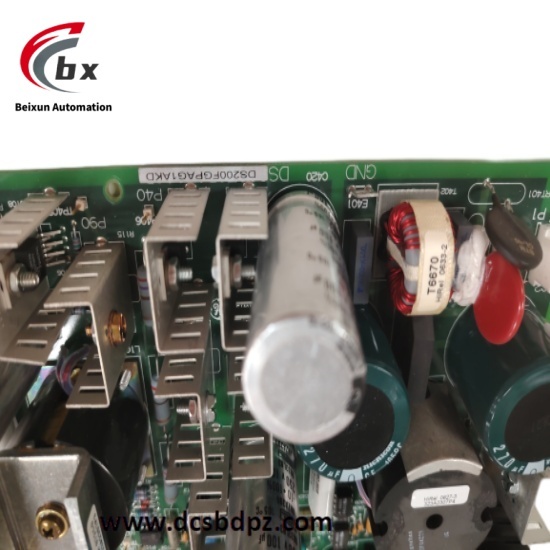

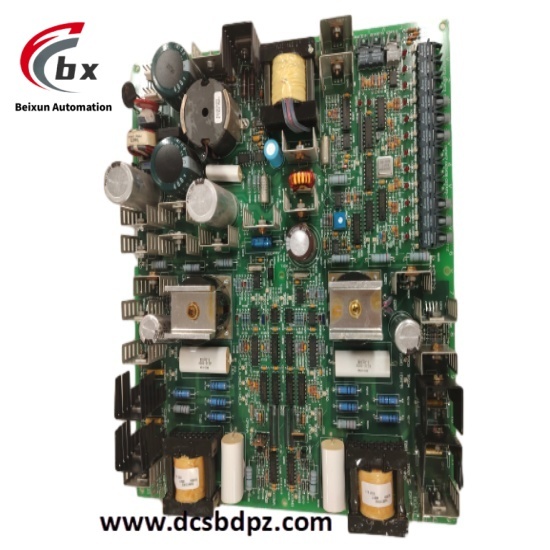

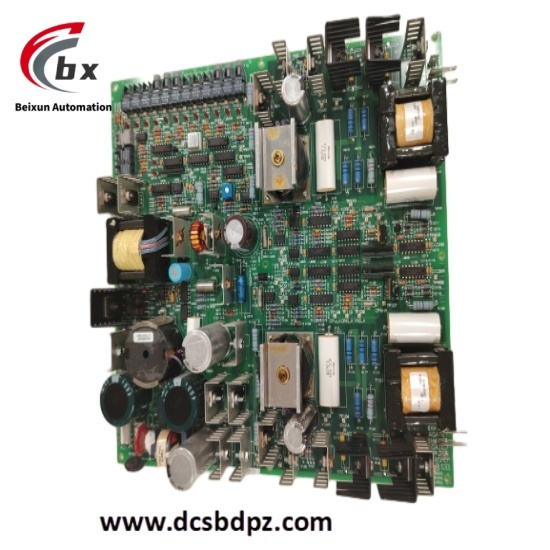

GE DS200FGPAG1AKD Gate pulse amplifier board

GE DS200FGPAG1AKD is a gate pulse amplifier board produced by General Electric (GE), which is mainly used for amplifying and shaping pulse signals for subsequent circuit use. It has three main functions, namely switch status monitoring, switch power supply, and gate drive. It has built-in door drive and status circuits, as well as 15 fiber optic connectors

Tag：GE DS200FGPAG1AKD

GE DS200FGPAG1AKD Gate pulse amplifier board

Basic information
Product Name: DS200FGPAG1AKD Gate Pulse Amplifier Board
Manufacturer: General Electric (GE)
Series: Mark V Speedtronic

Hardware specifications
Components: Featuring over 25 integrated circuits, 5 resistor arrays, multiple electrolytic capacitors, 23 heat sinks, 1 varistor, 1 ceramic disk capacitor, 3 transformers, 1 inductor coil, as well as numerous metal films and CCR resistors.

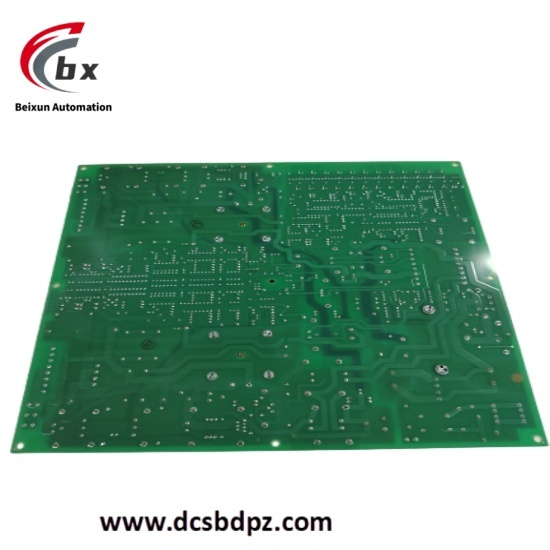

Installation holes: There are holes drilled in the corners, edges, and center of the circuit board for installation, and the factory drilled installation holes are surrounded by insulating material to prevent surface voltage damage.
