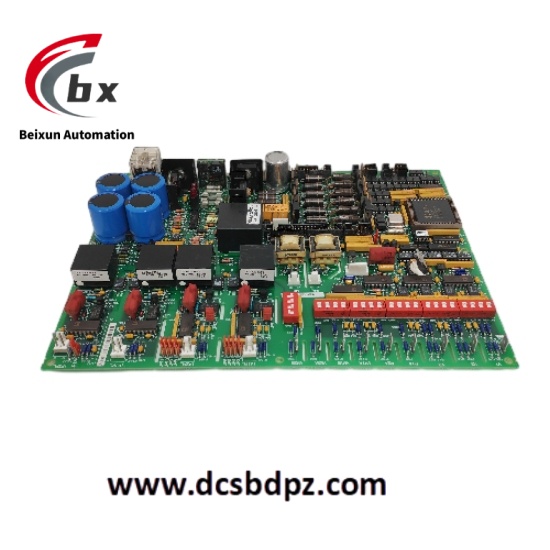

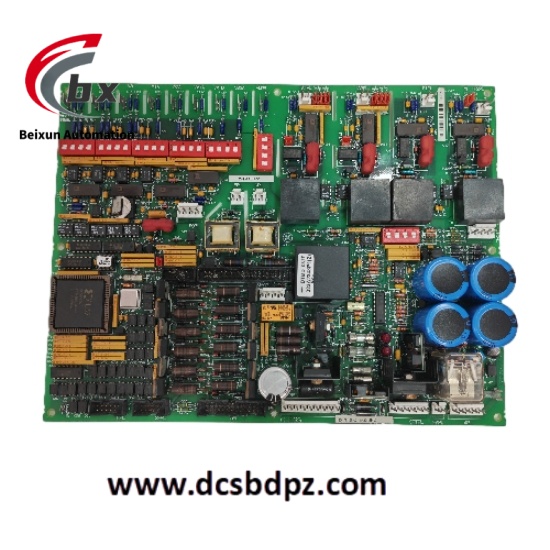

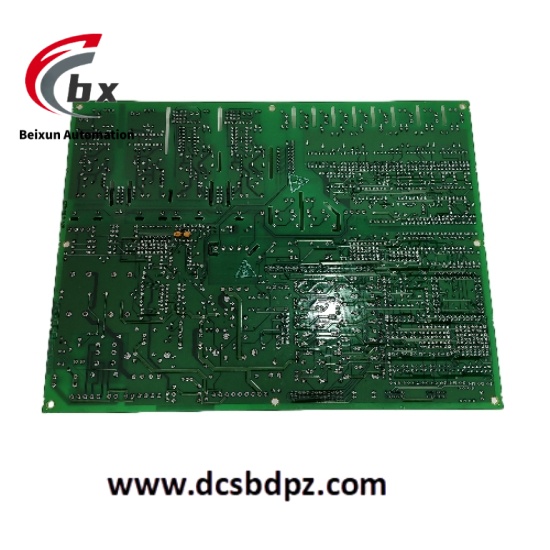

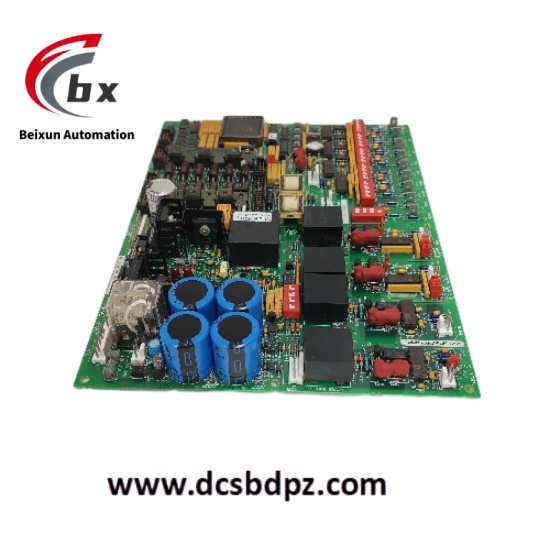

GE DS200DCFBG2BNC MRP445970 DC field bus interface module
GE DS200DCFBG2BNC MRP445970 is a DC fieldbus interface module, mainly used in GE's Mark VIe and other industrial control systems. This module is responsible for the transmission and conversion of DC signals, enabling efficient communication between the control system and on-site DC equipment. It can stably transmit DC signals from on-site equipment to the control system, and at the same time receive instructions from the control system and send them to the equipment. It is a key component to ensure the collaborative work between DC equipment and the control system.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
GE DS200DCFBG2BNC MRP445970 DC field bus interface module
Specific Parameters
- Power Supply Parameters
- Supply Voltage: 24V DC
- Power Current: Maximum 0.5A
- Interface Parameters
- Interface Type: BNC interface
- Communication Rate: 1Mbps
- Transmission Distance: Maximum 1000m (shielded cable)
- Signal Parameters
- Input Signal Type: DC voltage signal (0-10V DC)
- Output Signal Type: DC voltage signal (0-10V DC)
- Signal Accuracy: ±0.1% of full scale
- Environmental Parameters
- Operating Temperature Range: 0°C to 60°C
- Storage Temperature Range: -40°C to 85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Physical Parameters
- Dimensions: 150mm (length) × 100mm (width) × 50mm (height)
- Weight: Approximately 0.3kg
Product Performance
- Stable Signal Transmission: Supporting a communication rate of 1Mbps, it can achieve fast and stable transmission of DC signals, ensuring the timeliness and accuracy of data interaction between the control system and on-site equipment, and reducing control deviations caused by signal transmission delay.
- High-Precision Signal Processing: With a signal accuracy of ±0.1% of full scale, it can accurately process input and output DC signals, ensuring the integrity of signals during transmission and conversion, and meeting the high requirements for signal accuracy in industrial control.
- Adaptability to Wide Environmental Range: It can operate stably in the operating temperature range of 0°C to 60°C and relative humidity of 5% to 95% (non-condensing), adapting to different temperature and humidity conditions in industrial sites, and improving the applicability of the module in complex environments.
- Long-Distance Transmission Capability: When used with shielded cables, the maximum transmission distance can reach 1000m, which can meet the wiring needs of most industrial sites without additional relay equipment, reducing the wiring cost and complexity of the system.
