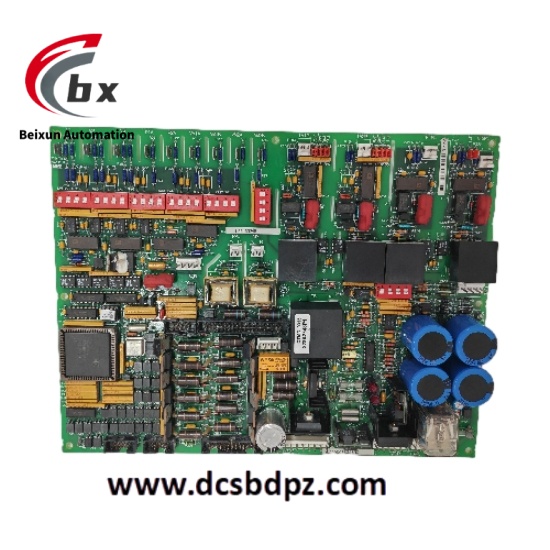

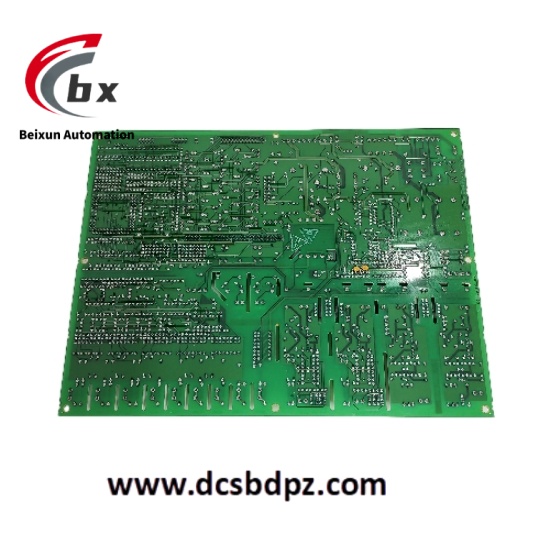

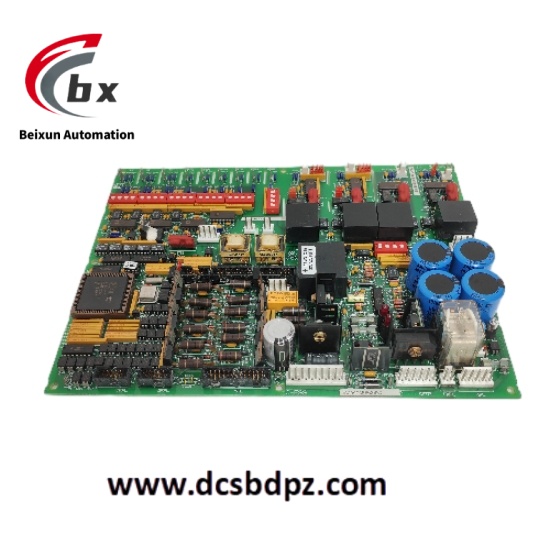

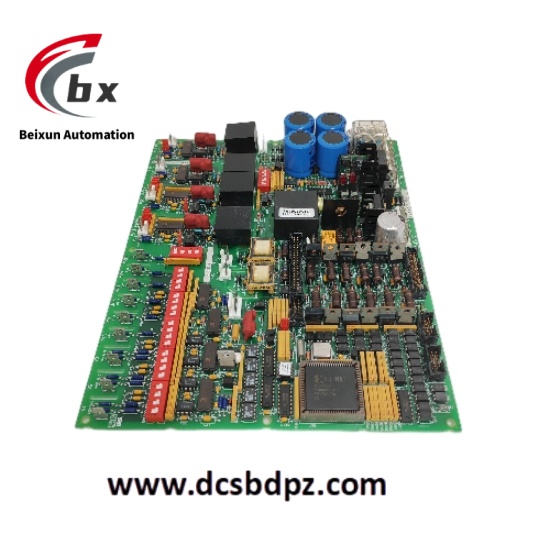

GE DS200DCFBG2BNC MRP433745 Core power supply and feedback module
The GE DS200DCFBG2BNC MRP433745 is a core power supply and feedback module in GE Speedtronic control systems, designed for the control and protection of large rotating equipment such as gas turbines, steam turbines, and wind turbines. By integrating DC control power, motor excitation circuits, and drive circuits, it directly participates in the core control functions of equipment, ensuring stable operation of the control system. The module supports multiple industrial Ethernet protocols, features high-precision signal acquisition and fast response capabilities, and provides real-time diagnostic data for equipment status monitoring.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
GE DS200DCFBG2BNC MRP433745 Core power supply and feedback module
Specific Parameters
- Input Voltage: 24VDC
- Output Frequency: 0 to 500kHz (dynamically adjusted based on input voltage)
- Operating Temperature Range: -20°C to 70°C
- Storage Temperature Range: -40°C to 85°C
- Protection Rating: IP20 (panel mounting)
- Dimensions: 100mm × 80mm × 30mm
- Weight: Approximately 200g
- Communication Interfaces: Supports multiple industrial Ethernet protocols (e.g., Modbus TCP/IP, EtherNet/IP)
- Signal Acquisition Accuracy: 16-bit ADC and DAC, ensuring signal error ≤0.1%
- Response Time: ≤1ms (meeting high-speed control requirements)
- Power Protection: Overvoltage, overcurrent, and short-circuit protection mechanisms
- Configuration Options: 12 jumpers and 7 DIP switches for flexible parameter adjustment
Product Performance
- High-Precision Control: Utilizes 16-bit high-resolution ADC and DAC to ensure accurate signal acquisition and output, meeting the precise control needs of critical equipment like gas turbines.
- Fast Response Capability: Response time ≤1ms enables real-time processing of high-speed control signals, ensuring dynamic stability of equipment.
- Wide Temperature Adaptability: Operates across -20°C to 70°C, suitable for extreme industrial environments.
- High-Reliability Design: Features overvoltage, overcurrent, and short-circuit protection. The circuit board uses normally coated PCB for strong environmental resistance.
- Flexible Communication Architecture: Supports multiple industrial Ethernet protocols for seamless integration with other control systems, enabling data sharing and remote monitoring.
- Integrated Diagnostic Functions: Equipped with 2 LED indicators and 1 neon lamp for intuitive display of module status and fault information, reducing maintenance complexity.
