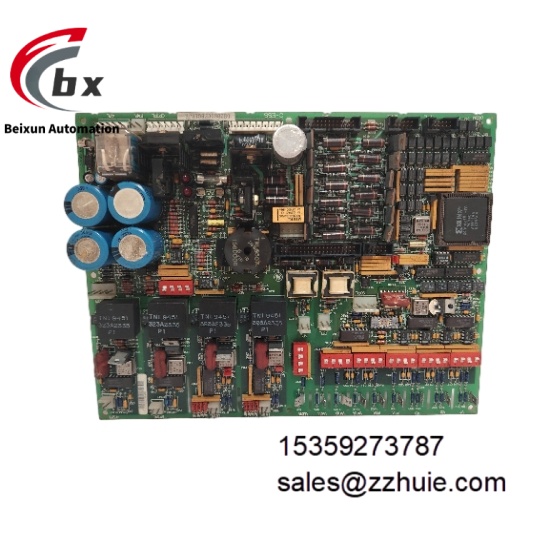

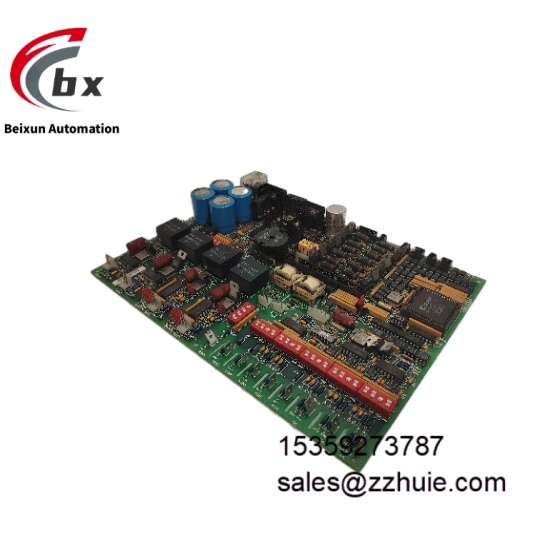

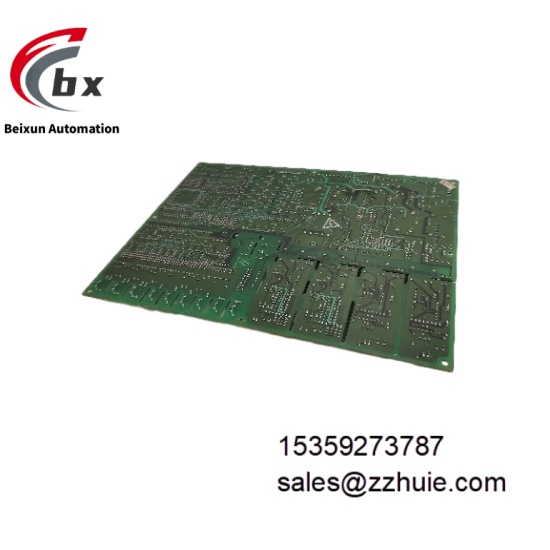

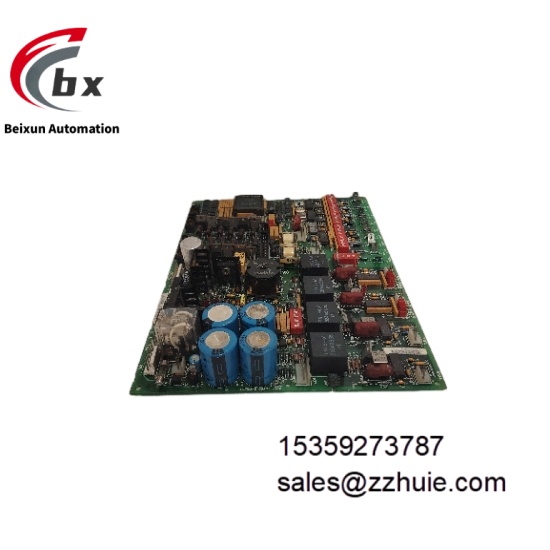

GE DS200DCFBG1BJB DC control board

Specific Parameters

Electrical Parameters
Supply Voltage: 5VDC (provided by DriveStack backplane)
Signal Configuration:
Digital Input: 16 channels dry contact (24V DC excitation)
Digital Output: 8 channels relay contacts (250V AC/30V DC, 5A)
Analog Input: 4 channels 4-20mA (accuracy ±0.1% full scale)
Analog Output: 2 channels 4-20mA (accuracy ±0.2% full scale)
Resolution: 16-bit (analog signal conversion)
Isolation Level: 2.5kVAC between input/output/power supply (1 minute)
Communication Interfaces: 1×CANopen, 1×RS485 (Modbus RTU)
Protection Functions: Overcurrent protection, overvoltage protection, overtemperature protection, communication interruption protection
Environmental Parameters
Operating Temperature: -25°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61000-6-2 industrial standard
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Dimensions: 36mm (W) × 130mm (H) × 180mm (D)
Weight: Approximately 350g
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant ABS plastic (UL 94 V-0 grade)

Product Performance

DS200DCFBG1BJB adopts a 32-bit high-performance microprocessor with an operation speed of 80 MIPS and a minimum control cycle of 10ms, enabling rapid response to motor load changes and achieving speed control accuracy of ±0.01%. The 16-bit high-precision A/D conversion chip combined with digital filtering algorithm results in analog signal acquisition error ≤0.1%, ensuring the accuracy of current and voltage parameter monitoring.

The channel-level 2.5kVAC electrical isolation design combined with EMC filtering circuit provides common mode rejection ratio ≥90dB, effectively resisting electromagnetic interference and ground loops in industrial sites. Supporting hot-swap function, module replacement does not require shutdown, reducing maintenance downtime by more than 90%. Integrated with comprehensive self-diagnosis functions, it can real-time detect channel faults, power abnormalities and communication interruptions, with fault response time ≤5ms, triggering alarms via relay output.

Seamlessly compatible with GE DriveStack series power modules, data transmission delay ≤20ms, with mean time between failures (MTBF) ≥150,000 hours, meeting industrial-grade continuous operation requirements.
