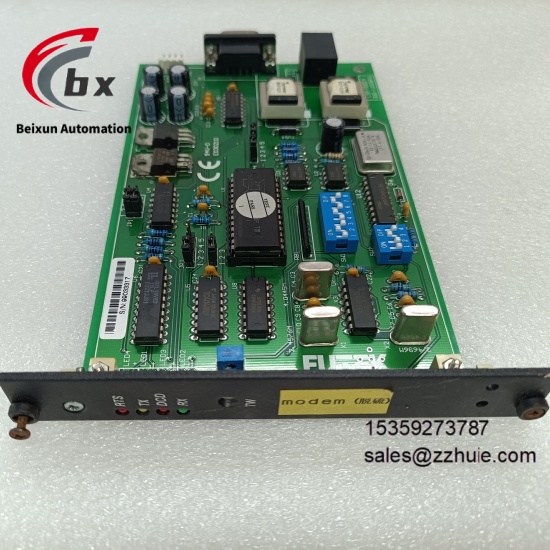

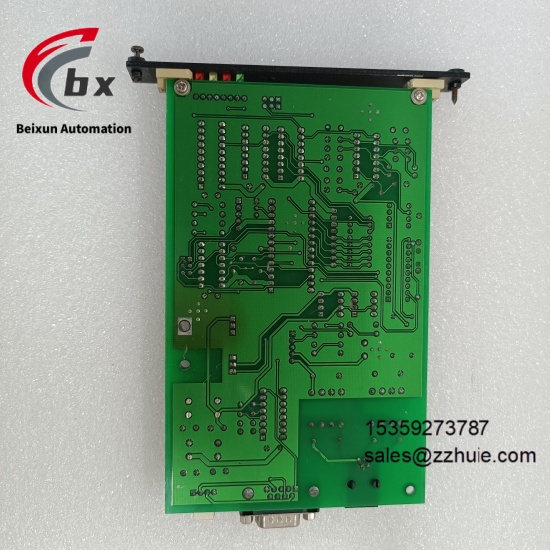

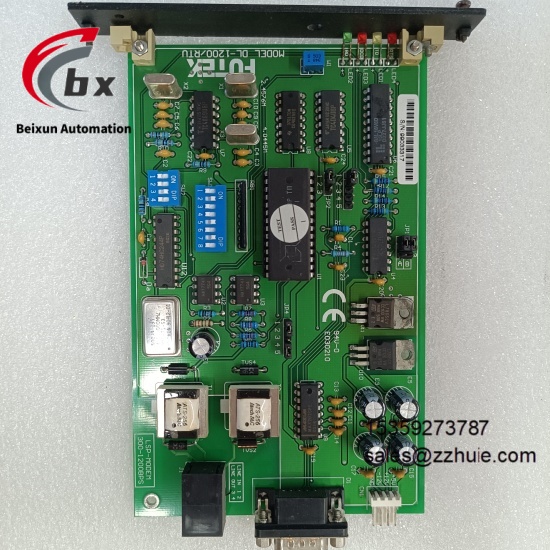

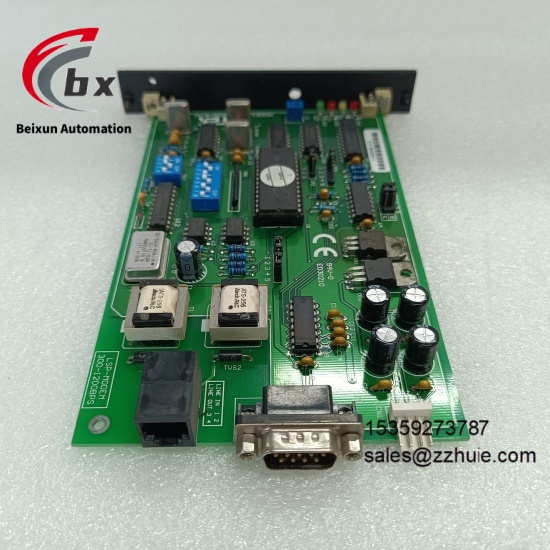

GE DL-1200 RTU High performance remote terminal unit

GE DL-1200 RTU High performance remote terminal unit

SPECIFIC PARAMETERS​

Brand GE​

Product Series Industrial Automation Remote Terminal Unit (RTU) Series​

Product Type High-performance Distributed Remote Terminal Unit​

Model DL-1200 RTU​

Working Voltage 24VDC Wide Range Adaptation 18-32VDC / 110-240VAC (Optional)​

Working Temperature -40℃ to 70℃​

Storage Temperature -55℃ to 85℃​

Relative Humidity 5% to 95% Non-condensing (No Dew Formation)​

Protection Level IP67 (Outdoor Installation) / IP20 (In-cabinet Installation, Optional)​

Installation Method Wall-mounted Installation/Rail-mounted Installation​

Processor 32-bit ARM Cortex-A9 1GHz Main Frequency​

Memory Configuration 1GB DDR3 RAM 8GB eMMC Flash​

I/O Channel Configuration Digital Input: 16 Channels (Dry Contact/Wet Contact Optional) Digital Output: 16 Channels (Transistor/NPN/PNP Optional) Analog Input: 8 Channels (4-20mA/0-10V/RTD/Thermocouple) Analog Output: 4 Channels (4-20mA/0-10V) Pulse Input: 4 Channels (Frequency/Counting Function)​

Communication Protocols Modbus RTU/TCP DNP3.0 IEC 60870-5-101/103/104 IEC 61850 MQTT HTTP/HTTPS​

Communication Interfaces 2 Gigabit Ethernet Ports 4 RS485/RS232/RS422 Serial Ports (Configurable) 1 CANopen Interface Optional 4G/LTE/5G Wireless Communication Module Optional WiFi/Bluetooth Module 1 USB 2.0 Port​

Data Transmission Rate 1Gbps for Ethernet Ports Maximum 115.2Kbps for Serial Ports Downlink Rate ≥100Mbps for Wireless Modules​

Size 220mm×180mm×80mm (Wall-mounted) / 120mm×150mm×60mm (Rail-mounted)​

Weight 1.5kg (Wall-mounted) / 1.2kg (Rail-mounted)​

Power Consumption Typical 20W Maximum 30W​

Certification Qualification CE UL CSA IEC 61010-1 IEC 61850-3 ATEX (Explosion-proof Certification, Optional)​

Compatible System GE Predix Platform Mainstream SCADA Systems (Intouch/iFix/WinCC) Third-party Industrial Automation Monitoring Platforms​

Diagnostic Function Support Hardware Self-test Channel Fault Detection Communication Abnormality Alarm Power Supply Status Monitoring Data Integrity Verification​

MTBF (Mean Time Between Failures) ≥200,000 Hours​

Redundancy Function Support Dual-machine Hot Standby Redundancy Communication Link Redundancy Power Supply Redundancy (Optional)​

PRODUCT PERFORMANCE​

Equipped with 32-bit ARM Cortex-A9 1GHz main frequency processor, combined with 1GB DDR3 RAM, quickly processing large-scale collected data and complex control logic, ensuring real-time response​

Rich channel configuration of 16 digital I/O, 8 analog inputs and 4 analog outputs, adapting to the remote monitoring and control needs of multi-parameter and multi-device​

Supports acquisition of multiple signal types such as 4-20mA, RTD and thermocouple, which can be directly connected to industrial sensors such as temperature, pressure and flow without additional conversion modules​

Compatible with mainstream industrial protocols such as Modbus, DNP3.0 and IEC 61850, as well as MQTT IoT protocol, realizing seamless interconnection with SCADA systems and industrial internet platforms​

Industrial-grade wide-temperature design, can operate stably in the temperature range of -40℃ to 70℃ and non-condensing humidity environment of 5%-95%, adapting to extreme outdoor scenarios such as deserts, alpine regions and coastal areas​

IP67 high protection level (wall-mounted), with dustproof, waterproof and corrosion-resistant capabilities, can be directly installed in outdoor unattended stations without additional protective boxes​

Supports multi-link redundancy design such as gigabit Ethernet and 4G/LTE/5G wireless communication, ensuring uninterrupted remote data transmission and meeting the communication reliability requirements of critical business​

Built-in edge computing function, which can locally execute tasks such as control logic, data filtering and abnormal alarm, reducing dependence on the cloud and lowering network bandwidth occupancy​

Supports remote configuration, program upgrade and fault diagnosis, and equipment maintenance can be completed through the network without on-site attendance, greatly reducing operation and maintenance costs​

Dual-machine hot standby and power supply redundancy are optional, seamless switching in case of critical component failure, ensuring continuous system operation and meeting industrial-grade high availability requirements​

Equipped with data encrypted transmission and storage functions, complying with industrial information security level protection requirements, preventing data leakage and tampering​

Modular design supports function expansion, and wireless communication modules and I/O expansion modules can be added according to scenario requirements, adapting to remote monitoring projects of different scales​
