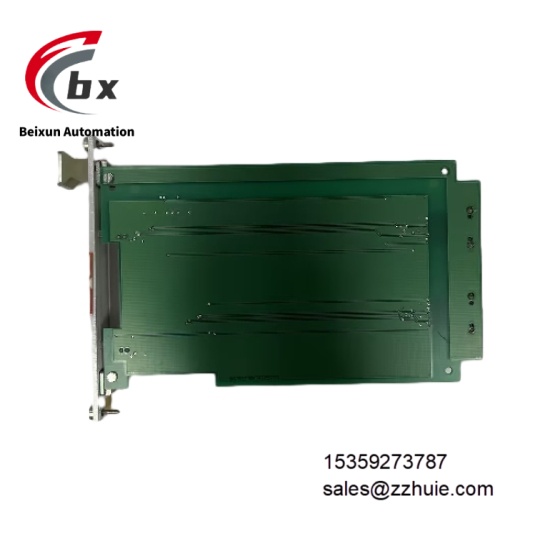

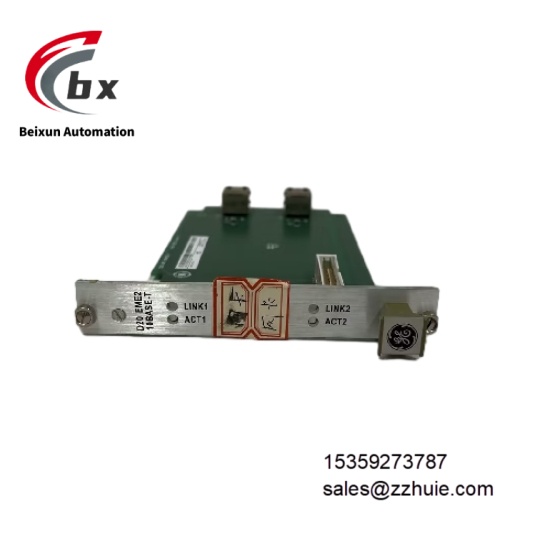

GE D20 EME210BASE-T Ethernet communication and storage integrated module

Specific Parameters

Electrical Parameters
Communication Rate: 10 Mbps
Communication Interface: 10BASE-T Ethernet interface, using RJ45 connector, supporting twisted-pair connection
Storage Capacity: 8 MB or 16 MB battery-backed SRAM
Power Requirement: 24V DC, supporting 100-240V AC wide-range input adaptation
Isolation Level: 2.5kV AC between signal channels and system (1 minute)
Protection Functions: Overcurrent protection, short circuit protection, overvoltage protection
Input Characteristics: Switching input, low level < 1V, high level 4-30V, input resistance 3kΩ
Power Consumption: ≤0.5W under normal operation
Environmental Parameters
Operating Temperature: -45°C to 80°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 10% to 90% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61326-1 industrial grade standard
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Protection Class: IP67 (module itself)
Mechanical Parameters
Dimensions: 160mm×100mm×30mm (refer to same series module standard)
Weight: Approximately 400g (refer to same series module standard)
Mounting Method: D20 series standard rack mounting, compatible with VME multi-slot chassis
Housing Material: Flame-retardant epoxy resin (UL 94 V-0 grade)
Terminal Type: RJ45 communication interface, spring-loaded power terminals, compatible with 14-22 AWG wires

Product Performance

D20 EME210BASE-T adopts a dedicated Ethernet control chip, supports star topology connection, with data transmission delay ≤10ms, ensuring real-time interaction of industrial control signals. The storage unit is equipped with a long-life lithium battery backup, which can maintain data storage for ≥1000 hours after power failure, avoiding loss of key configuration and operating data.

Adopting industrial-grade anti-interference circuit design, the common mode rejection ratio is ≥120dB, which can maintain stable communication in strong electromagnetic environments such as substations and industrial plants. Built-in comprehensive self-diagnostic function, it real-time monitors communication link integrity, power status and storage unit health, with fault diagnosis coverage ≥99%, triggering LED indicator alarm within 5ms after fault occurrence.

The modular design supports on-site upgrade, and the capacity can be expanded by replacing the storage chip without disassembling the whole machine. Fully compatible with D20ME main module, D20C I/O module, etc., supporting DNP3, Modbus and other industrial protocols, the mean time between failures (MTBF) is ≥400,000 hours, adapting to long-term continuous operation scenarios.
