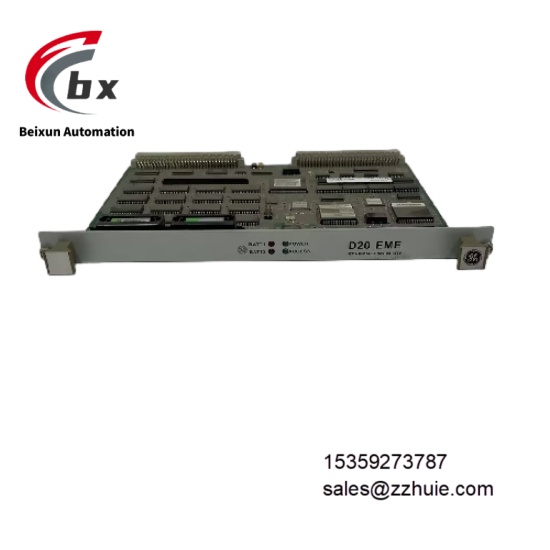

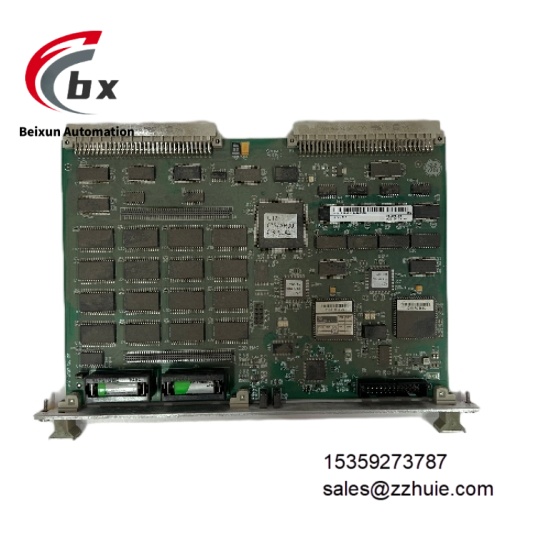

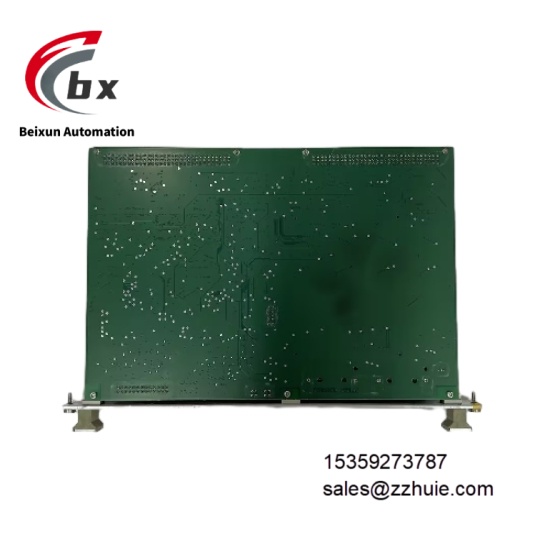

GE D20 EME 27-APR-13 Integrated control and communication module

Specific Parameters

Electrical Parameters
Control Power Supply: 110-240V AC/DC, supporting redundant configuration
Current Input: 5A/1A (CT secondary input)
Voltage Input: 100V AC (PT secondary side)
Communication Interfaces: 1×Ethernet (Modbus TCP/IP), 1×RS485 (Modbus RTU/DNP3)
Output Signals: Thyristor trigger pulse, alarm/trip dry contact signal
Isolation Level: 2.5kV AC between signal channels and system (1 minute)
Protection Functions: Overload, short circuit, locked rotor, phase loss, earth fault, overvoltage/undervoltage protection
Measurement Accuracy: Current/voltage ±0.2% FS, power ±0.5% FS
Power Consumption: Typical ≤100W (including communication and display modules)
Environmental Parameters
Operating Temperature: -25℃ to 70℃
Storage Temperature: -40℃ to 85℃
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61326-1 industrial grade standard
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Protection Class: IP40 (panel part), IP20 (backplane part)
Mechanical Parameters
Dimensions: 144mm×144mm×120mm (panel size)
Weight: Approximately 800g
Mounting Method: Panel embedded installation, compatible with 35mm DIN rail
Housing Material: Flame-retardant engineering plastic (UL 94 V-0 grade)
Terminal Type: Plug-in terminals, compatible with 14-22 AWG wires
Display Interface: 128×64 dot matrix LCD with backlight

Product Performance

D20 EME 27-APR-13 is equipped with a high-performance DSP processor, supporting three regulation modes: constant voltage, constant power factor and constant reactive power. The static error of voltage regulation is ≤±0.25% rated voltage, and the dynamic response time is ≤50ms, which can quickly suppress voltage fluctuations caused by grid load changes. It integrates a Power System Stabilizer (PSS) interface, which can effectively suppress low-frequency oscillations and improve grid stability.

The protection system response time is ＜10ms, which can real-time monitor motor winding temperature, current and voltage abnormalities and other states. It realizes rotor overload protection through I²t integral curve, with fault diagnosis coverage ≥99%, supporting 512 time-stamped event records for fault tracing. Adopting dual isolation and anti-interference design, the common mode rejection ratio is ≥120dB, maintaining stable communication and control in strong electromagnetic environments.

Seamlessly compatible with D2000 automation systems and third-party DCS, it supports online parameter configuration and logic configuration via ToolboxST software, enabling function upgrade without shutdown. The mean time between failures (MTBF) is ≥400,000 hours, adapting to continuous operation in industrial scenarios.
