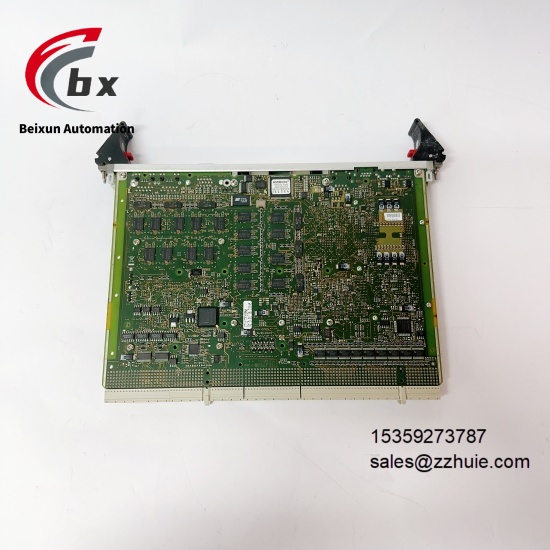

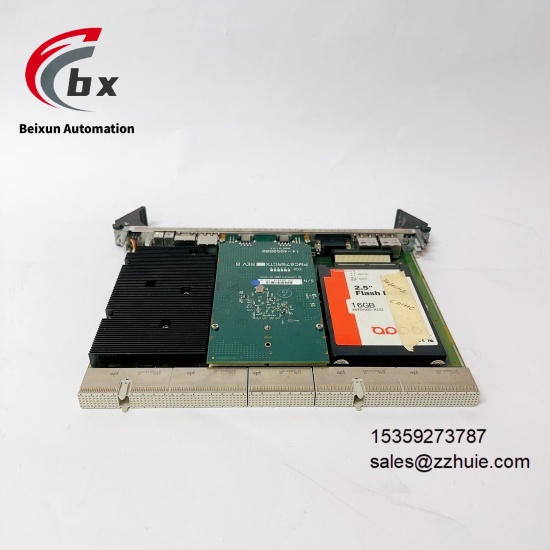

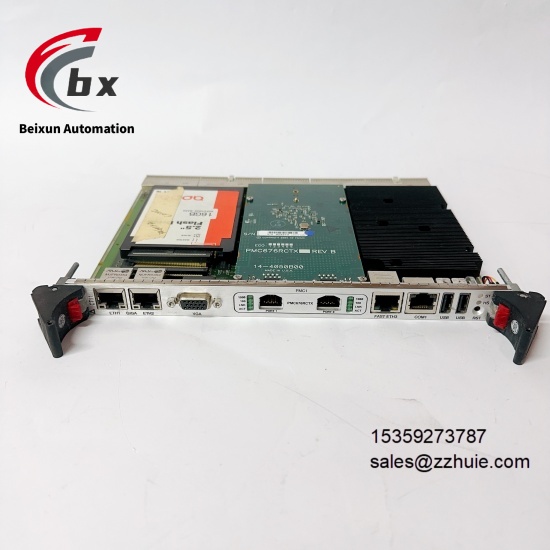

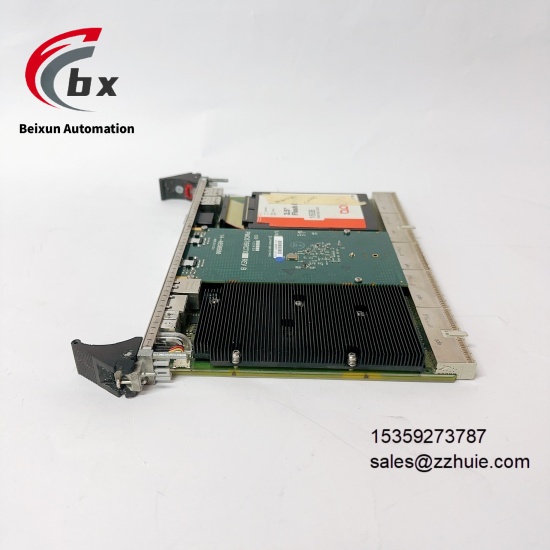

GE CT11T7F10PN1 PMC676RCTX V2.3 01 16 C1145 CR11 V2.x Intelligent programmable control module
Specific Parameters
Electrical Parameters
Operating Voltage 24VDC (±10%), supporting redundant power supply (optional)Processor 32-bit industrial-grade ARM processor, main frequency 800MHzMemory Configuration 512MB DDR3 RAM, 256MB non-volatile flash memoryDigital Inputs 16 independent digital input channels, supporting 24VDC source/sink inputDigital Outputs 16 independent digital output channels, 2A per channel (24VDC)Analog Inputs 8 differential analog input channels, compatible with 4-20mA current signal, 0-10V voltage signalAnalog Outputs 4 analog output channels, configurable to 4-20mA current signal or 0-10V voltage signalMeasurement Accuracy Analog measurement error ≤±0.1% of full scale, digital response time ≤1msCommunication Protocols Compatible with Modbus RTU/TCP, Profinet, EtherNet/IP, OPC UACommunication Interfaces 2 100Mbps Ethernet ports, 1 RS-485 serial port, 1 USB configuration portProtection Features Built-in overvoltage protection, overcurrent protection, reverse polarity protection, electromagnetic shielding protectionCertification Standards Compliant with CE, UL, cUL, IEC 61131-2, IEC 61010-1 standards
Mechanical Parameters
Overall Dimensions 140mm×100mm×35mm, compact design suitable for dense installationWeight Approximately 0.5kg, lightweight facilitating installation and deploymentMounting Method 35mm standard DIN rail mounting, compatible with industrial control cabinet layoutHousing Material Industrial-grade high-strength flame-retardant engineering plastic with anti-electromagnetic interference and dustproof performanceConnection Method Plug-in spring terminals, compatible with 0.5-1.5mm² shielded cablesProtection Rating IP20, suitable for indoor industrial control cabinet environmentsStatus Indication Equipped with power (green), operation (yellow), fault (red), communication (blue) LED indicators
Environmental Parameters
Operating Temperature -40℃ to 70℃, no performance derating over the entire temperature rangeStorage Temperature -55℃ to 85℃, meeting extreme storage and transportation requirementsRelative Humidity 5% to 95% (non-condensing), adapting to high-humidity industrial scenariosVibration Resistance Complies with IEC 60068-2-6 standard, 2g acceleration at 5Hz-500Hz frequency rangeShock Resistance Complies with IEC 60068-2-27 standard, 15g acceleration (11ms duration)EMC Compliance Complies with EN 55014-1, IEC 61000 standards, low electromagnetic interference and high anti-interference capability
Product Performance
Efficient processing speed: 800MHz processor + large-capacity memory, execution cycle of complex logic programs ≤2msRich I/O configuration: Multi-channel analog/digital interfaces, adapting to various types of field sensors and actuatorsWide communication compatibility: Natively supports mainstream industrial protocols, seamlessly connecting to DCS, SCADA systems and PLCHigh programming flexibility: Supports ladder diagram, function block diagram, structured text and other multi-language programmingStrong expansion capability: Supports module cascading expansion, up to 32 I/O expansion modules can be addedHigh operational reliability: Industrial-grade components + multiple protection designs, Mean Time Between Failures (MTBF) ≥600,000 hoursComprehensive self-diagnostic functions: Real-time monitoring of module hardware, I/O channels and communication link status, instant fault feedbackExcellent operational convenience: Supports local USB configuration and remote network debugging, firmware upgrading, reducing maintenance costs
