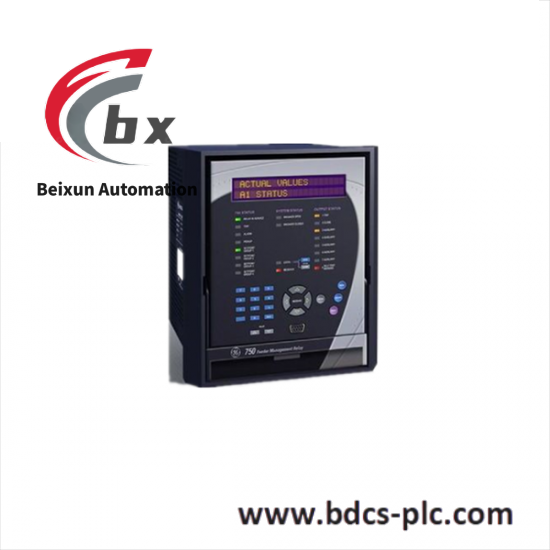

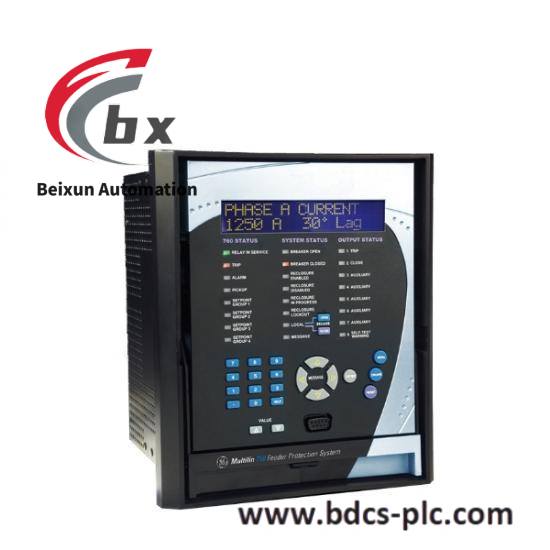

GE 750-P5-G5-S5-HI-A20-R-T Feeder Management Relay
The GE 750-P5-G5-S5-HI-A20-R-T is a highly advanced feeder management relay designed to provide robust protection and efficient control for industrial power distribution systems. It features four current channels, three voltage channels, and fourteen logic input states, enabling comprehensive monitoring and management of power distribution networks.
# of Setpoint Groups:4
Ambient Storage Temperature Range:-40°F to +176°F
Frequency:25 to 60 Hz nominal
Insulation Voltage:300 V
Manual:1601-0120-AE
Operating Temperature Range:-40°F to +140°F
Pollution Degree:II
Designed for seamless integration into industrial control systems, the GE 750-P5-G5-S5-HI-A20-R-T combines high-performance protection with ease of use. Its compact design makes it ideal for mounting on a standard 19-inch panel, either alone or alongside other 750 series units.
This relay boasts an impressive set of features, including four current channels and three voltage channels for comprehensive waveform capture. With fourteen logic input states and eight output relays, it offers extensive customization options to meet specific application needs.
Built to withstand demanding industrial environments, the GE 750-P5-G5-S5-HI-A20-R-T supports operating temperatures ranging from -40°F to +140°F, ensuring reliable operation in extreme conditions.
Its durable construction includes a robust insulation voltage rating of 300V, making it suitable for a wide range of applications within the industrial sector. Additionally, the relay provides overvoltage pickup level capabilities from 0 to 1.25 × VT in steps of 0.01, enhancing its protective functions.
With its intuitive red breaker closed LED indicator, users can easily monitor system status and make necessary adjustments. This feature enhances operational safety and efficiency, making the GE 750-P5-G5-S5-HI-A20-R-T a valuable asset in any industrial setting.
