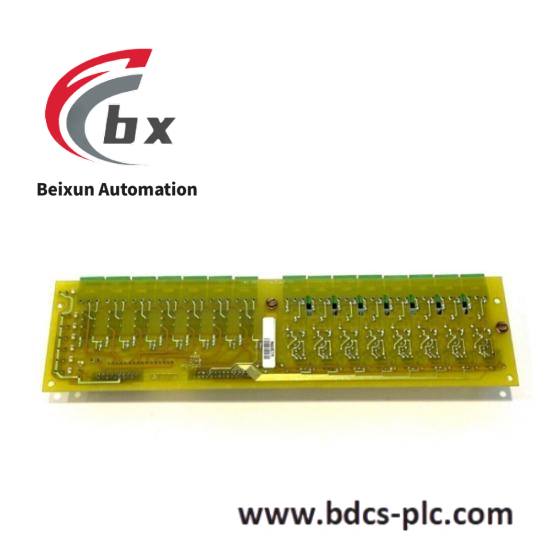

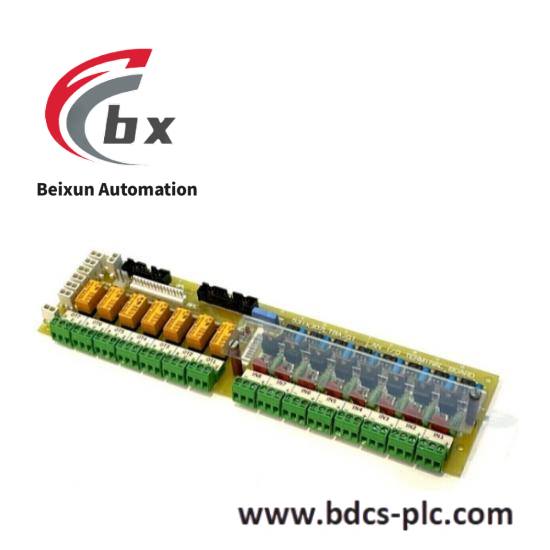

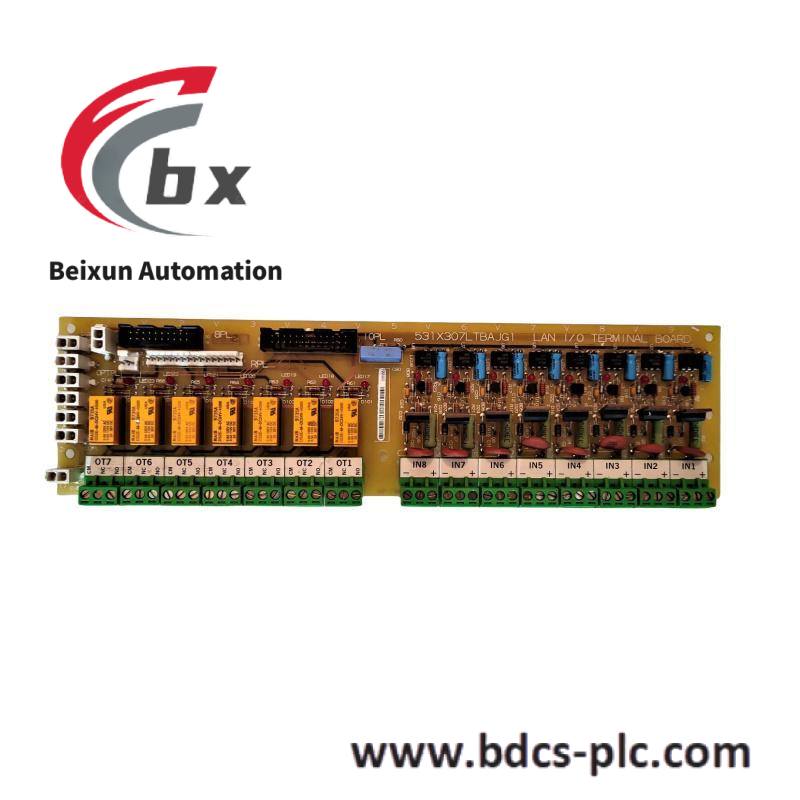

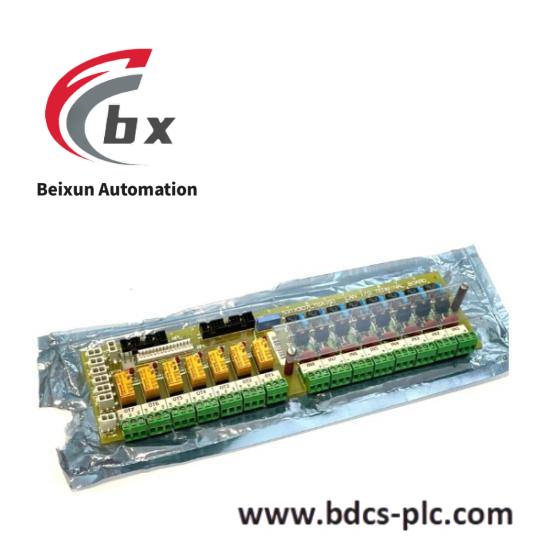

GE 531X307LTBAJG1 LAN Terminal Board – Industrial Control Module
The 531X307LTBAJG1 is a specialized LAN terminal board designed by General Electric for industrial automation systems. It facilitates the connection between drives, exciters, and peripheral devices like interlocks, pushbuttons, and indicator lights, enhancing the communication capabilities of your control systems.
Board Type:LAN Terminal Board
Series:531X Series
Compatibility:Suitable for GE Drive and Exciter Cabinets
Input Configuration:Eight 24VDC Input Plugs
Interface Connectors:Two male vertical pin cable connectors (20-pin and 26-pin), two male header connectors, and eight 2-position plug connectors
Terminal Strips:Fifteen terminal strips, each with three positions (IN1-IN8 and OT1-OT7)
Relays:Seven relays
Transistors:Sixteen transistors
Additional Components:Fifteen resistors and capacitors
The GE 531X307LTBAJG1 is meticulously engineered for industrial applications requiring high reliability and robust performance.
Its design ensures seamless integration with existing systems, enhancing operational efficiency.
With its versatile input ports and comprehensive interface connectors, this terminal board supports a wide range of external devices, making it an essential component for modern industrial control systems.
Its compact yet durable construction is ideal for environments where space is limited and reliability is paramount.
Designed for ease of installation, the 531X307LTBAJG1 simplifies the process of connecting peripheral devices to control systems, thereby reducing downtime and improving productivity.
Additionally, its compatibility with the 531X family of replacement boards makes it a reliable upgrade option for existing systems.
