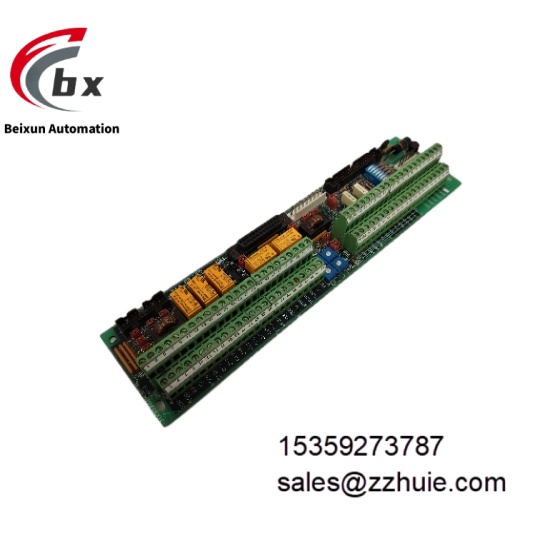

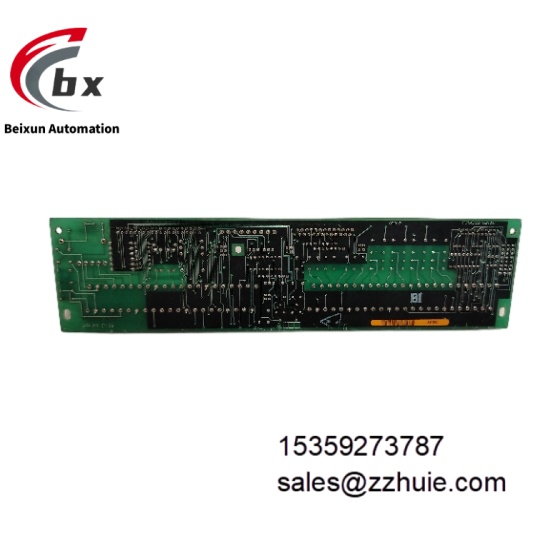

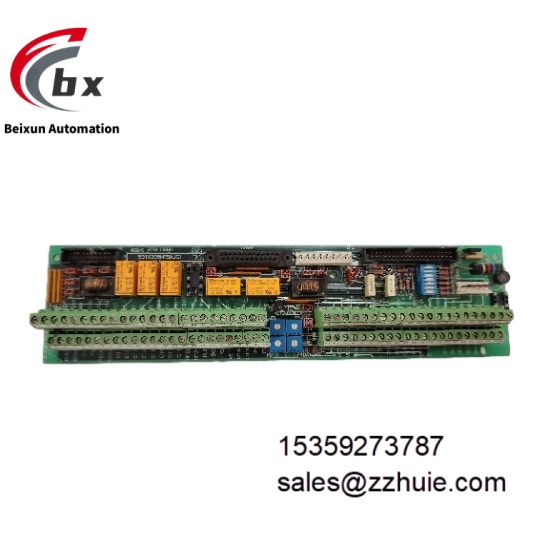

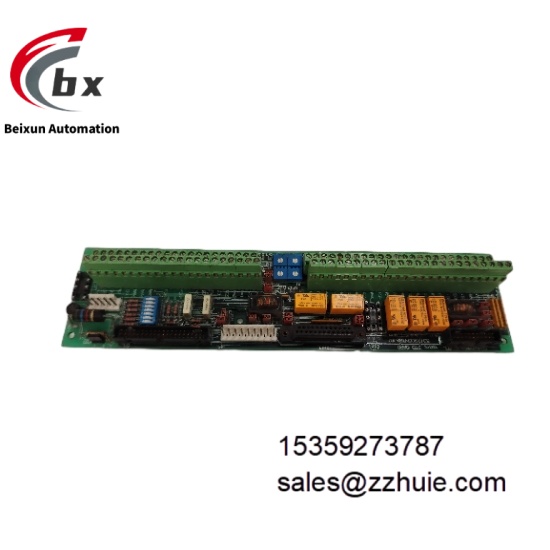

GE 531X305NTBAJG1 Analog input module

Specific Parameters

Electrical Parameters
Supply Voltage: 5VDC (provided by Mark VIe backplane)
Channel Configuration: 8-channel differential analog input
Signal Types: Thermocouples (J/K/T/E/R/S/B types), RTDs (PT100/PT500/PT1000), Voltage (±10V/±5V/0-10V), Current (4-20mA/0-20mA)
Resolution: 16-bit (all signal types)
Measurement Accuracy: ±0.1% full scale (25°C); ±0.25% full scale (0-60°C)
Sampling Rate: 10Hz per channel; 80Hz (all channels synchronous)
Isolation Level: 2.5kVAC between channels and between channels and backplane (1 minute)
Communication Interface: Mark VIe backplane bus (data transmission rate 100Mbps)
Environmental Parameters
Operating Temperature: -25°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61000-6-2 industrial standard
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Dimensions: 36mm (W) × 130mm (H) × 180mm (D)
Weight: Approximately 320g
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant ABS plastic (UL 94 V-0 grade)

Product Performance

531X305NTBAJG1 adopts a high-precision 16-bit A/D conversion chip and temperature compensation algorithm, with measurement error ≤0.25% over the full temperature range, ensuring the accuracy and repeatability of process parameter acquisition. The channel-level 2.5kVAC electrical isolation design combined with hardware filtering circuit provides common mode rejection ratio ≥100dB, effectively resisting electromagnetic interference and ground loops in industrial sites.

Supporting hot-swap function, the system remains in normal operation during module replacement, reducing maintenance downtime by more than 90%. Integrated with comprehensive self-diagnosis functions, it can real-time detect channel open circuit, short circuit, overvoltage and module power supply abnormalities, with fault response time ≤10ms, triggering alarms and recording fault codes via the system controller. Seamlessly compatible with Mark VIe control system, data update delay ≤50ms, meeting real-time control requirements, with mean time between failures (MTBF) ≥150,000 hours.
