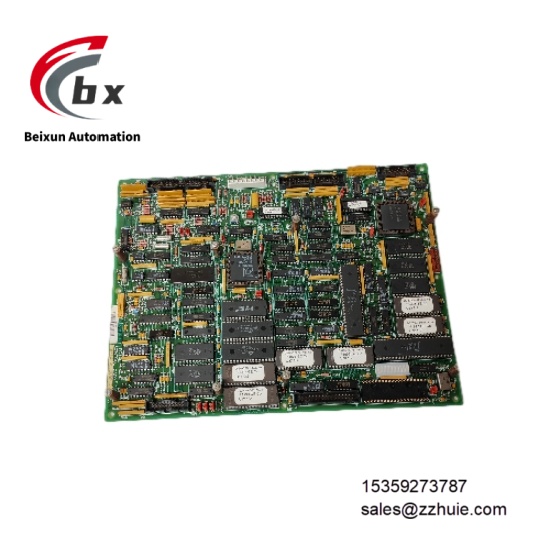

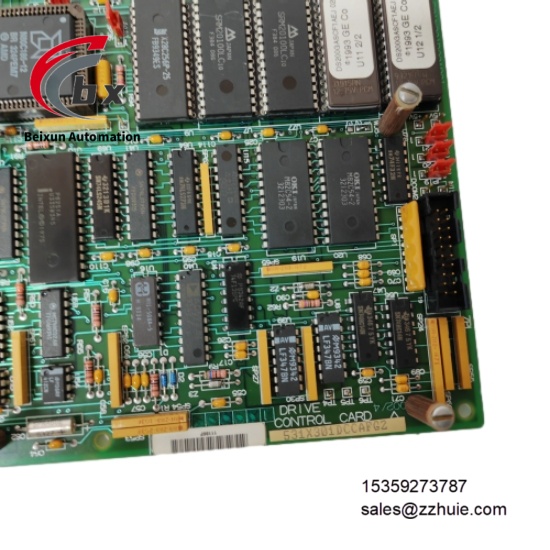

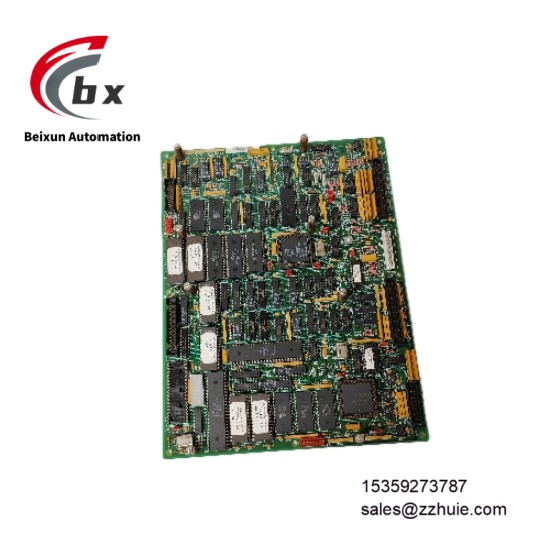

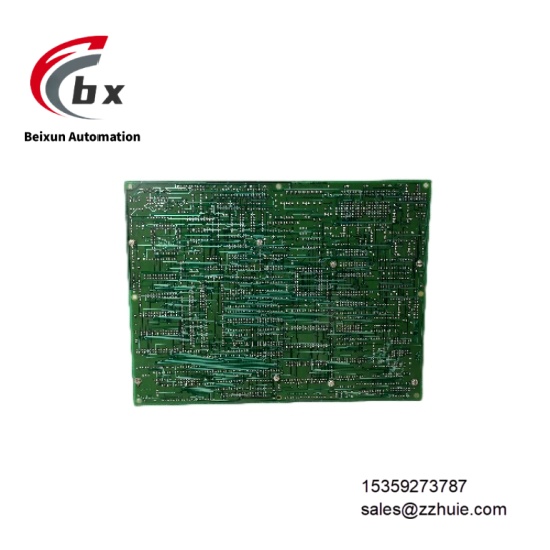

GE 531X301DCCAFG2 Drive control board

GE 531X301DCCAFG2 Drive control board

Specific Parameters

Electrical ParametersPower Supply Voltage: 24V DC (±5%) or 120V AC (±10%), supporting dual redundant power inputsPower Consumption: ≤15W (24V DC), ≤20W (120V AC)Signal Input: 8 analog inputs (4-20mA/0-10V), 16 digital inputs (24V DC, PNP/NPN compatible)Signal Output: 4 analog outputs (4-20mA, maximum load 500Ω), 8 digital outputs (relay contacts, 250V AC/5A)Communication Interfaces: 1 RS485 (supports Modbus RTU), 1 Ethernet (10/100Base-TX, supports EtherNet/IP)Isolation Level: 2.5kVrms electrical isolation between input/output/power supply, compliant with IEC 61010-1 standardDiagnostic Functions: Channel open/short circuit detection, communication interruption alarm, power abnormality monitoring, real-time fault signal output

Environmental ParametersOperating Temperature: -40°C to 75°C (non-condensing environment)Storage Temperature: -55°C to 85°CRelative Humidity: 5% to 95% (non-condensing)Protection Rating: IP20 (module itself, requiring system chassis for overall protection)Vibration Resistance: 10-500Hz frequency range, 1.5g acceleration (sine wave)Shock Resistance: 50g acceleration (11ms duration, compliant with IEC 60068-2-27 standard)EMC Compliance: Complies with IEC 61326-1 standard, common-mode interference immunity ≥120dB, differential-mode interference immunity ≥60dB

Mechanical ParametersOverall Dimensions: 160mm (W) × 100mm (H) × 233mm (D) (compliant with 3U VMEbus mechanical specifications)Housing Material: Cold-rolled steel plate, anti-static coating on surface, with RFI shielding functionWeight: Approximately 1.2kgMounting Method: Standard VME chassis slot mounting, supporting 3U mechanical specificationsWiring Method: Front removable terminal block, supporting wire diameter 0.5-2.5mm²Status Indication: LED indicators (power, communication, input/output fault status)

Product Performance

It has strong system compatibility, adapting to GE Mark V series controllers and related I/O modules. It can be combined with terminal boards such as IS200STCIH1A and IS400TBCIH2C, enabling system integration without additional adaptation components.Signal processing is accurate: analog input measurement accuracy reaches ±0.1% FS, output linearity ≤0.2%, and digital response time ≤1ms, which can accurately capture small changes in equipment operating parameters and ensure rapid execution of control commands.Communication stability is excellent: Ethernet data transmission delay is ≤1ms, RS485 anti-interference transmission distance reaches 1200 meters, supporting redundant communication configuration to ensure seamless data interaction with DCS and SCADA systems without packet loss or interruption.Environmental adaptability is outstanding: the wide temperature operating range of -40°C to 75°C covers extreme industrial scenarios. The 50g shock resistance and 1.5g vibration resistance design ensure the structural stability of the module during equipment transportation and operation, with no risk of contact loosening.Maintenance is convenient: the modular design supports quick plug-and-play replacement. Front LED indicators and built-in diagnostic functions can directly locate channel, communication, or power faults, enabling troubleshooting without disassembling equipment and significantly reducing downtime for maintenance.
