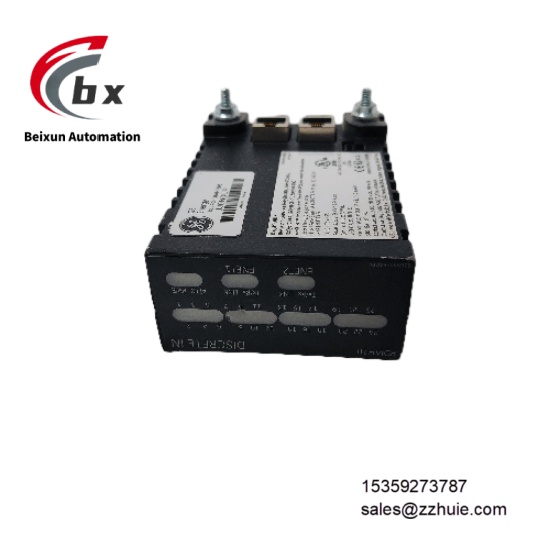

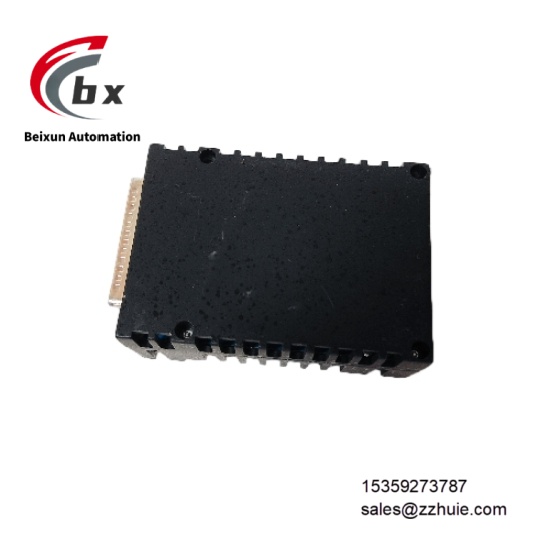

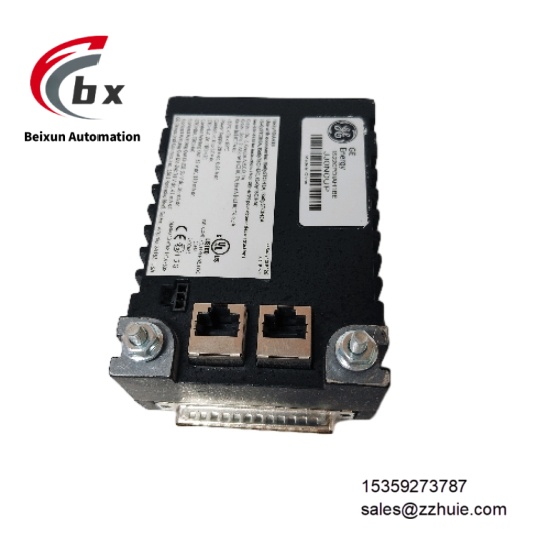

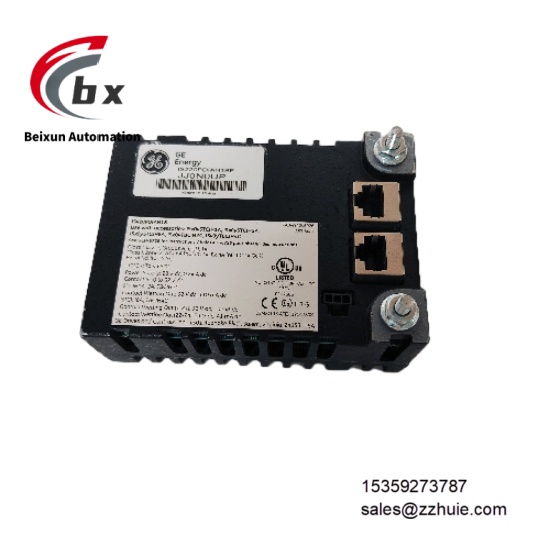

GE 336A5026ADP4 Discrete input I/O module
Specific Parameters
Electrical Parameters
Nominal Power Supply Voltage: 24VDCMaximum Power Supply Voltage: 28.6VDCRated Contact Input Voltage: 32VDC (maximum)Input Channels: 24 independent discrete input channelsIsolation Level: 2.5kVrms electrical isolation between input and backplaneDiagnostic Functions: Supports channel fault detection, power abnormality alarm, module status feedbackResponse Time: ≤1msPower Consumption: ≤15WCompliant Standards: UL certified, suitable for hazardous location specifications
Environmental Parameters
Operating Temperature: -30°C to +65°C (non-condensing environment)Storage Temperature: -40°C to +85°CRelative Humidity: 5% to 95% (non-condensing)Protection Rating: IP20 (module itself, requiring system chassis for overall protection)Vibration Resistance: 10-500Hz frequency range, 1g acceleration (sine wave)EMC Compliance: Complies with IEC 61326-1 standard
Mechanical Parameters
Overall Dimensions: 160mm (W) × 100mm (H) × 220mm (D)Housing Material: Flame-retardant engineering plastic (UL94 V-0 grade)Weight: Approximately 1.2kgMounting Method: Standard rack slot mountingWiring Method: Front removable terminal block, supporting wire diameter 0.5-2.5mm²Status Indication: LED indicators (power, operation, channel fault, overall fault)
Product Performance
It has strong system compatibility, directly adapting to GE Mark VIe Speedtronic control system, and can be seamlessly combined with multiple types of terminal blocks. Integration can be completed without additional adaptation components, supporting expansion and upgrading of existing IS220 series I/O systems.
Signal acquisition is accurate and efficient: 24 independent channels can collect contact status synchronously, with response time ≤1ms to capture equipment status changes in real time. The isolation design effectively suppresses common-mode interference in industrial environments, ensuring no signal distortion.
Environmental adaptability is outstanding: the wide temperature operating range of -30°C to +65°C covers high and low temperature scenarios. Certified for hazardous locations, it can operate stably without performance degradation in harsh working conditions such as petrochemical and metallurgical industries.
Maintenance is convenient: the modular design supports quick replacement. LED indicators and diagnostic functions can accurately locate channel or power faults, enabling problem troubleshooting without equipment disassembly, significantly reducing maintenance man-hours.
Operation reliability is excellent: flame-retardant housing and overvoltage protection design improve system safety. There is no mechanical wear during long-term operation, and the mean time between failures is much higher than conventional input modules, ensuring continuous operation of the control system.
