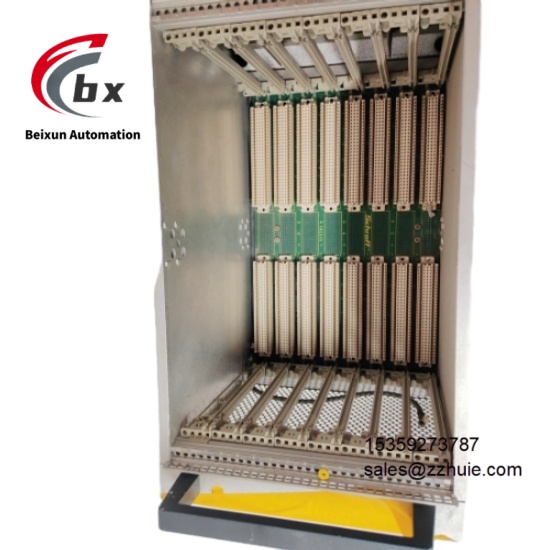

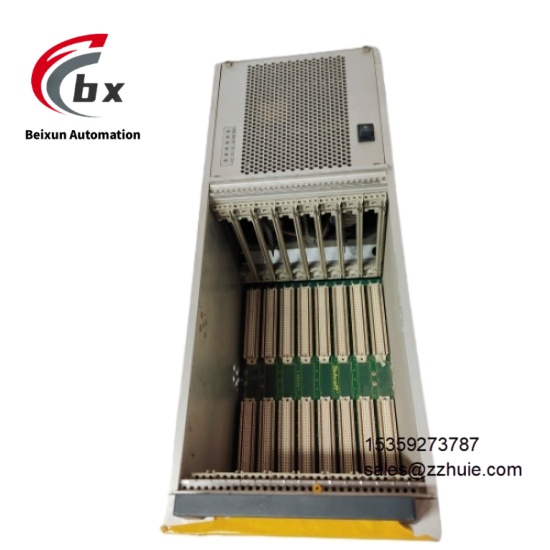

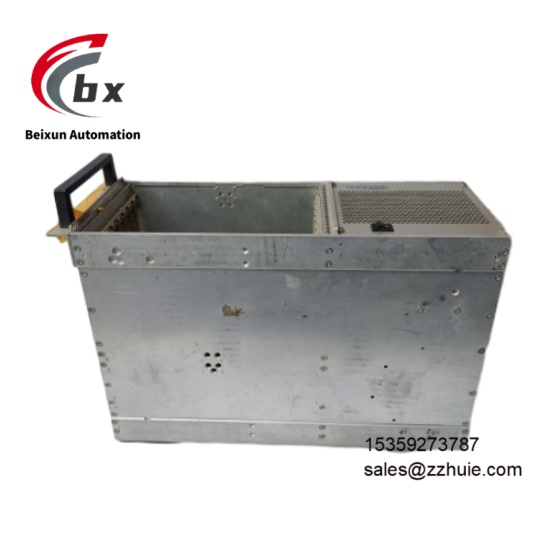

GE 20836416 Control framework connection recombination module
Specific Parameters
Electrical Parameters
Operating Voltage: 24VDC ±15%Signal Transmission Rate: ≥100MbpsInterface Type: Standard backplane bus interface, pluggable signal interfaceTransmission Distance: Maximum 1000m per channel (shielded cable)Redundancy Switching Time: ≤5msIsolation Channels: 8 independent signal isolation channelsIsolation Voltage: ≥2500V AC (1 minute no breakdown, leakage current ≤1mA)Insulation Resistance: ≥100MΩ between channels and between channels and power supply (measured at 500V DC, normal temperature and state)Protection Features: Overvoltage protection, short circuit protection, signal out-of-sync protectionCertification Standards: Compliant with UL, CE, IEC 61010-1 standards
Mechanical Parameters
Overall Dimensions: 180mm (L) × 120mm (W) × 60mm (H), compatible with standard DCS control framesWeight: Approximately 0.8kgMounting Method: DIN rail mounting, panel mounting, supporting online hot-swappingHousing Material: Flame-retardant engineering plastic + metal shielding layer, anti-electromagnetic interferenceConnection Method: Plug-in terminal blocks + standard bus interfaces, compatible with 0.75mm² copper core shielded cablesProtection Rating: IP20 (rack-mounted), relying on the overall protection of the control system cabinetStatus Indication: Power (green), operation (yellow), fault (red), redundancy status (blue) LED indicators
Environmental Parameters
Operating Temperature: -40℃ to 70℃, operation without derating over the entire temperature rangeStorage Temperature: -40℃ to 85℃, meeting extreme storage and transportation requirementsRelative Humidity: 5% to 95% (non-condensing), suitable for high-humidity industrial scenariosVibration Resistance: 3g acceleration at 3Hz-57Hz frequency range, 5g acceleration at 57Hz-500Hz frequency range (sine wave)Shock Resistance: 15g acceleration (half-sine wave, duration 11ms), withstanding installation and transportation shocksEMC Compliance: Meets EN 55014-1 and EN 55014-2 standards, with strong resistance to external electromagnetic interference
Product Performance
Fast redundancy switching response: ≤5ms switching speed ensures uninterrupted system operationStable signal transmission: ≥100Mbps rate combined with 8 isolation channels, data transmission bit error rate ≤10⁻¹²Strong compatibility: Standard backplane bus interfaces adapt to various functional modules of GE series DCS and PLC, supporting signal routing of multiple expansion slotsOutstanding anti-interference capability: Metal shielding layer + industrial-grade circuit design, suitable for complex electromagnetic environmentsConvenient maintenance: Hot-swappable design + multi-status LED indicators enable efficient fault troubleshootingCompact structure: Adapts to standard control frames and multiple mounting methods, saving installation spaceHigh operational reliability: Industrial-grade component selection, Mean Time Between Failures (MTBF) ≥350,000 hours
