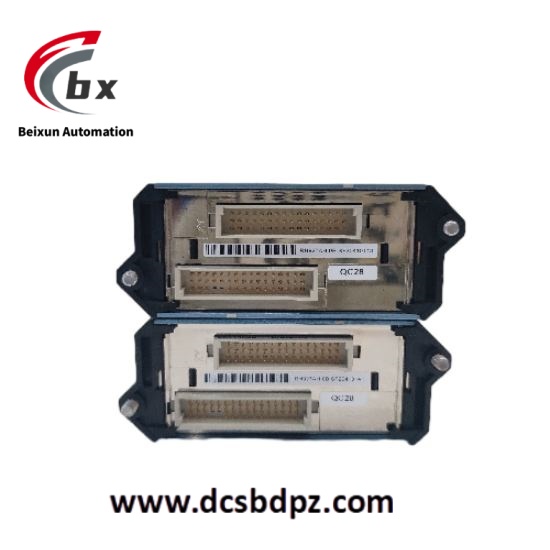

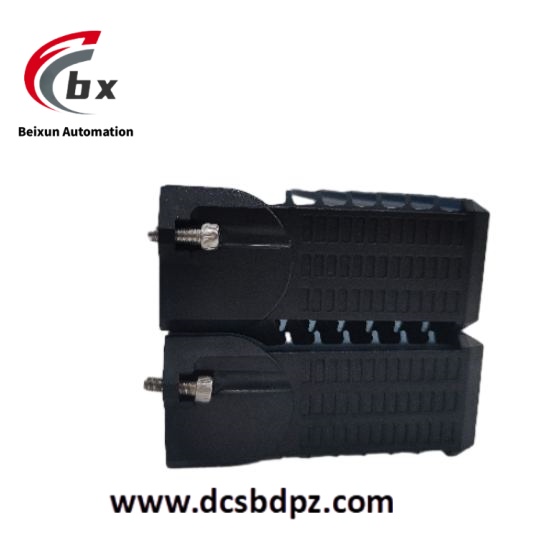

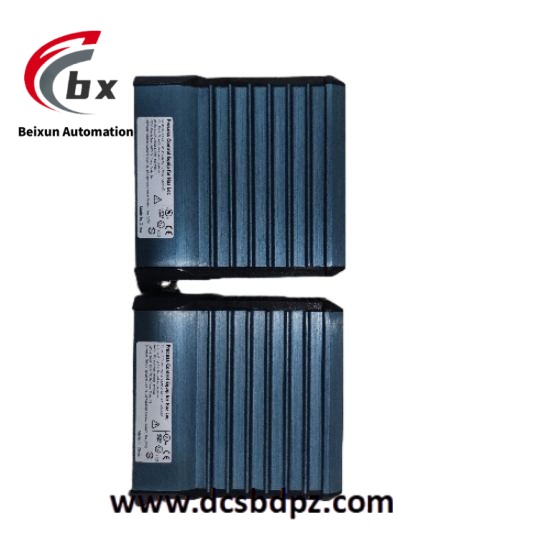

FOXBORO RH927AH HART communication input module
Specific parameters
Electrical parameters
Input signal type: Standard 4-20mA analog signal, superimposed with digital HART frequency shift keying (FSK) signal.
Hart compatibility: Supports HART instruments that comply with versions 5, 6, or 7.
Communication methods: point-to-point, master/slave, asynchronous, half duplex, baud rate of 1200, 2 messages per second.
Input voltage: 24V DC+5%/-10% (redundant).
Power consumption: maximum 7W.
precision parameter
Analog input accuracy: ± 0.03% of full scale (including nonlinearity).
Temperature coefficient: 50ppm/° C.
Resolution: 15 bits.
Physical parameters
Weight: Approximately 284g (10oz).
Size: Height 102mm (4in), 114mm (4.5in) with mounting ears; Width 45mm (1.75in); Depth of 104mm (4.11in).
Installation method: Modular base plate (DIN rail or 19 inch rack with installation kit), compatible with 100 series conversion installation structure.
Environmental parameters
Working temperature: -20 ℃ to+70 ℃ (-4 ℉ to+158 ℉).
Working humidity: 5% to 95% (non condensing).
Working altitude: -300 to+3000m (-1000 to+10000ft).
Product Performance
High reliability: With a sturdy extruded aluminum casing, it can adapt to harsh industrial environments. At the same time, it has redundant 2Mbps module fieldbus communication to ensure the stability and reliability of data transmission.
High precision measurement: The analog input accuracy can reach ± 0.03% of the full range, accurately measuring the analog signals of on-site equipment and providing precise data support for control systems.
Strong anti-interference ability: It has a high common mode rejection ratio (>100dB at 50 or 60Hz) and normal mode rejection ratio (>35dB at 50 or 60Hz), effectively suppressing electromagnetic interference on site and ensuring the quality of signal transmission.
Easy to maintain: It can be disassembled and replaced without cutting off the on-site wiring, power or communication cables, which facilitates on-site maintenance work and reduces downtime.
