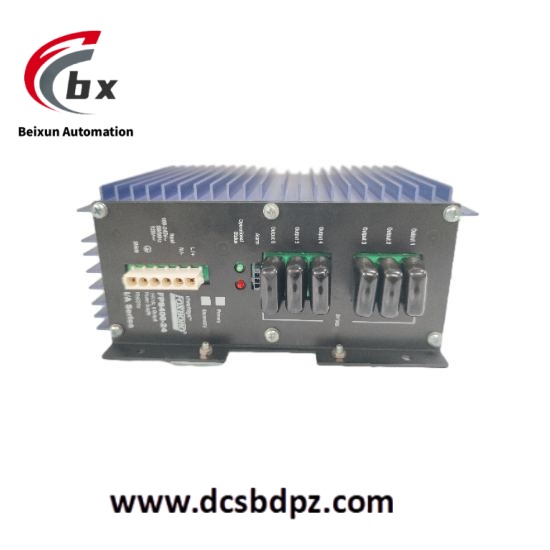

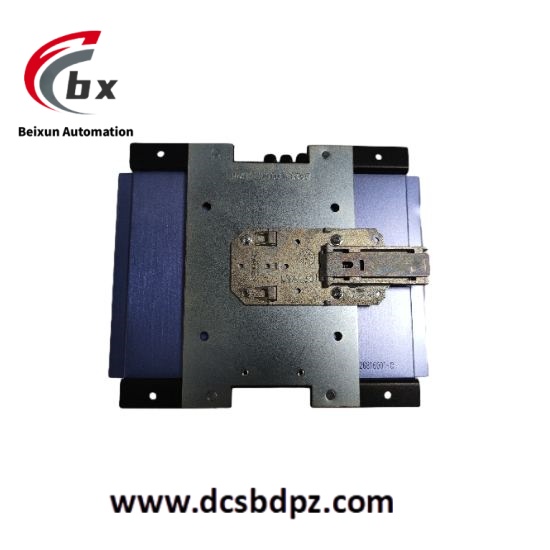

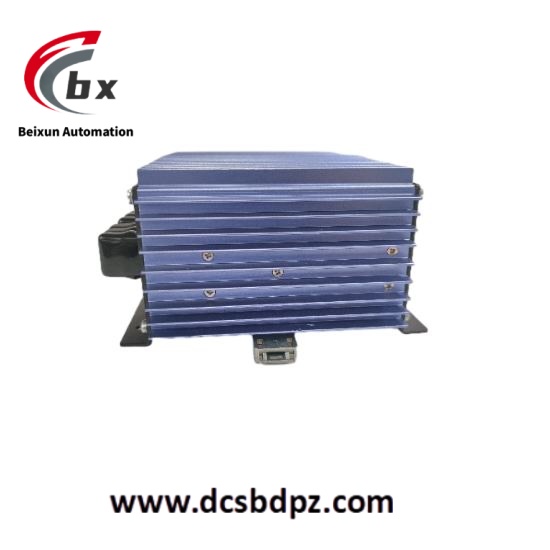

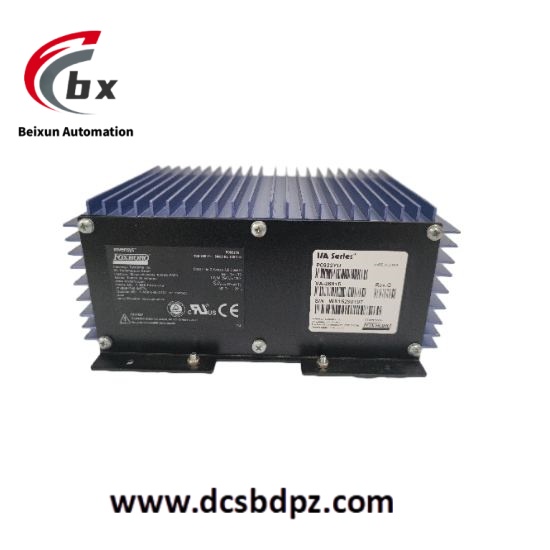

FOXBORO FPS400-24 P0922YU Power module
Specific parameters
Input voltage range: 85 to 265V AC or 108 to 145V DC, nominal 125V DC.
Input frequency range: 47 to 63Hz.
Input current: 5.6A (maximum effective value) for 85V AC input and 2.5A (maximum effective value) for 230V AC input.
Output voltage: 24.0V DC, ± 0.2V DC nominal factory settings.
Efficiency: The minimum is 77% when AC input is 85V, the typical value is 85% when AC input is 120V, the typical value is 92% when AC input is 230V, and the typical value is 90% when AC input is 240V.
Surge current: 20A at AC 110V (peak value during cold start), 40A at AC 220V (peak value during cold start).
Input power: Typical value is 453 watts at 120V AC, 50/60Hz; The typical value at 230V AC and 60Hz is 439 watts; The typical value at 230V AC and 50Hz is 441 watts.
Voltage line adjustment rate: 2.0% of Vout.
Overcurrent protection: When the rated current is 25 ℃ load, it is limited to 110% of the maximum current.
Leakage current: When operating at 250V AC (47 to 63Hz) or lower voltage, the AC line to chassis ground should be less than 1.6mA.
Vibration: 0.75g (5 to 500Hz).
Working temperature: -30 to 71 degrees Celsius (-58 to+160 degrees Fahrenheit).
Relative humidity at work: 5 to 95% (non condensing).
Working height: -300 to+3000 meters (-1000 to+10000 feet).
Dimensions: Approximately 17.8 centimeters high, 10.7 centimeters wide, and 21.5 centimeters deep.
Transport weight: 6 kilograms.
Product Performance
High reliability: FOXBORO products are usually known for their high reliability and stability. This power module can operate stably in harsh industrial environments, has a G3 rating, is suitable for harsh environments, and has obtained UL certification ®、 UL-C and CENELEC certifications.
Full protection function: It has overvoltage, overcurrent, short circuit and other protection functions to ensure the safe operation of the system. For example, the overvoltage protection factory is set to 28.0V DC for DIN rail FBM/FCM/FCP applications; It also has a dual level current limiting function.
High efficiency: Sealed power supply has high efficiency, with different efficiency performances at different voltages during AC input, up to about 92%, which can effectively reduce energy loss.
Strong applicability: Provides a wide range of AC and DC input voltages, can adapt to different power environments, and can also supply power to external field devices. It has functions such as transformer isolation 24V DC output, relay (C-type) status alarm output, etc.
