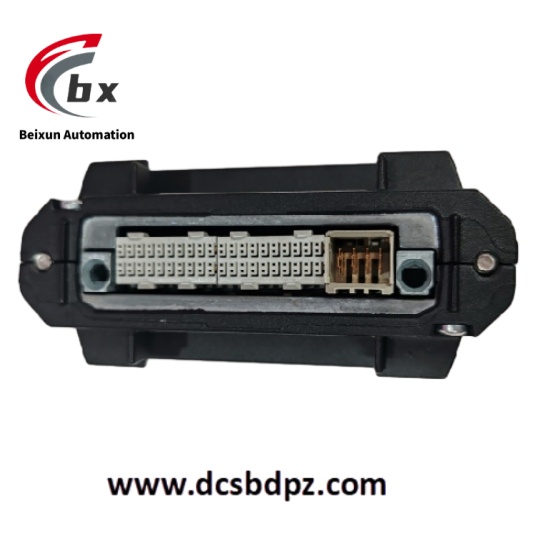

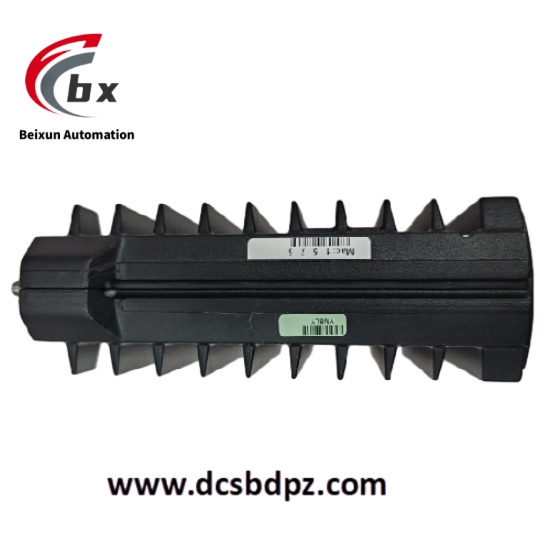

FOXBORO FDC280 RH101FQ On site equipment controller

FOXBORO FDC280 RH101FQ On site equipment controller

Specific Parameters

• Input Voltage: 24V DC (19.2-28.8V DC operating range)
• Communication Ports: 2x Gigabit Ethernet (TSN-enabled), 1x RS-485 (Modbus RTU), 1x USB Type-B
• Processing Power: Dual-core 500MHz ARM Cortex-A9, control logic execution cycle ≤0.5ms
• Memory: 1GB DDR3 RAM, 4GB eMMC storage (expandable to 32GB)
• I/O Capacity: Supports up to 256 digital or 128 analog I/O points via FBM200C modules
• Redundancy: Hot standby with 25ms switchover, FRAM for historical data retention
• Operating Temperature: -20°C to +60°C (non-condensing)
• Protection Rating: IP54 (for cabinet-mounted applications)

Product Performance

• Multi-Protocol Integration: Native support for 12 industrial protocols (Profinet RT, EtherCAT, OPC UA, etc.), enabling seamless integration of multi-vendor PLCs and smart instrumentsse.com. Protocol drivers can be updated online without system downtime.
• Precision Synchronization: TSN-enabled Ethernet ports provide microsecond-level network synchronization, critical for high-precision collaborative applications like semiconductor wafer handling robotsse.com.
• Fault-Tolerant Design: Patented dual-controller hot standby technology ensures continuous control logic execution during failover, ideal for uninterrupted operation of critical equipment such as chemical reactors. Built-in health monitoring tracks CPU load, memory usage, and communication link status.
• Scalable Architecture: FBM200C modules enable plug-and-play I/O expansion, adapting quickly to distributed I/O requirements in mobile applications like oil rigs. Its compact design reduces cabinet space by 50% through vertical/horizontal mounting optionsschneider-electric.cn.
