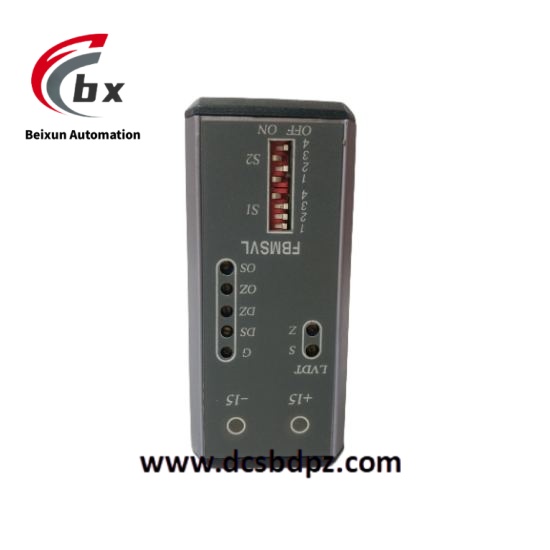

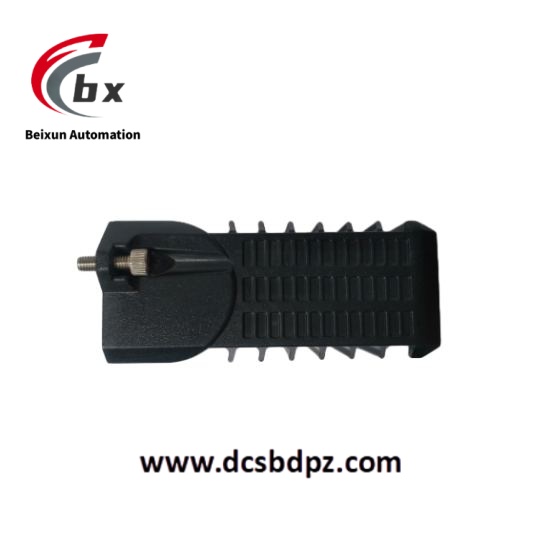

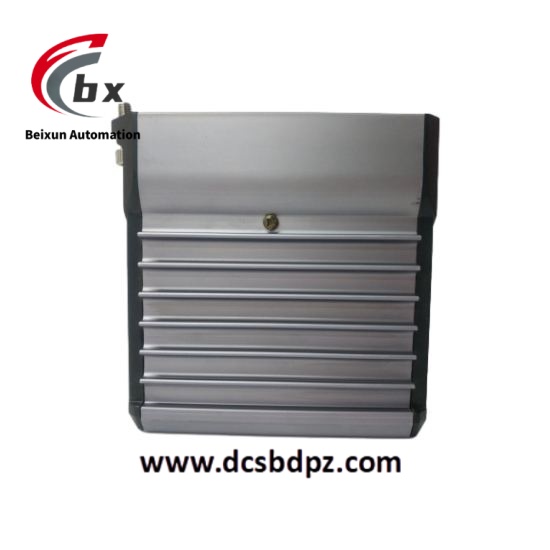

FOXBORO FBMSVL Vibration monitoring module
Specific parameters
Signal input:
-Number of channels: 4 independent inputs
-Compatible sensors: accelerometer, speed sensor, eddy current probe (supports IEPE power supply)
-Input range: ± 5V (peak)
Sampling and bandwidth
-Sampling rate: 51.2 kHz per channel Frequency response: 0.5 Hz~15 kHz (± 3dB)
Measurement accuracy
-Dynamic range:>90 dB – Linear error: ± 0.1% F.S. (full scale)
Signal Processing
-FFT analysis: 1024/2048/4096 points optional
-Monitoring parameters: velocity, acceleration, displacement, envelope spectrum, kurtosis index
Output and Control
-Alarm relay: 2 sets of independent programmable contacts (250VAC/5A)
-Analog output: 4~20mA (corresponding to vibration range)
communication interface
-Bus protocols: Modbus TCP/IP, EtherNet/IP
-System integration: via Foxboro Evo ™ ControlCore Platform Management
Environmental adaptability
-Working temperature: -40 ° C~+70 ° C
-Protection level: IP20 (cabinet installation)
-Anti vibration: 5g @ 10~500 Hz
Product performance: With highly integrated and modular design, it occupies small space, requires less installation time, and is easy to debug and maintain. Optimized I/O access protocol, capable of mounting up to 254 I/O modules, with a wide range of module types to meet various signal requirements. Adopting low-power devices, no need for fan cooling, modular structure fully sealed packaging, reducing dust corrosion, long service life, high system stability and reliability. Control network, IO module DPU、 The power supply and system network can achieve full redundancy, and the real-time data network adopts a serverless peer-to-peer network structure. The fieldbus CAN network adopts a redundant structure, using exception reporting and variable rate scanning methods, resulting in high network efficiency and strong real-time data performance.
