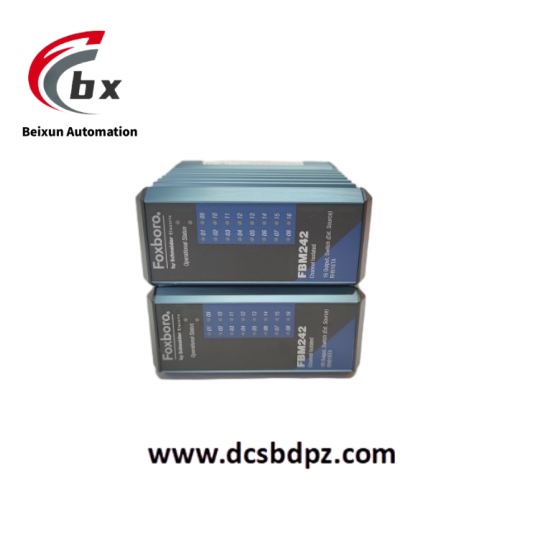

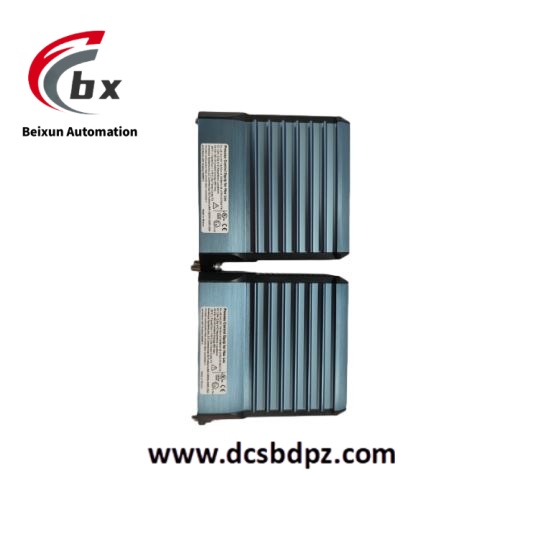

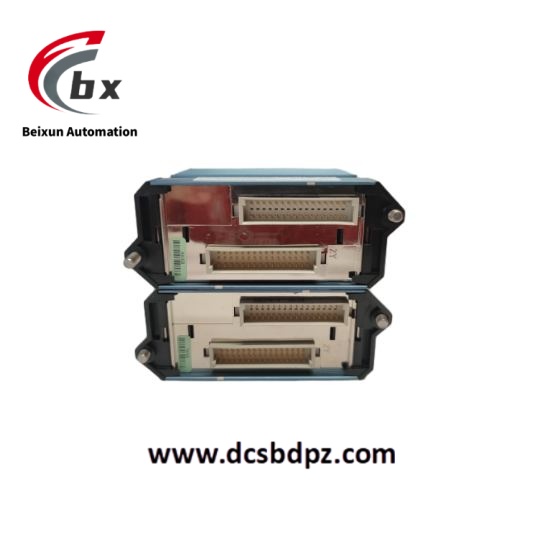

FOXBORO FBM242 RH916TA Discrete output interface module
Specific parameters
Input voltage range (redundancy): 24V DC+5%, -10%.
Power consumption (maximum): 3 watts at 24 volts DC.
Heat dissipation: 6.5 watts at 24 volts DC (all outputs are 1.5 ampere hours).
Working temperature: The module is -20 to+70 degrees Celsius, and the terminal component PVC is -20 to+50 degrees Celsius.
Relative humidity: 5 to 95% (non condensing).
Dimensions (length x width x height): 10.4cm x 4.5cm x 11.4cm.
Weight: 0.284 kilograms.
Output channels: 16 isolated channels.
Application voltage: 15 to 60V DC (maximum).
Load current: Maximum 2.25A per channel.
On state voltage drop: 0.2V (maximum) at 2.25A.
Off state leakage current: 0.1mA (maximum value).
Product Performance
Wide signal support: Supports discrete output signals at voltages of 15 to 60V DC, 120V AC/125V DC, and 240V AC, meeting the driving needs of various types of field devices.
Good electrical isolation: Each input and output is current isolated, and when used with external excitation, it is group isolated, which can effectively prevent electrical interference and improve the stability and reliability of system operation.
Strong environmental adaptability: The compact and sturdy design is suitable for enclosures in G3 class (harsh) environments and can work stably in harsh industrial environments.
Flexible configuration: It can execute discrete I/O or ladder logic programs, with configurable options such as input filtering time, fail safe configuration, fail safe fallback, and continuous or instantaneous output. It can be flexibly set according to different application scenarios and control requirements.
