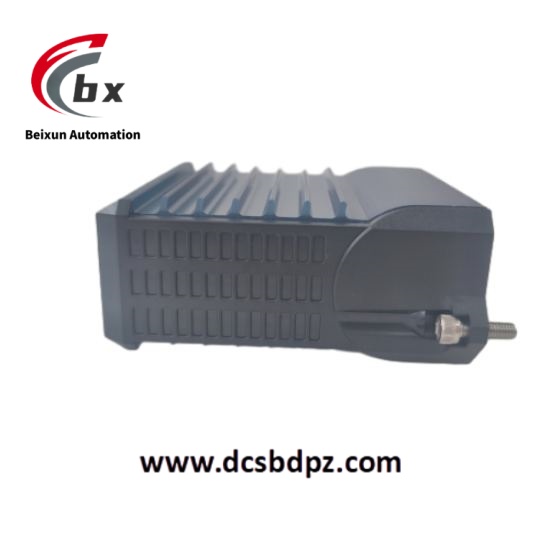

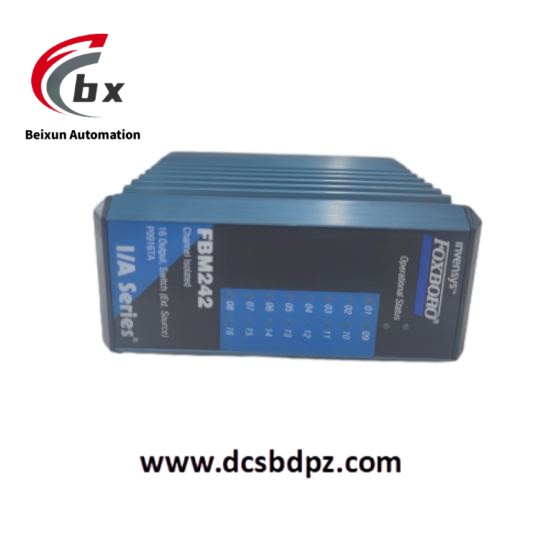

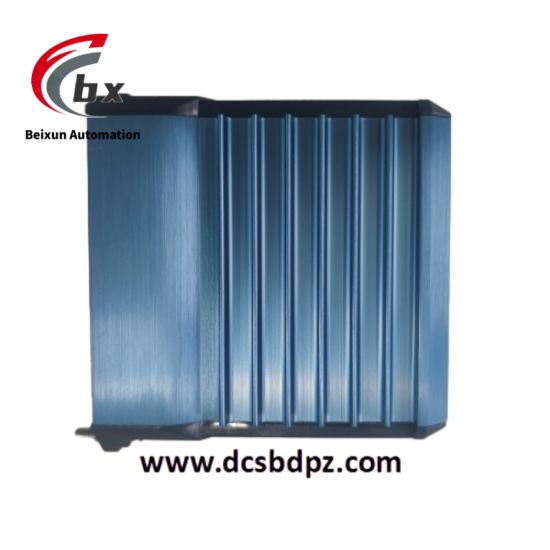

FOXBORO FBM242 P0916TA Discrete output interface module
Specific parameters
Input voltage range (redundancy): 24V DC ± 5%, -10%.
Power consumption (maximum): 3 watts at 24V DC.
Output channels: 16 isolated channels.
Application voltage: 15 to 60V DC (maximum).
Load current: Maximum 2.25A per channel.
On state voltage drop: 0.2V (maximum) at 2.25A.
Off state leakage current: 0.1mA (maximum value).
Working temperature: -20 to+70 degrees Celsius.
Relative humidity: 5 to 95% (non condensing).
Size: Approximately 10.4cm x 4.5cm x 11.4cm.
Weight: Approximately 0.284 kilograms.
Product Performance
Good electrical isolation performance: Each input and output is electrically isolated, and when used with external excitation, it has group isolation characteristics, which can effectively reduce signal interference and improve system stability.
Strong output capability: It can support discrete output signals at voltages of 15 to 60Vdc, 120Vac/125VDC, and 240Vac. Each channel can provide a large load current and is suitable for various types of loads.
Flexible configuration: It can execute discrete I/O or ladder logic programs, with configurable options such as input filtering time, fail safe configuration, fail safe fallback, and continuous or instantaneous output, which can meet the needs of different application scenarios.
Reliable communication: Connected through a redundant 2Mbps module fieldbus, it can accept communication from any path (A or B) of the redundant 2Mbps fieldbus. When one path fails, the module can continue to communicate through the active path.
Strong environmental adaptability: The design is sturdy and suitable for enclosures in G3 level (harsh) environments, and can work stably under a wide temperature range and certain humidity conditions.
