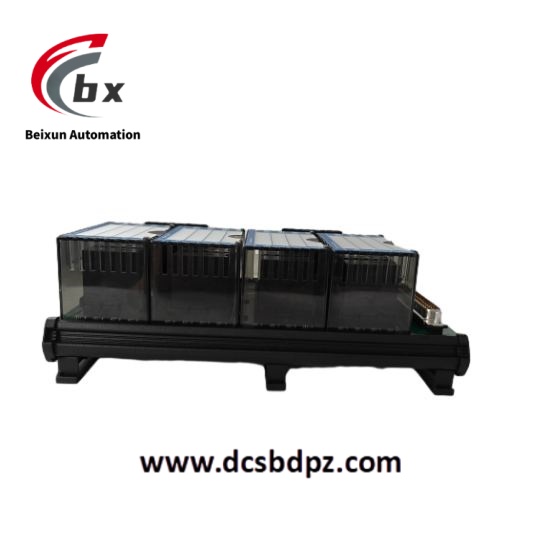

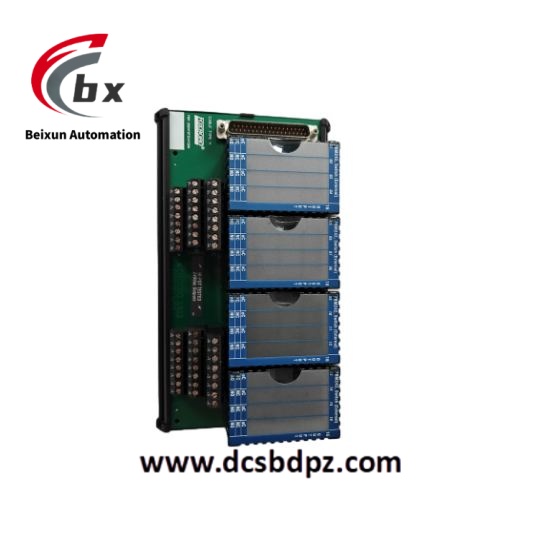

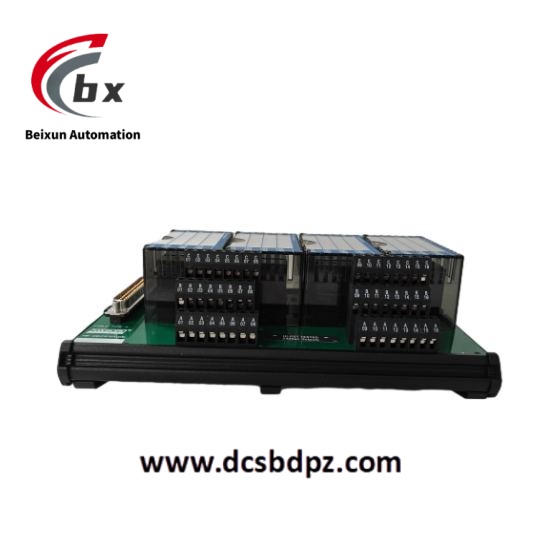

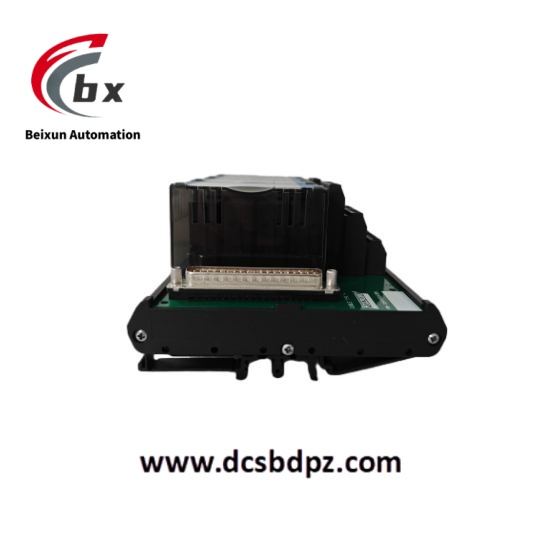

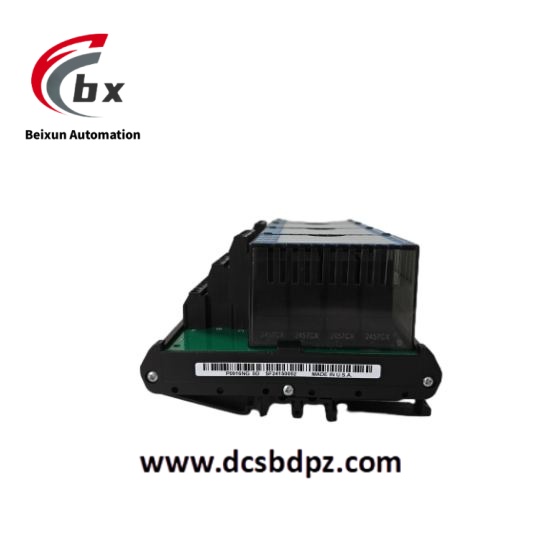

FOXBORO FBM242 P0916NG Discrete output interface module
Specific parameters
Input voltage range: 24V DC+5%, -10%.
Power consumption: 3 watts at 24 volts DC (maximum).
Heat dissipation: 6.5 watts (maximum) at 24 volts DC (1.5 amps for all outputs).
Output channels: 16 isolated channels.
Load current: Maximum 2.25A per channel.
On state voltage drop: 0.2V (maximum) at 2.25A.
Off state leakage current: 0.1mA (maximum value).
Working temperature: -20 to+70 degrees Celsius (temperature module); -20 to+50 degrees Celsius (terminal component PVC).
Relative humidity: 5 to 95% (non condensing).
Size: 10.4cm x 4.5cm x 11.4cm.
Weight: 0.284 kilograms.
Product Performance
Good electrical isolation performance: Each input and output is electrically isolated, and when used with external excitation, it also has group isolation, which can effectively avoid signal interference and improve system stability.
Strong environmental adaptability: Designed to be sturdy and suitable for G3 level (harsh) environments, the casing can work stably in various complex industrial environments.
Flexible configuration: It can execute discrete I/O or ladder logic programs, with configurable options such as input filtering time, fail safe configuration, fail safe fallback, and continuous or instantaneous output, which can meet the needs of different application scenarios.
Reliable communication: Connected to the fieldbus communication module or control processor through a redundant 2Mbps module fieldbus, if one path fails, the module can continue to communicate through the active path.
