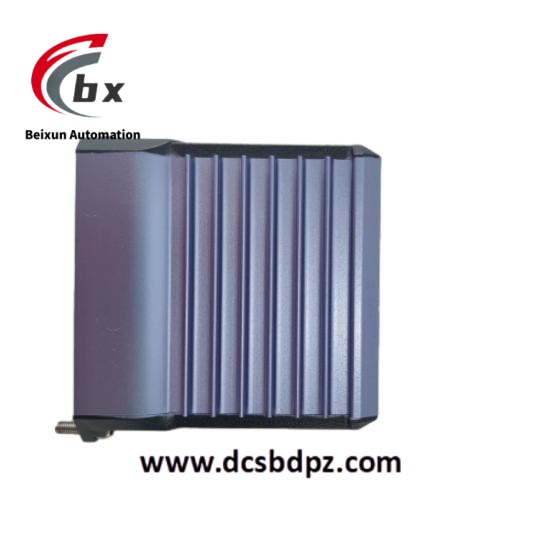

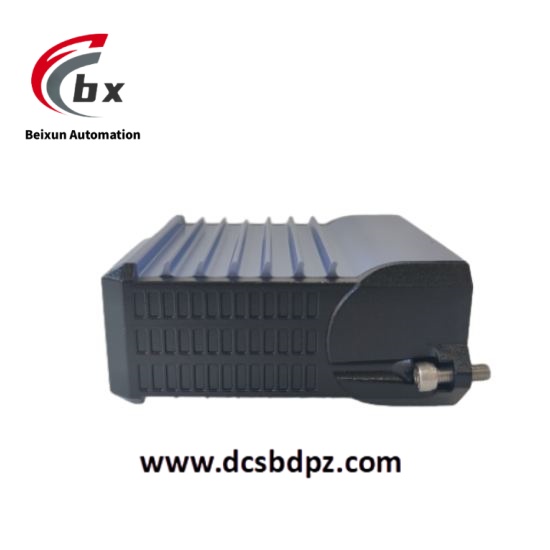

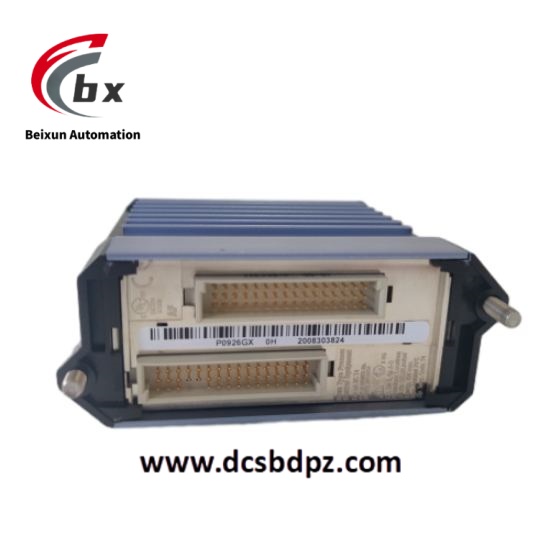

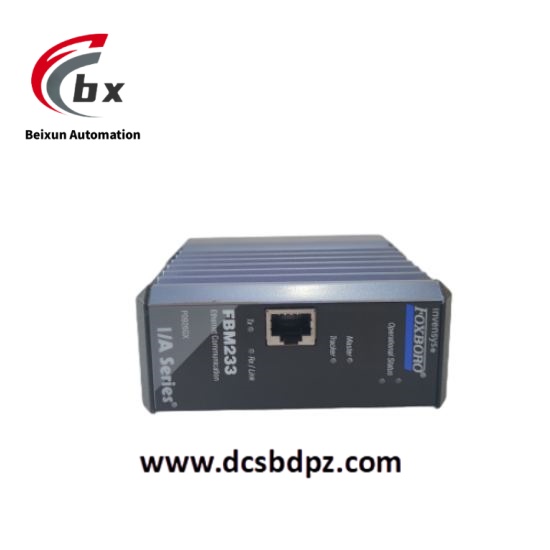

FOXBORO FBM233 P0926GX Digital input/output module
Specific parameters
Channel Configuration
16 differential inputs (configurable as voltage/current)
-Current mode: 0-20mA/4-20mA (with 24VDC circuit power supply)
-Voltage mode: ± 50mV to ± 10V (software selectable range)
Accuracy and Resolution
-Basic accuracy: ± 0.05% F.S
-ADC resolution: 24 bits – temperature drift
-Overload protection: 150% range for 60 seconds
Isolation
-Channel isolation: 250V AC RMS
-System bus isolation: 1500V AC EMI immunity: IEC 61000-4-6 Level 4
communication interface
-Backplane protocol: Foxboro Evo FBM bus
-Transmission rate: 10 Mbps
-Diagnosis: LED status indication (independent for each channel)
physical property
Size: 132 × 110 × 45 mm-
Installation: DIN rail (with seismic locking buckle)-
Working temperature: -40 ° C~+85 ° C
Product performance: This module supports programmable logic control, and users can customize configuration and programming according to their needs. Equipped with communication interfaces such as Modbus and Profinet, it can transmit and communicate data with other devices and systems, and has real-time data exchange capabilities. At the same time, it has a high reliability design, usually with status indicator lights or display screens, self diagnostic function, can timely detect equipment faults and alarm, adopts modular design, easy to install, maintain and expand.
