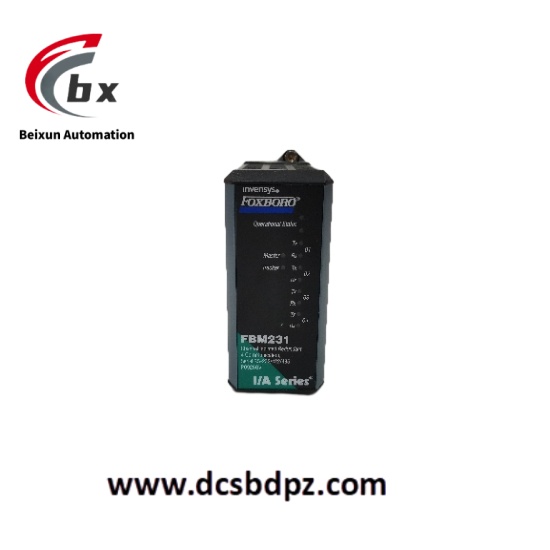

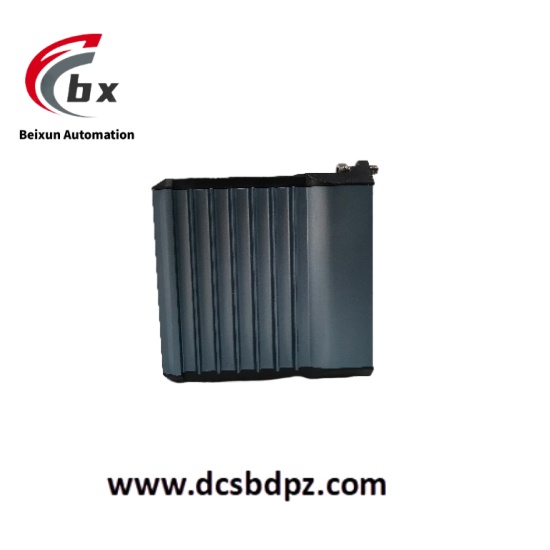

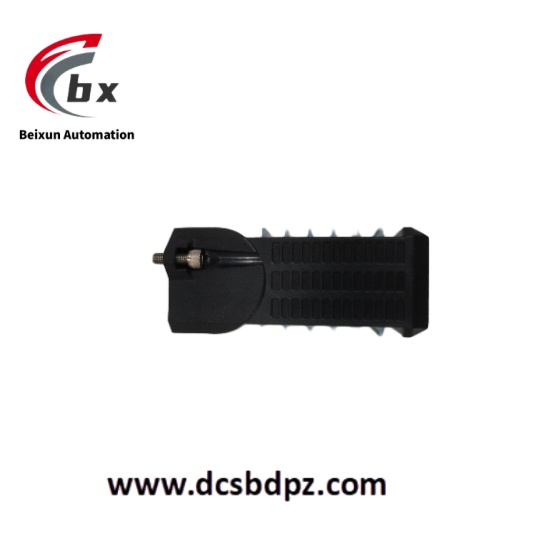

FOXBORO FBM231 P0926GV On site equipment system integrator module
The FOXBORO FBM231 P0926GV is a field device system integrator module, mainly used to connect multi - port field I/O devices to the Foxboro Evo™ system. It provides four independently configurable serial communication ports. These ports can be set as RS - 232, RS - 422 or RS - 485 interface forms and can support the connection of up to 64 devices. The module can communicate with various field devices such as sensors, actuators and controllers conveniently, integrating them into the Foxboro Evo system, thus realizing data interaction and device collaborative control in the industrial automation process.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
FOXBORO FBM231 P0926GV On site equipment system integrator module
Specific Parameters
- Interface Type: RS – 232, RS – 422, RS – 485 serial ports
- Number of Ports: 4
- Maximum Number of Connected Devices: 64
- Input Voltage Range: 24 V DC (+5%, – 10%)
- Power Consumption: 7 W (maximum)
- Operating Temperature Range: – 20°C to 70°C
- Protection Level: IP65
- Dimensions (Length×Width×Height): 10.4 cm x 4.5 cm x 11.4 cm
- Weight: 0.284 kg
- Installation Method: Mounted on a modular baseplate. The modular baseplate can be mounted horizontally or vertically on a DIN rail, or mounted horizontally in a 19 – inch rack using a mounting kit
- Certification: CE, ATEX, CSA certified
Product Performance
- Multi – protocol and Multi – device Support: Supports three serial communication protocols of RS – 232, RS – 422 and RS – 485. The four ports can be configured independently and can connect different types of field devices with different protocols simultaneously, up to 64 in total. This greatly improves the flexibility of system integration and can meet the access needs of diverse devices in complex industrial environments.
- Efficient and Stable Communication: Adopts an advanced communication circuit design. The data transmission is stable and reliable, and can effectively resist electromagnetic interference in the industrial field, ensuring that data is accurately transmitted between field devices and the Foxboro Evo system, guaranteeing the real – time and accuracy of industrial automation process control.
- Rugged and Durable Design: With a protection level of IP65, it can resist dust and low – pressure water spray from all directions, and can operate stably in harsh industrial environments such as dusty and humid conditions. The operating temperature range is from – 20°C to 70°C, adapting to the temperature conditions of different industrial sites, reducing equipment failures caused by environmental factors, and improving the reliability of system operation.
- Convenient Installation and Maintenance: The modular design makes the installation process simple. It can be flexibly installed on a DIN rail or a 19 – inch rack through a modular baseplate. At the same time, the independent port configuration and clear status indicator lights facilitate troubleshooting and daily maintenance, reducing maintenance costs and difficulties and improving the maintainability of the equipment.
