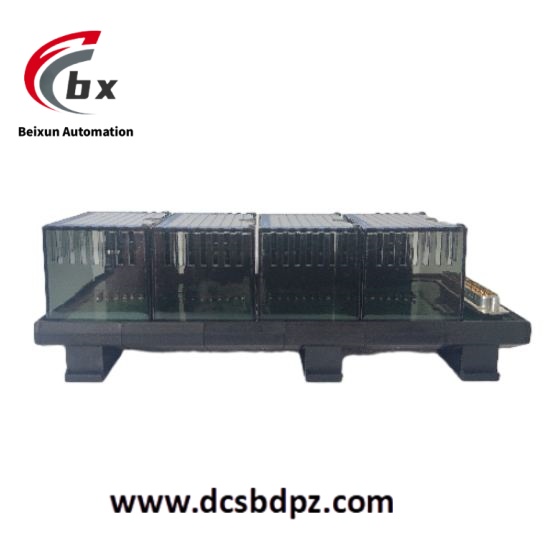

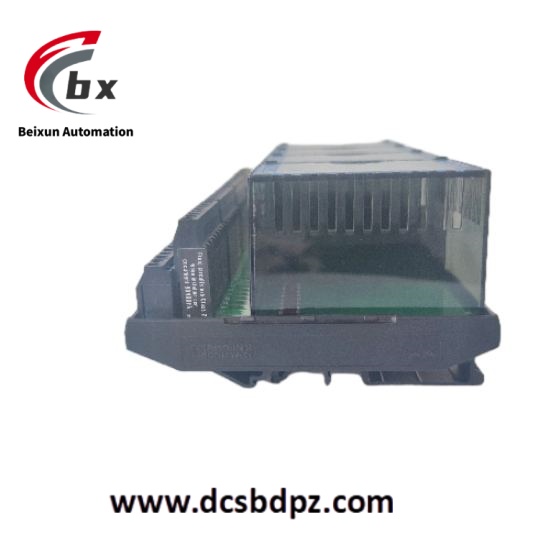

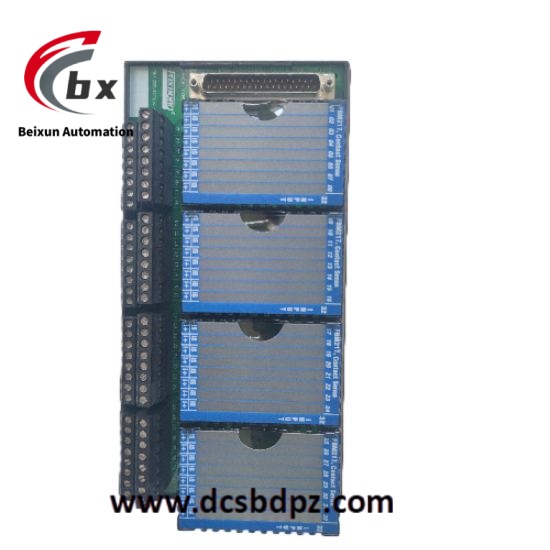

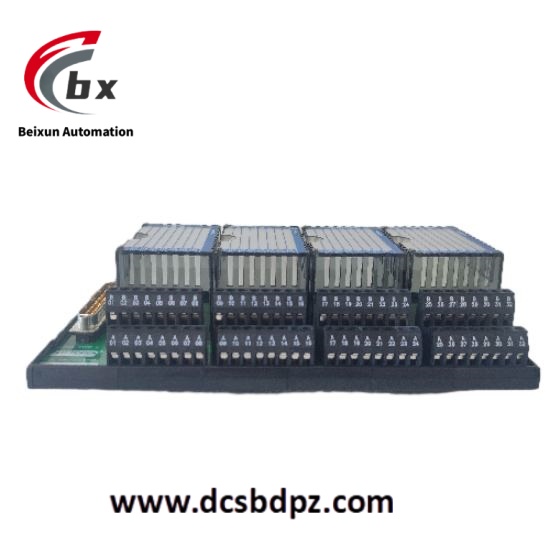

FOXBORO FBM217 RH916XZ Discrete Input Interface Module

Specific parameters
Input channel: 32 group isolation channels.
Input voltage range: Supports multiple voltages, including 15-60V DC, 120V AC/125V DC, 240V AC; The redundant input voltage range is 24V DC+5%, -10%.
Current: The typical value for 30V DC input is 2.2mA.
Filtering/debounce time: configurable, options include no filtering, 4ms, 8ms, 16ms, or 32ms.
Maximum pulse counting rate: 250Hz.
Isolation: According to different terminal components (TA), there are two types of isolation: group isolation (such as P0916CA, P0916CB, etc.) and channel isolation (such as P0916PS, P0916PT, etc.).
Communication: Communicate with relevant FCM or FCP through redundant 2Mbps module fieldbus.
Power consumption: Maximum 3W at 24V DC.
Working temperature: -20 ℃ to+70 ℃.
Relative humidity: 5% to 95% (no condensation).
Altitude: -300m to+3000m.
Size: Approximately 10.2cm x 4.5cm x 10.4cm (excluding installation lugs), plus installation lugs, it is 11.4cm.
Transport weight: 2kg.

Product Performance
High reliability: It can be used as a single module or adopt redundant configuration (two FBM217) to improve the reliability and availability of the system, suitable for industrial environments with high requirements for system stability.
Durable design: It can be used in harsh G3 level environments, with good anti-interference and environmental adaptability, and can withstand various harsh conditions in industrial sites, such as high temperature, humidity, dust, etc.
Flexible configuration: It has configurable input filtering time and fail safe configuration options, which can be customized according to different application needs to meet various complex industrial control requirements.
