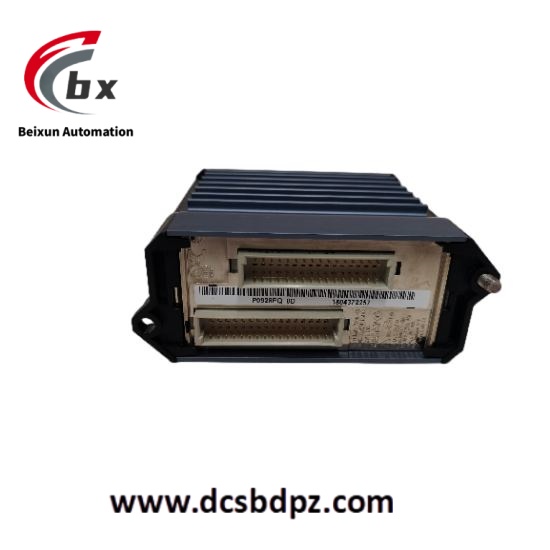

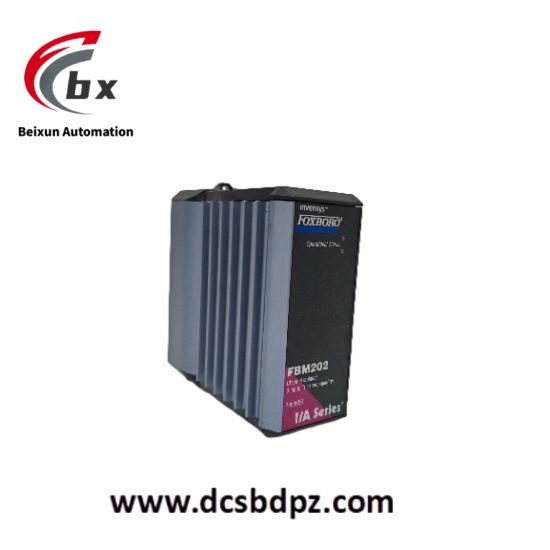

FOXBORO FBM202 P0926EQ Thermocouple/mV input module
Specific parameters
Input channels: 8 thermocouple signal input channels, 1 isolated RTD reference junction compensation channel.
Electrical isolation: Each input channel is electrically isolated from other channels and ground wires.
Conversion time: New analog input readings can be provided every 25 milliseconds, and the integration period can be configured.
Communication: Connect to the fieldbus communication module or control processor through a redundant 2 Mbps module fieldbus.
Terminal components: There are compression screw type (DIN rail installation and base plate installation), ring ear type (DIN rail installation) and other types, made of materials such as polyamide (PA), polycarbonate/acrylonitrile butadiene styrene (PC/ABS), etc.
Cable: Terminal cable materials can be selected from polyurethane and low smoke halogen-free (LSZH).
Product Performance
High precision: High precision is achieved through sigma delta data conversion of each channel, which can eliminate process noise and power line frequency interference.

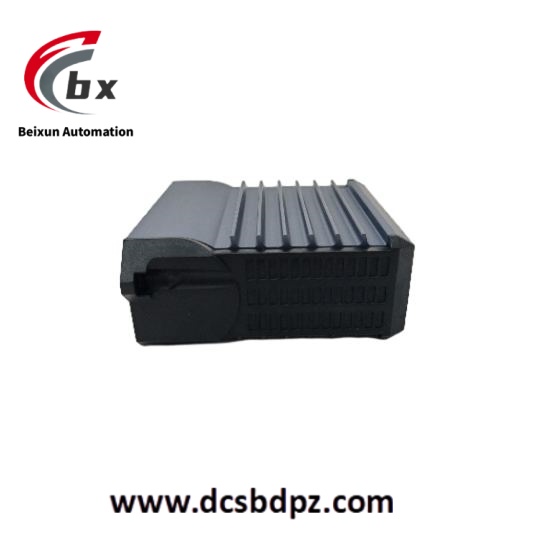

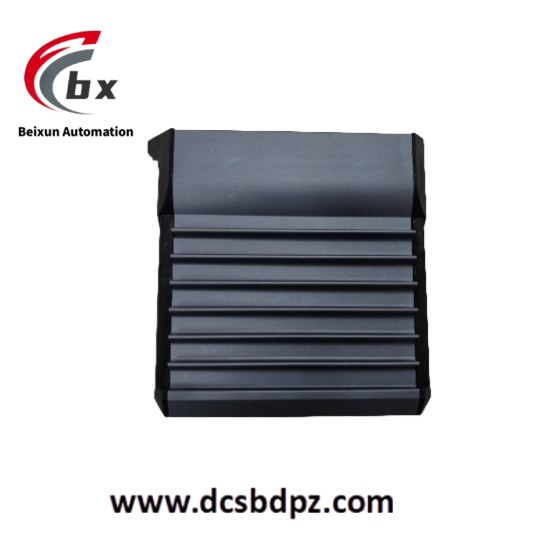

Durable Design: Featuring a sturdy extruded aluminum casing, suitable for G3 level (harsh) environments, providing physical protection for circuits.
Status display: The front of the module is equipped with red and green light-emitting diodes (LEDs) that can display the operating status of the FBM.
Easy to maintain: When disassembling/replacing modules, there is no need to remove on-site equipment terminal cables, power or communication cables.
