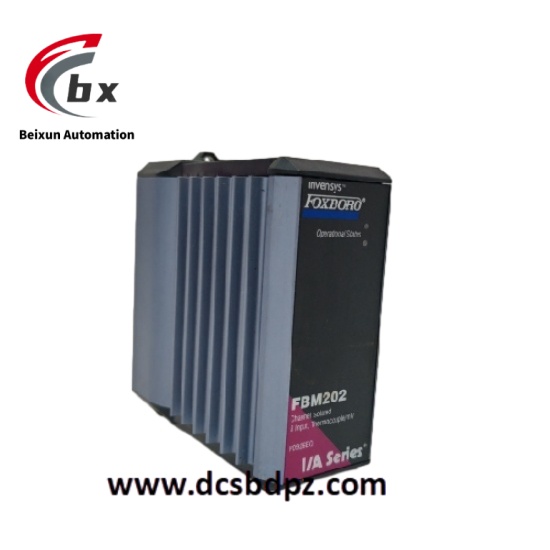

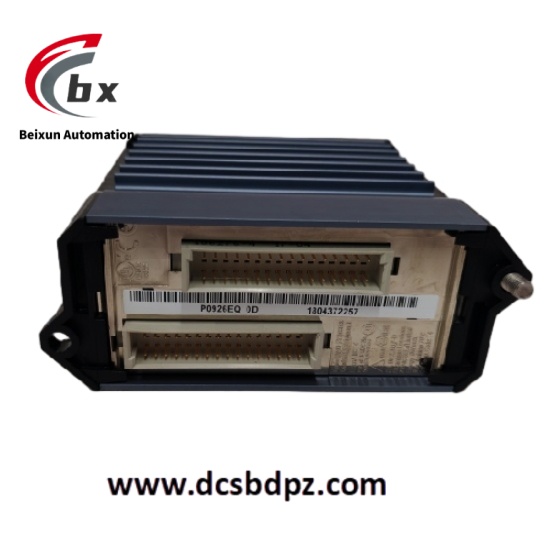

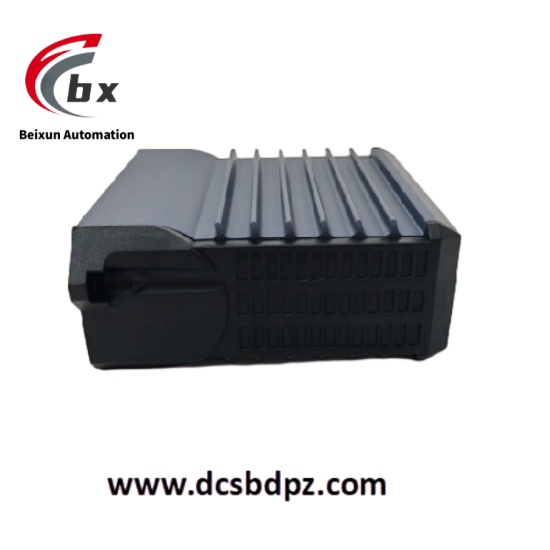

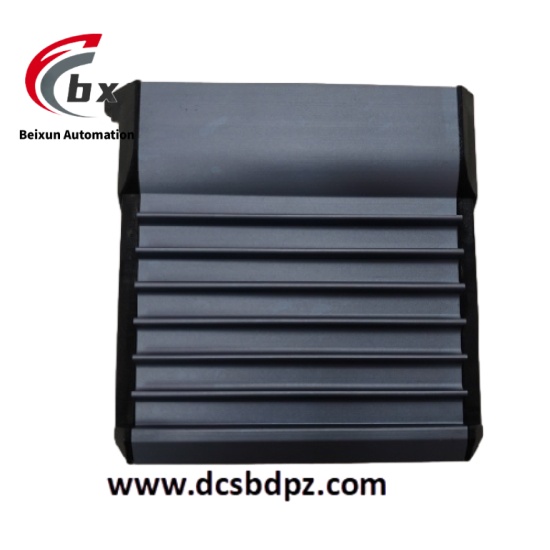

FOXBORO FBM202 P0926EQ Analog Input Module
FOXBORO FBM202 P0926EQ is an 8 - channel isolated analog input module designed for industrial automation and process control systems, belonging to Foxboro's I/A Series. This module is mainly used to accurately measure temperature signals generated by thermocouples and millivolt (mV) signals, and convert these analog signals into digital signals for subsequent processing and transmission. It adopts a high - precision A/D converter and advanced SIGMA - DELTA data conversion technology. A new analog input reading is generated every 25 samplings, ensuring high - accuracy measurement and data conversion. The module also has a thermocouple burnout detection function, providing reliable protection for system operation.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
FOXBORO FBM202 P0926EQ Analog Input Module
Specific Parameters
- Input Type: Thermocouple, millivolt
- Number of Input Channels: 8
- Input Range: Thermocouple – 400°C to 1700°C; Millivolt 0 to 100 mV
- Accuracy: ±0.03% of full scale (±24µV)
- Cold Junction Compensation Method: RTD or fixed
- Noise: Less than 1µVrms
- Isolation: 2500Vrms between channels and to ground
- Power Supply: 24VDC
- Operating Temperature Range: – 40°C to 85°C
- Protection Level: IP65
- Dimensions: 4.2 x 4.5 x 6 inches (approx. 10.7 x 11.4 x 15.2 cm)
- Weight: 0.3kg
- Data Conversion Technology: SIGMA – DELTA data conversion technology, generating a new reading every 25 samplings
- Communication Interface: Supports Foundation Fieldbus digital bus protocol, connected through screw terminals
- Compatibility: Compatible with all Foundation Fieldbus devices and industrial – grade components
Product Performance
- High – Precision Measurement: With a high – precision A/D converter and SIGMA – DELTA data conversion technology, it can accurately measure thermocouple and millivolt signals, with a measurement accuracy of up to ±0.03% of full scale (±24µV), ensuring accurate data for the control system and meeting the requirements of industrial applications with strict measurement accuracy.
- Strong Anti – interference Ability: Each input channel is electrically isolated, which can effectively resist external electromagnetic interference and ensure the stability and accuracy of signal transmission. It can also operate stably in complex electromagnetic environments, reducing signal distortion and misjudgment and ensuring reliable system operation.
- Reliable Fault Detection: It has a thermocouple burnout detection function, which can monitor the working status of the thermocouple in real – time. Once a thermocouple burnout is detected, it can promptly issue an alarm and take corresponding measures to avoid system out – of – control due to thermocouple failure and ensure the safety and stability of the industrial production process.
- Good Environmental Adaptability: With a protection level of IP65, it can operate stably in dusty, humid and other harsh environments. The operating temperature range is – 40°C to 85°C, adapting to the temperature conditions of different industrial sites and meeting the application requirements in various industrial environments.
- Convenient Integration and Expansion: It supports the Foundation Fieldbus digital bus protocol and can easily communicate and integrate with other devices that follow this protocol. It supports up to 8 input channels and has standardized communication protocols and interfaces, which are easy to integrate with other controllers, PLCs and industrial equipment, facilitating system expansion and upgrade.
