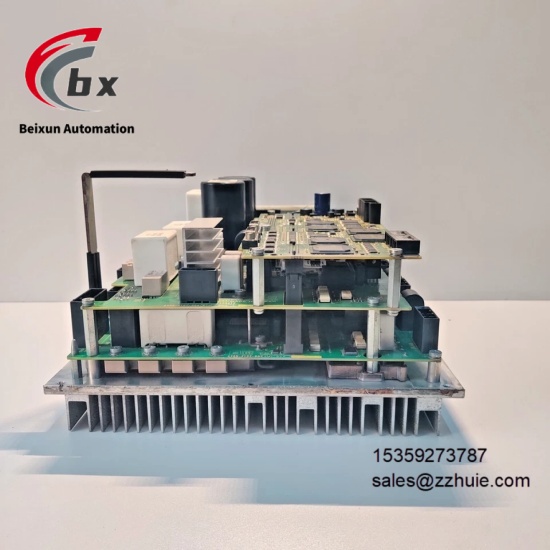

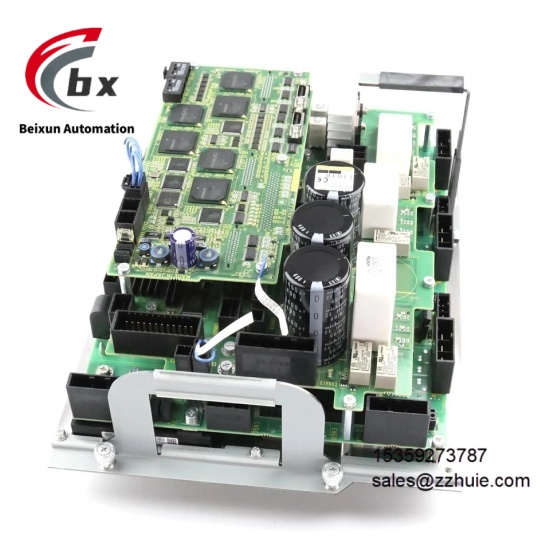

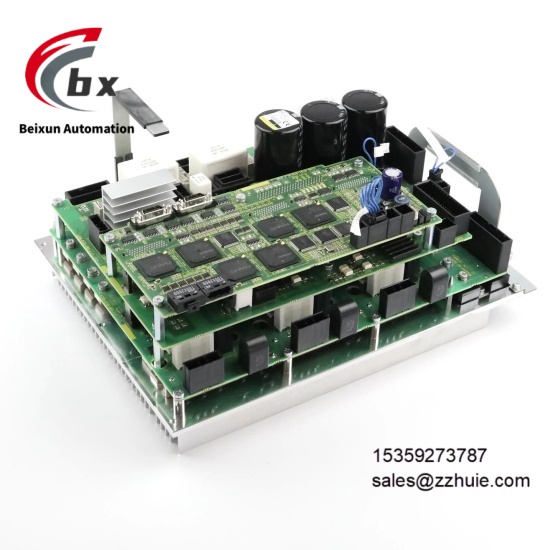

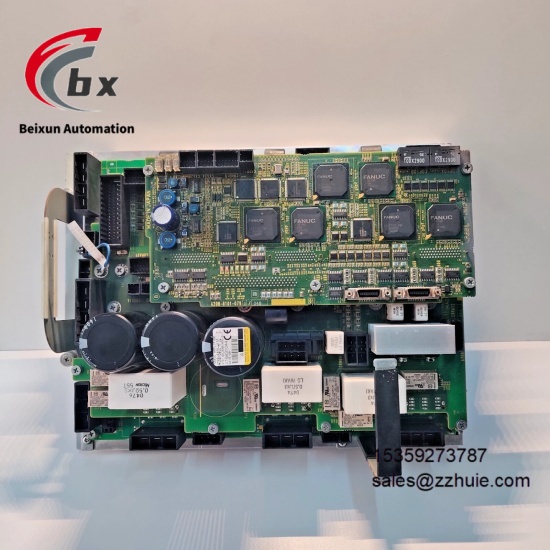

FANUC A06B-6400-H102 Servo amplifier (servo driver)

Specific Parameters

BrandFANUC, Product Series FANUC A06B-6400 Series

Product Type Servo Amplifier, Servo Drive, Industrial Control Module, FANUC Original Spare Part

Model FANUC A06B-6400-H102

Country of Origin Japan (Produced by FANUC original factory)

Compatible Devices FANUC Full-Series CNC Systems, Servo Motors, CNC Machine Tools, Industrial Robots, Semiconductor Equipment, Automated Production Lines

Core Functions Servo Motor Drive Control, Position/Speed/Torque Three-Loop Control, Command Signal Amplification, Fault Alarm, Dual Power Supply Redundant Switching

Control Method Full-Digital Sine Wave PWM Control, Supporting Semi-Closed Loop/Full-Closed Loop Switching

Input Voltage AC 200V/220V (±10%), 50/60Hz

Output Power 7.5kW (Continuous), 15kW (Peak)

Power Supply Design Dual Power Supply Redundant Input, Typical Power Supply DC24V, Supporting DC9-36V Wide Voltage Input

Power Consumption Less Than 4W

Encoder Feedback Supporting 160000 Pulses per Revolution High-Precision Encoder

Communication Interfaces FSSB High-Speed Serial Bus, Optional PROFIBUS/EtherCAT Interface

Alarm Output Relay Alarm Output, Supporting Fiber Optic Link Fault and Power Supply Fault Alarm

Protection Functions Overload Protection, Short-Circuit Protection, Vibration Suppression, Adaptive Filtering, DC1500V Voltage Isolation, Reverse Connection Protection

Operating Temperature Range 0℃ to 40℃ (Ambient Temperature), -20℃ to 70℃ (Short-Term Tolerance)

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP67 (Optional), Basic Protection Class IP30

Physical Dimensions 132mm×105mm×52mm (Basic Specification); 250mm×300mm×180mm (Complete Assembly Specification)

Physical Weight Approximately 8.5kg

Mounting Method Standard Industrial Mounting, Compatible with Conventional Industrial Control Cabinets

Signal Indication Equipped with Power Status LED Indicator (Green for Normal, Red for Fault), Alarm Code Display

Product Material Industrial-Grade Reinforced Metal Enclosure, High-Temperature Resistant Insulation Material

Customizable No

Certification Standards Complies with CE, UL, ISO 9001, EMC Relevant Certification Standards

Warranty Period 12 Months

Product Performance

FANUC A06B-6400-H102 is an original FANUC device with strong adaptability, which can be seamlessly integrated into FANUC full-series CNC systems and servo motors, perfectly compatible with various CNC machine tools and industrial robots, with convenient installation and maintenance. The modular design facilitates later troubleshooting and component replacement, and is equipped with a clear alarm code display and LED status indicator to quickly locate fault points. The product has extremely high control accuracy, adopts full-digital sine wave PWM control technology and high-precision encoder feedback, realizes position, speed and torque three-loop control, can accurately respond to CNC system commands, and ensures the positioning accuracy and repeat positioning accuracy of equipment. The product has outstanding reliability, the dual power supply redundant input design can ensure the normal operation of the equipment when a single power supply fails, and it has complete built-in protection functions, which can effectively resist abnormalities such as overload, short circuit and reverse connection. The optional IP67 protection level can adapt to harsh industrial environments such as dust and humidity. The product has strong anti-electromagnetic interference ability, stable operation and fast response speed, which can meet the high-speed and high-precision motion control needs of high-end automation equipment, and greatly improve production efficiency and product processing quality.
