Extreme STK-RPS-150PS P0973BP Redundant power module

Extreme STK-RPS-150PS P0973BP Redundant power module

Specific Parameters​

Core and Function Parameters​

Product Type 150W Redundant Power Supply Module​

Manufacturer Extreme Networks (formerly Enterasys)​

Model STK-RPS-150PS, Part Number P0973BP​

Package Type Plug-in Module​

Deployment Method Standalone, 2-slot/8-slot Rack-mount Chassis Installation​

Applicable Devices X440-G2 Series, X450-G2 Series, X620 Series and other non-PoE switches​

Protection Functions Over-voltage Protection, Under-voltage Protection, Over-current Protection, Short-circuit Protection​

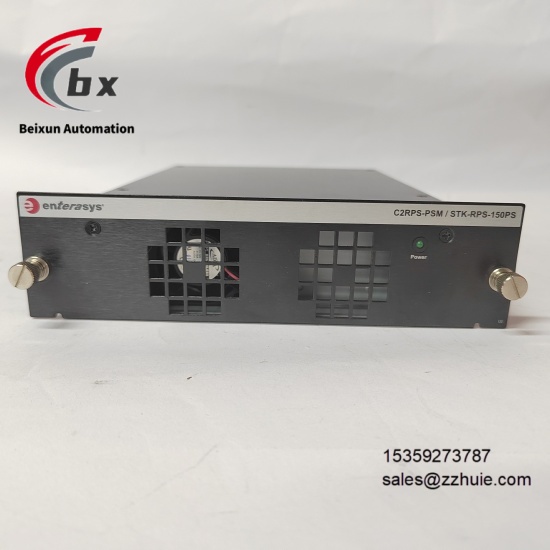

Status Indication Power Status LED (solid green indicates normal AC input)​

Certifications CO, CQ Certifications​

Country of Origin USA​

Electrical Parameters​

Input Voltage 100-240V AC​

Input Frequency 50-60Hz​

Output Power 150W (typical), 156W (maximum)​

Output Voltage 12V DC​

Output Current 3 +12V output rails, 13A, 8.5A, 1A respectively​

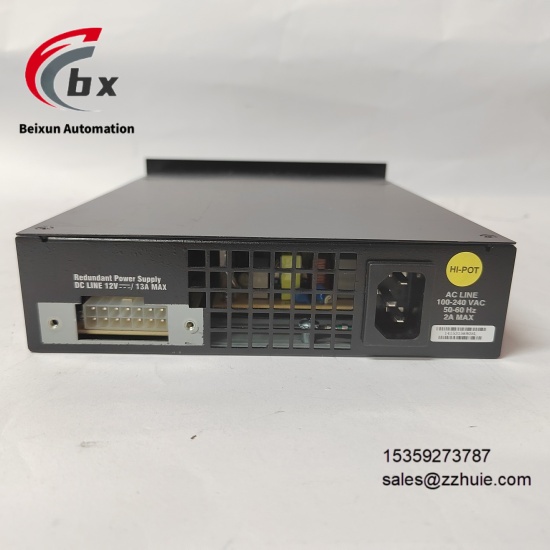

Output Interface 14-pin Redundant Power Connector​

Physical and Environmental Parameters​

Overall Dimensions 50mm×176mm×113mm (W×D×H)​

Weight 0.68kg (1.5lb), approx. 3.85lb (with packaging)​

Operating Temperature Range 0°C to 50°C​

Storage Temperature Range -40°C to 70°C​

Mean Time Between Failures (MTBF) 300000 hours​

Product Performance​

Stable output power up to 150W with 3 independent +12V output rails, meeting multi-component power supply needs of switches​

Wide-range 100-240V AC input, adapting to power grid standards in different regions worldwide with strong compatibility​

Equipped with four circuit protection mechanisms, effectively preventing damage to switches caused by power abnormalities with high safety​

Supports both standalone and rack-mount deployment methods, adapting to diverse installation scenarios in computer rooms and industrial sites​

Status LED provides real-time feedback on power supply status, enabling quick fault location and high operation efficiency​

Deeply compatible with multiple series of Extreme switches, plug-and-play without complex configuration for convenient deployment​

MTBF up to 300000 hours with excellent operational reliability, reducing network outage risks caused by power failures​
