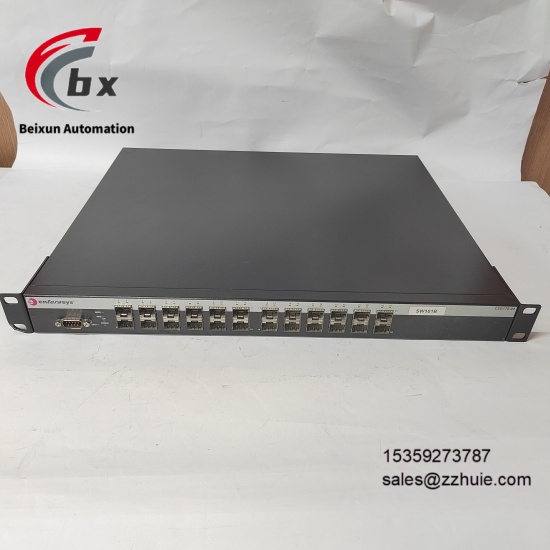

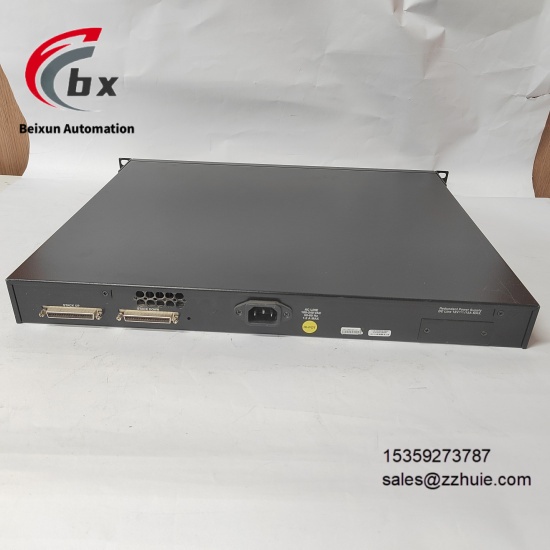

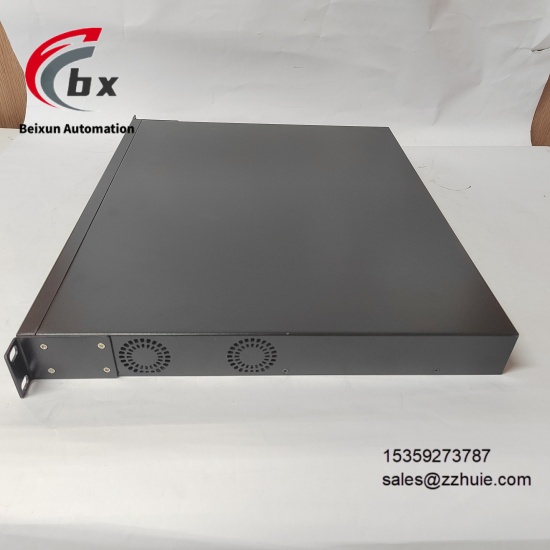

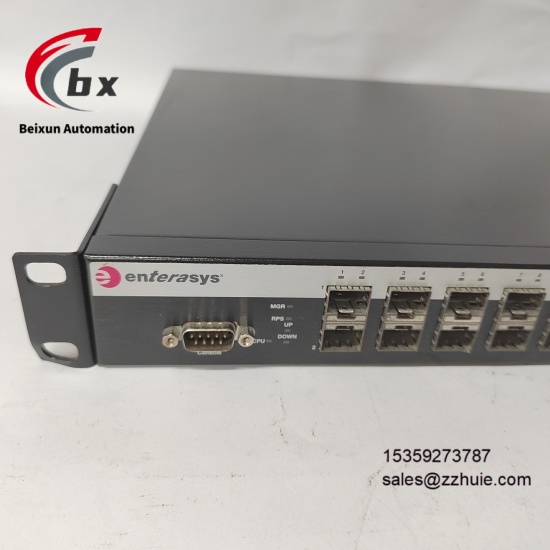

Extreme C2G170-24 P0973BL Gigabit Ethernet switch

Extreme C2G170-24 P0973BL Gigabit Ethernet switch

Specific Parameters​

Core and Function Parameters​

Module Type Enterprise/Industrial-class Stackable L3 Managed Gigabit Ethernet Switch​

Series Extreme Networks C2 Series​

Form Factor 1U Rack-mountable​

Supported Protocols IEEE 802.3 Series, IPv4, IPv6, RIP-1, RIP-2, OSPFv2, IGMPv2, PIM-SM, PIM-DM, VRRP​

Management Methods Web GUI, CLI, SNMP (v1/v2/v3), Telnet, RMON, HTTP​

Stacking Capability Supports SecureStack technology, 2 stacking ports​

Security Features ACL, Radius Authentication, SSH v2 Encryption, SSL Encryption​

Special Functions DHCP Support, BootP Support, ARP Support, VLAN Support, Auto-negotiation, Auto MDI/MDI-X, WRR Queuing​

Protection Rating IP40 Dust Protection​

Management Port 1 x RS-232 (DB-9) Console Port​

Port and Performance Parameters​

Port Configuration 24 x Gigabit Ethernet Ports, 4 x Gigabit Combo Ports, 2 x Stacking Ports​

Port Speed Gigabit (1000Mbps), Auto-negotiation Supported​

Switching Capacity 48Gbps​

Forwarding Rate 35.7Mpps​

Frame Buffer 4Mbit​

Transmission Latency ＜10µs​

MAC Address Table Capacity 16000 Entries​

Maximum Bandwidth 24Gbps​

Data Rate Up to 10Gbps​

Electrical and Environmental Parameters​

Power Supply AC 120/230V (50/60Hz), Redundant Power Supply (RPS) Supported​

Per-port Power Consumption ＜20W​

Total Power Consumption 25W​

Operating Temperature Range -10°C to 55°C​

Storage Temperature Range -40°C to 70°C​

Relative Humidity 10% to 90% (Non-condensing)​

Overall Dimensions 440mm×250mm×44mm (W×D×H)​

Weight 3.5kg​

Compliance Standards VCCI, EN 60950, EN 61000-3-2, EN 55022, UL 60950, CSA 22.2 No. 60950​

Product Performance​

Switching capacity 48Gbps and forwarding rate 35.7Mpps ensuring wire-speed data transmission​

Transmission latency ＜10µs adapting to latency-sensitive business scenarios​

24 gigabit ports with 4 combo ports meeting high-density access needs​

16000-entry MAC address table supporting multi-device concurrent access​

IPv4/IPv6 dual stack support adapting to network upgrade requirements​

Redundant power supply design and IP40 protection ensuring high operational reliability​

Wide temperature operating range -10°C to 55°C suiting harsh industrial environments​

Combination of multi-method management and security mechanisms balancing operation efficiency and network security​
